AgileX

AgileX PiKA

$3,000.00 USD

Sale Sold out

Taxes, US duties (if applicable), and shipping calculated at checkout.

Options PiKA Bundle (3 Items x1) PiKA Sense Only PiKA Gripper Only PiKA Station Only

Quantity

OVERVIEW

The AgileX PiKA Series is a user-friendly, portable robotics gripping and data collection system designed for researchers, robotics labs, and AI development teams working on manipulation, teleoperation, and embodied AI.

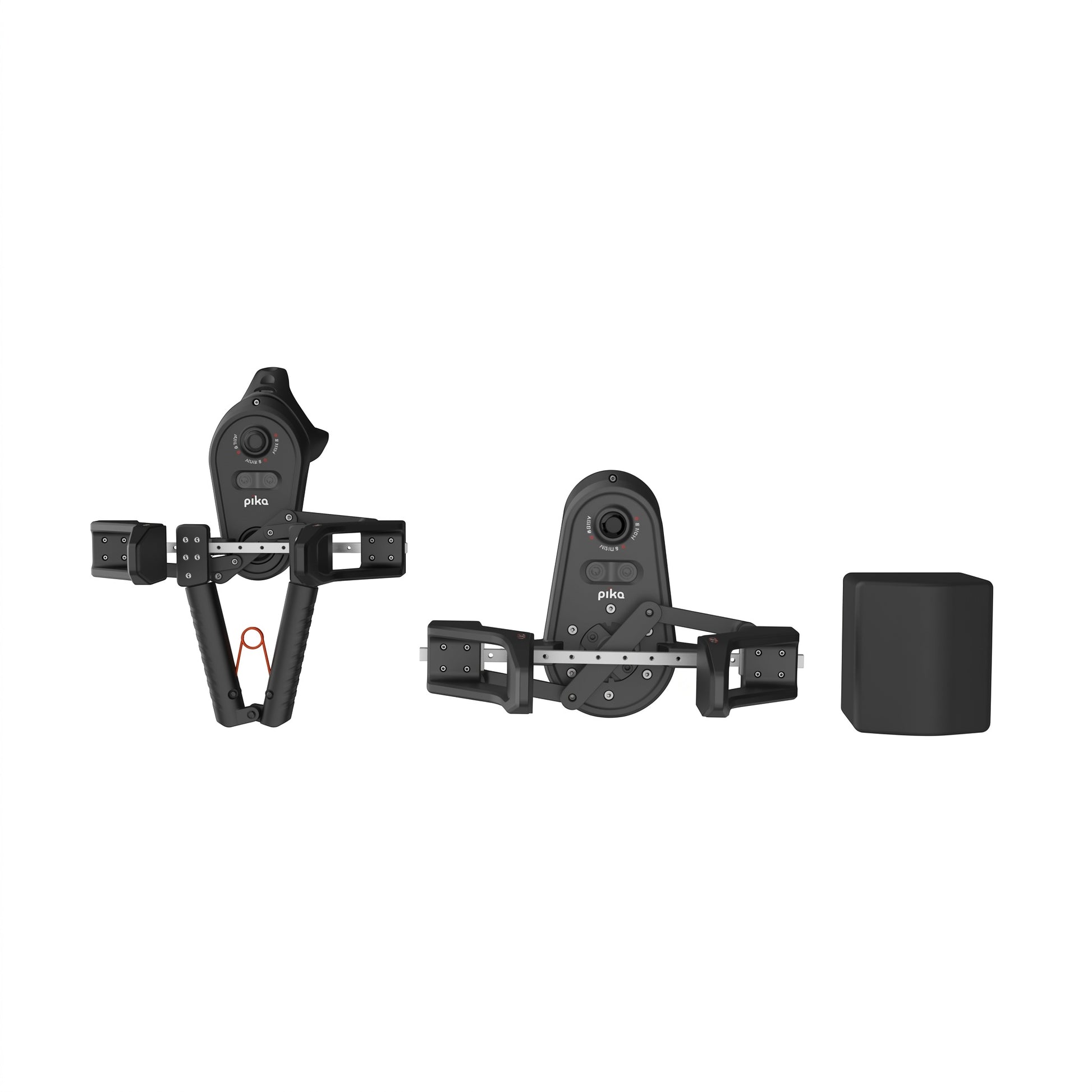

Built by AgileX Robotics, PiKA is a lightweight ecosystem that captures real-time synchronized 6D pose, RGB, depth, and IMU data without the need for complex calibration or dedicated lab infrastructure. It consists of three complementary components:

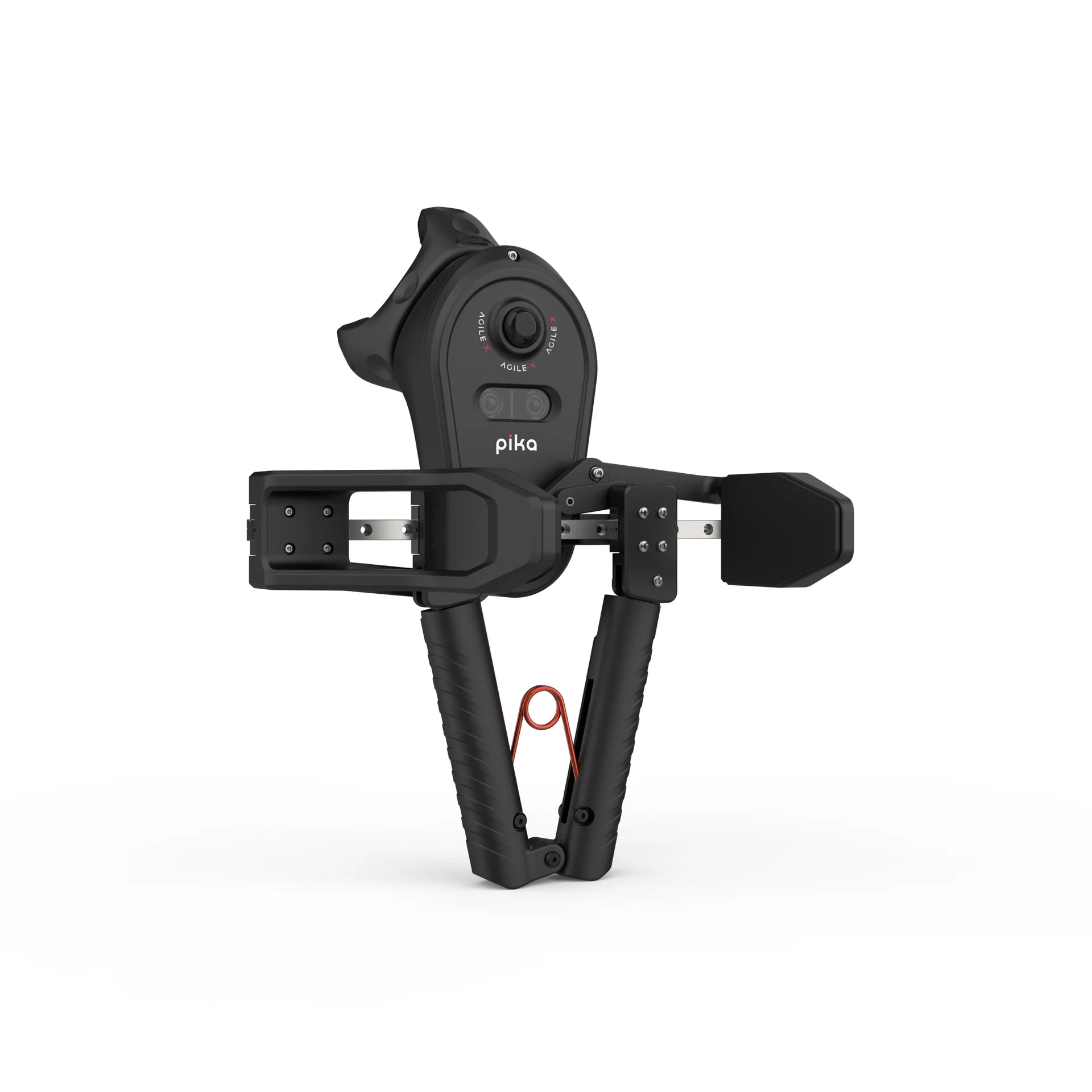

PiKA Sense: A handheld data collector that allows researchers to demonstrate grasping and manipulation tasks naturally by hand.

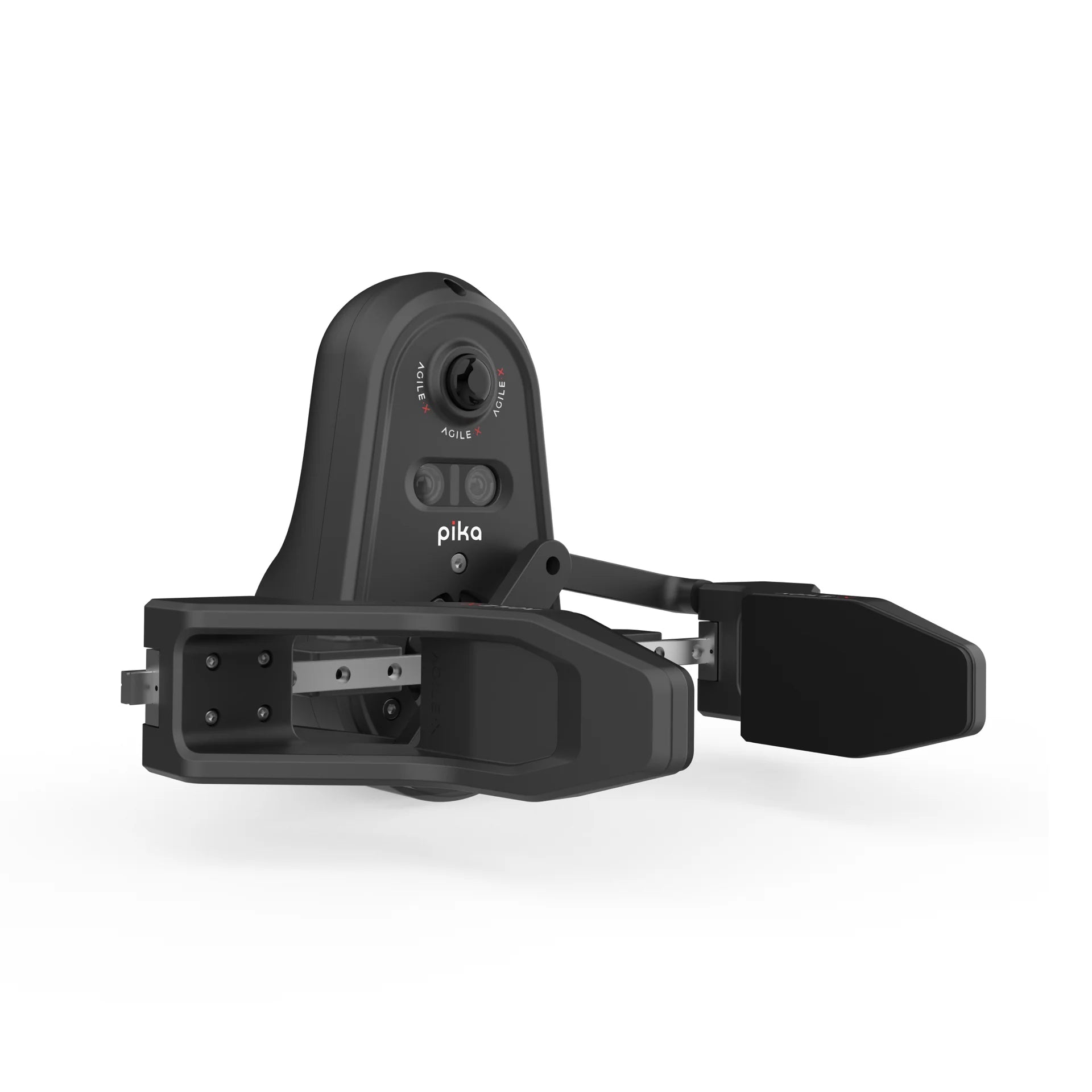

PiKA Gripper: A robot-mountable end effector that mimics the PiKA Sense sensor suite and provides a smooth transition from human demonstration to robotic execution.

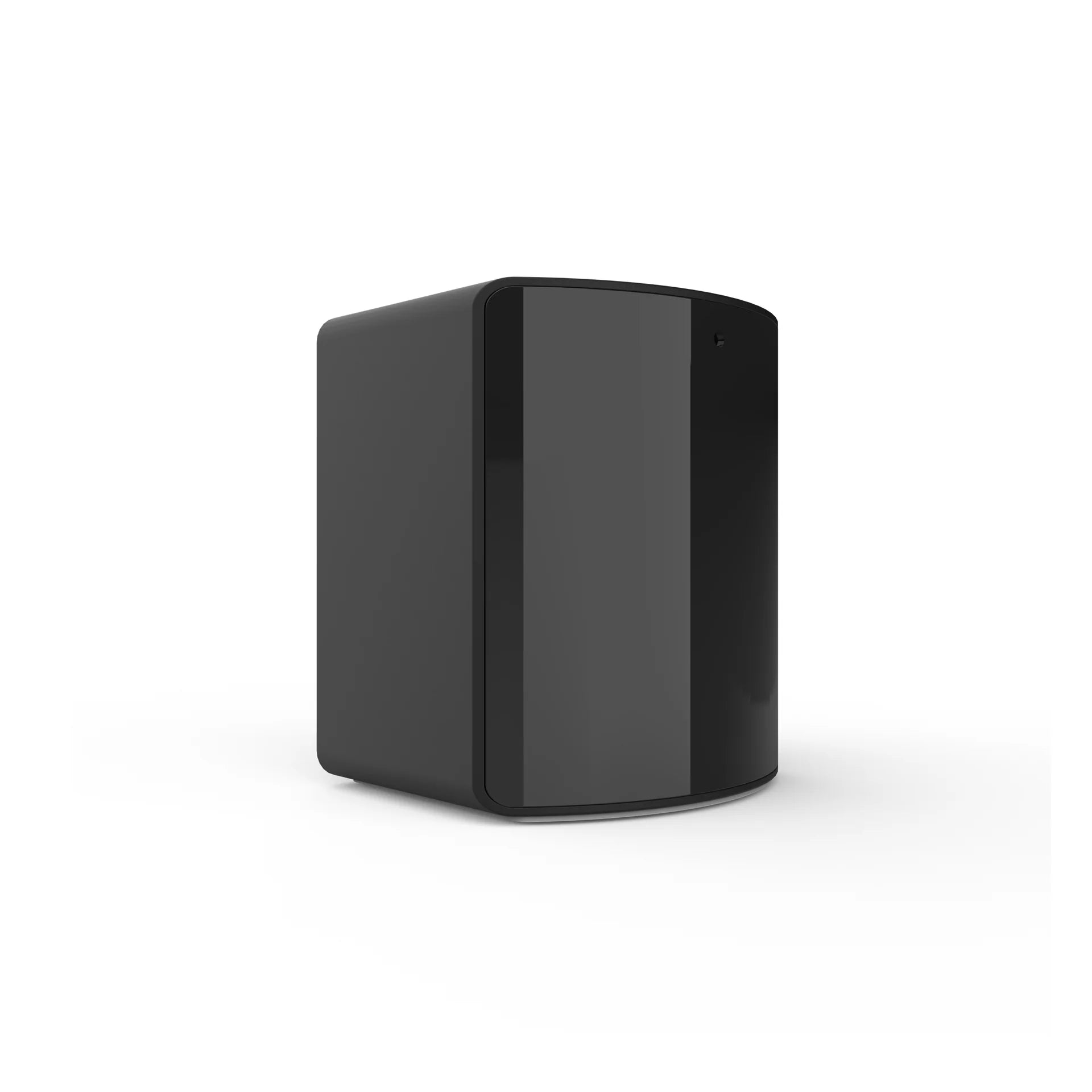

PiKA Station: A high-precision spatial reference that ensures every capture session is accurate and repeatable in the lab or out in the field.

PIKA IS SUITABLE FOR:

Datasets for imitation learning
Human-robot interaction research
Research on manipulation
Quick prototyping of robot arm workflows

FEATURES

Rapid, Calibration-Free Setup: Fast activation allows the system to go from power-on to active data collection in moments with no complicated configuration needed.
Multimodal Sensor Fusion: Each PiKA Sense and Gripper unit combines RGB images, depth sensing, and IMU data into one synchronized capture stream.
Millimeter-Level Positioning Precision: The PiKA Station and PiKA Sense/Gripper sensor suite combine to offer ±1.5 mm spatial positioning accuracy, delivering reliable and repeatable results from session to session.
Seamless Hand-to-Robot Transfer: The identical sensor architecture in PiKA Sense and PiKA Gripper allows data from a human hand to be directly translated into robotic action, perfect for imitation learning and teleoperation workflows.
Lightweight and Field-Ready: The compact, ergonomic hardware makes it easy to transport and deploy the PiKA Series both in the indoor lab and out in the field.
Robot-Arm Compatibility: The PiKA Gripper can be attached to most common robotic arm interfaces (not limited to AgileX products, and fully compatible with arms like the PiPER 6-DOF and NERO 7-DOF).
1-Year InDro Warranty & Support

SPECIFICATIONS - PiKA SENSE

Dimensions	215 × 220 × 257 mm
Weight	550 g
Form Factor	Lightweight, ergonomic handheld unit
Sensors	RGB imagery, depth camera, IMU
Positioning Accuracy	±1.5 mm
Use Case	Handheld manual data collection
Connectivity	Type-C interface
Software Compatibility	ROS1, ROS2, URDF

SPECIFICATIONS - PiKA GRIPPER

Dimensions	215 × 191 × 143 mm
Weight	690 g
Gripper Type	Two-finger end effector
Jaw Range	0 to 95 mm
Max Gripping Force	2 kg
Depth Camera	FOV 87° × 58°, ~90 FPS, ±2% accuracy at 50 cm
Wide-Angle Camera	200° diagonal FOV, ~90 FPS
IMU	9-axis, 100 Hz
Mounting	Standard robotic arm flange interface (e.g., PiPER 6-DOF arm)
Software Compatibility	ROS1, ROS2, URDF

SPECIFICATIONS - PiKA STATION

Function	High-precision positioning base
Field of View	Horizontal 110° × Vertical 150°
Tripod Height	Adjustable up to 2.1 m, tilt-adjustable
Battery Life	Up to 30 hours
Onboard Storage	Up to 1 TB
Communication	Wireless pairing via USB receiver
