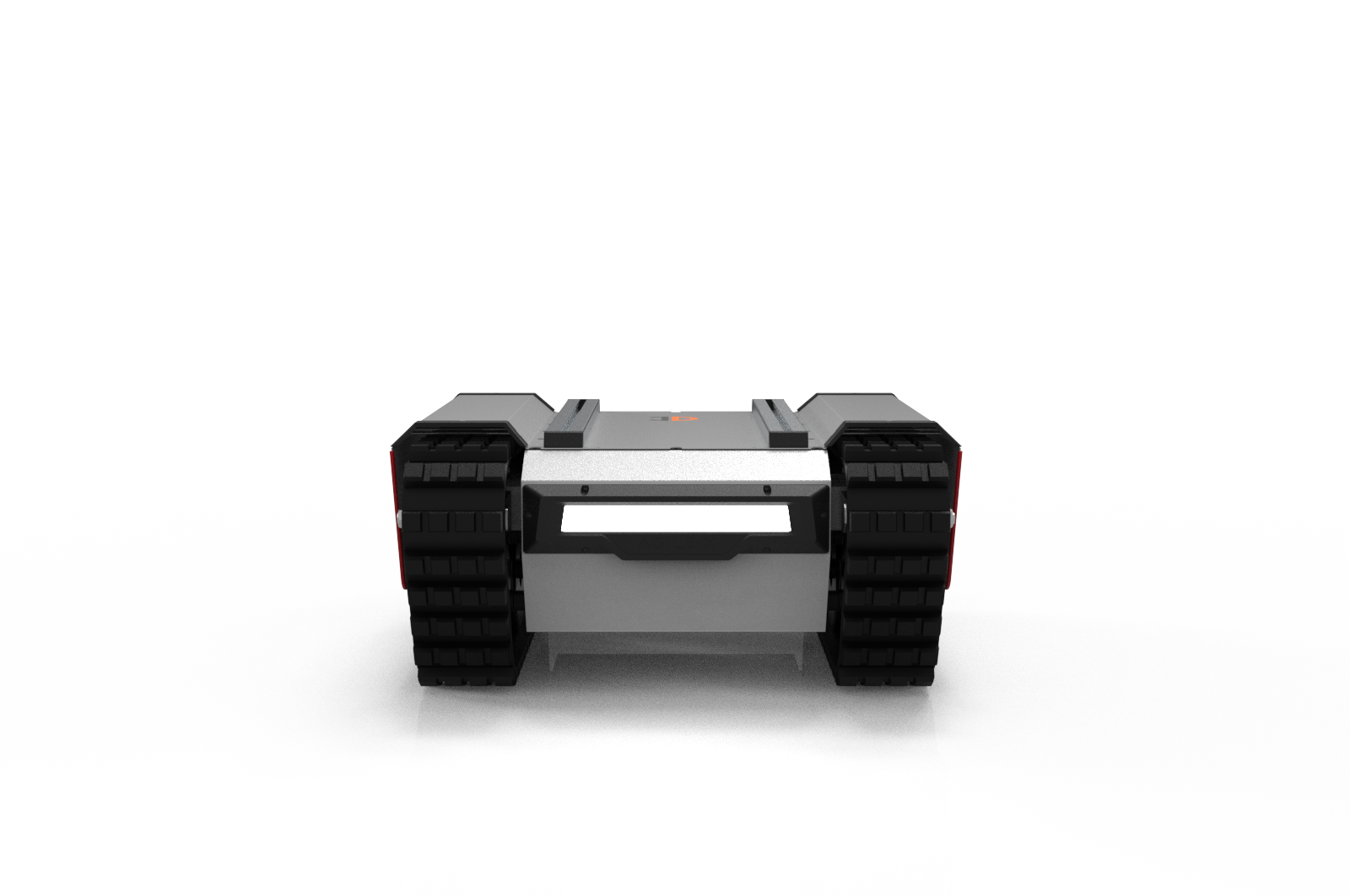

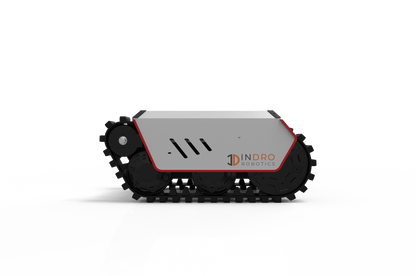

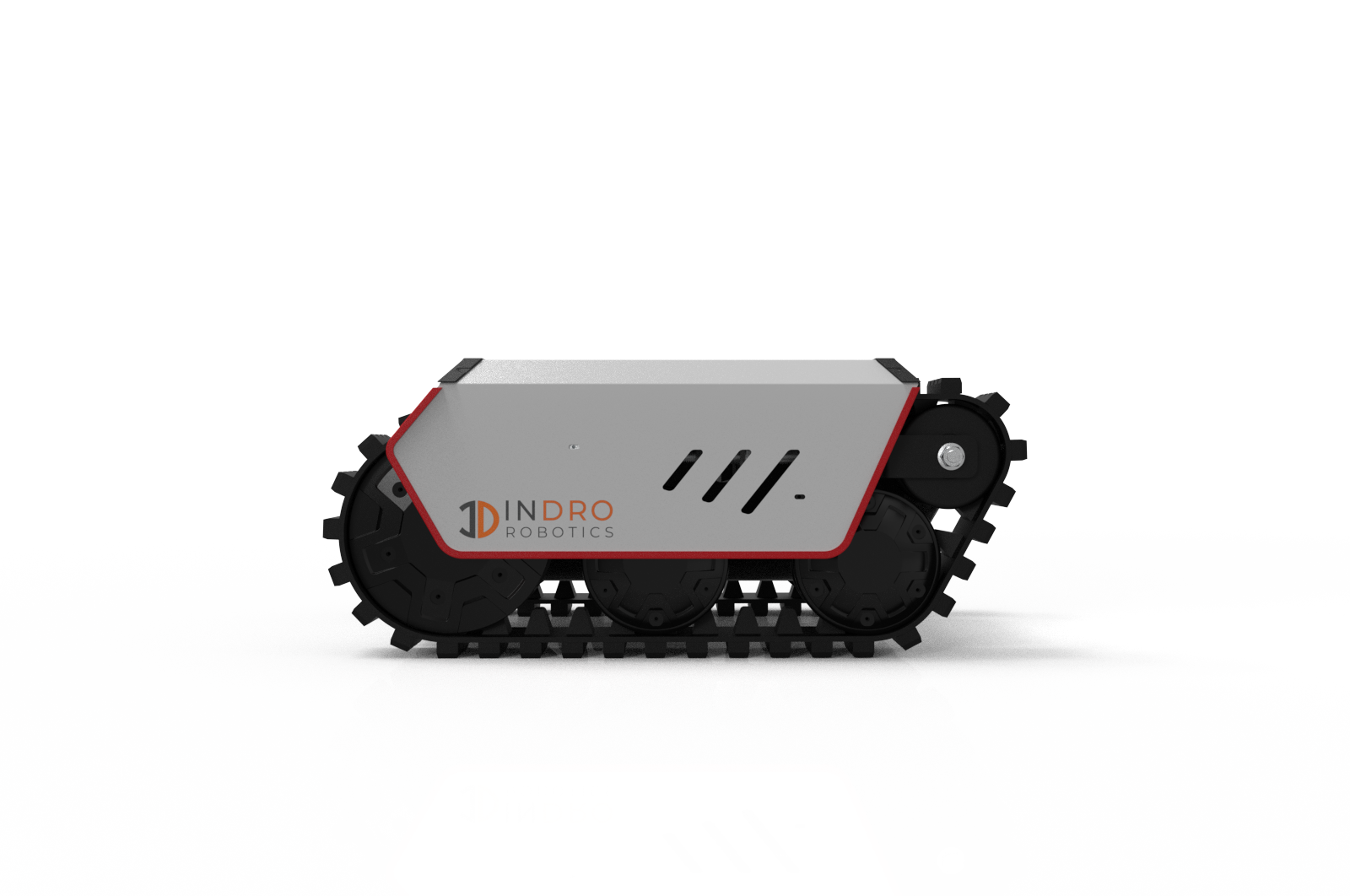

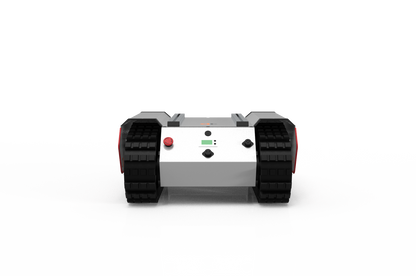

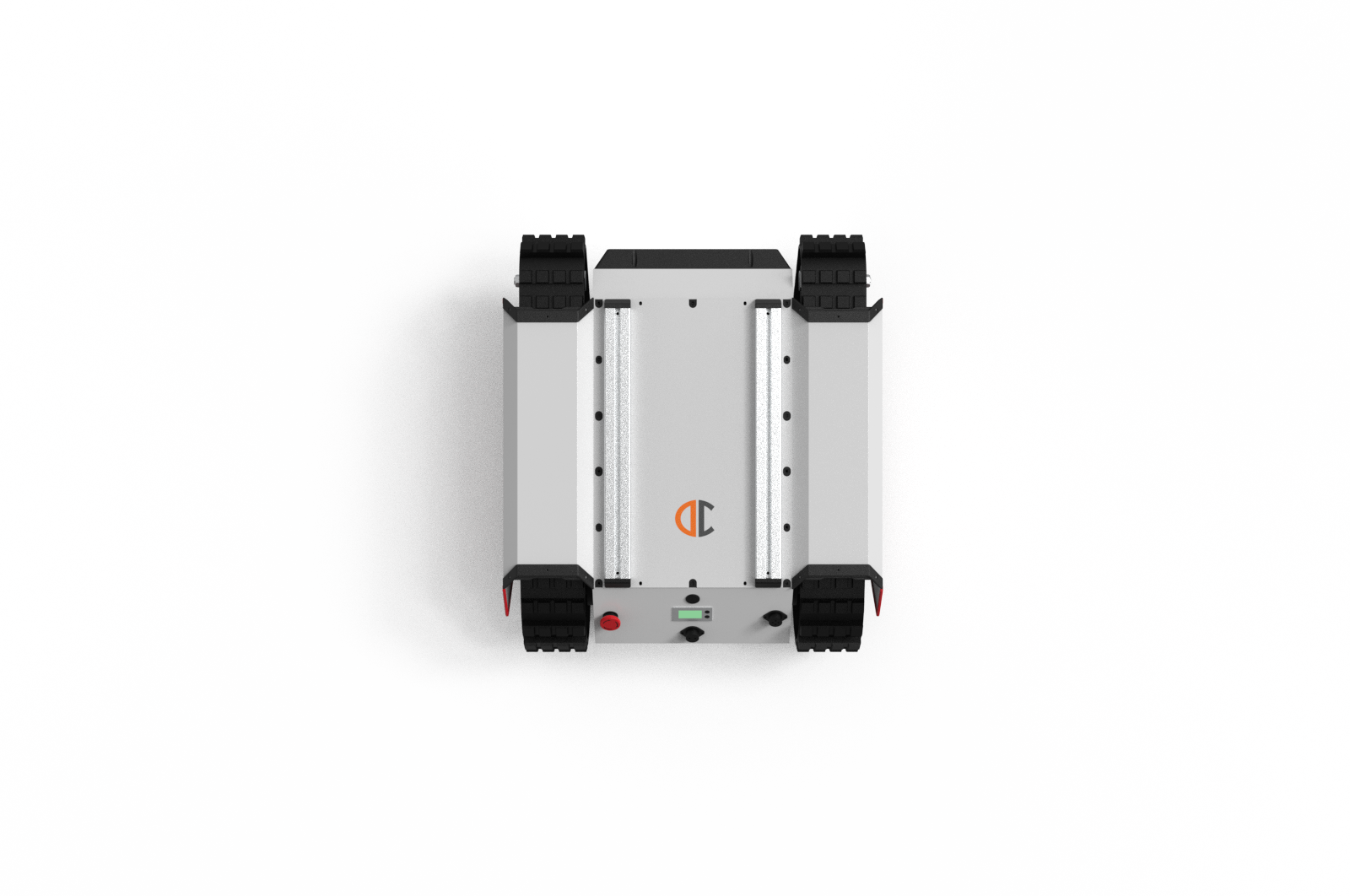

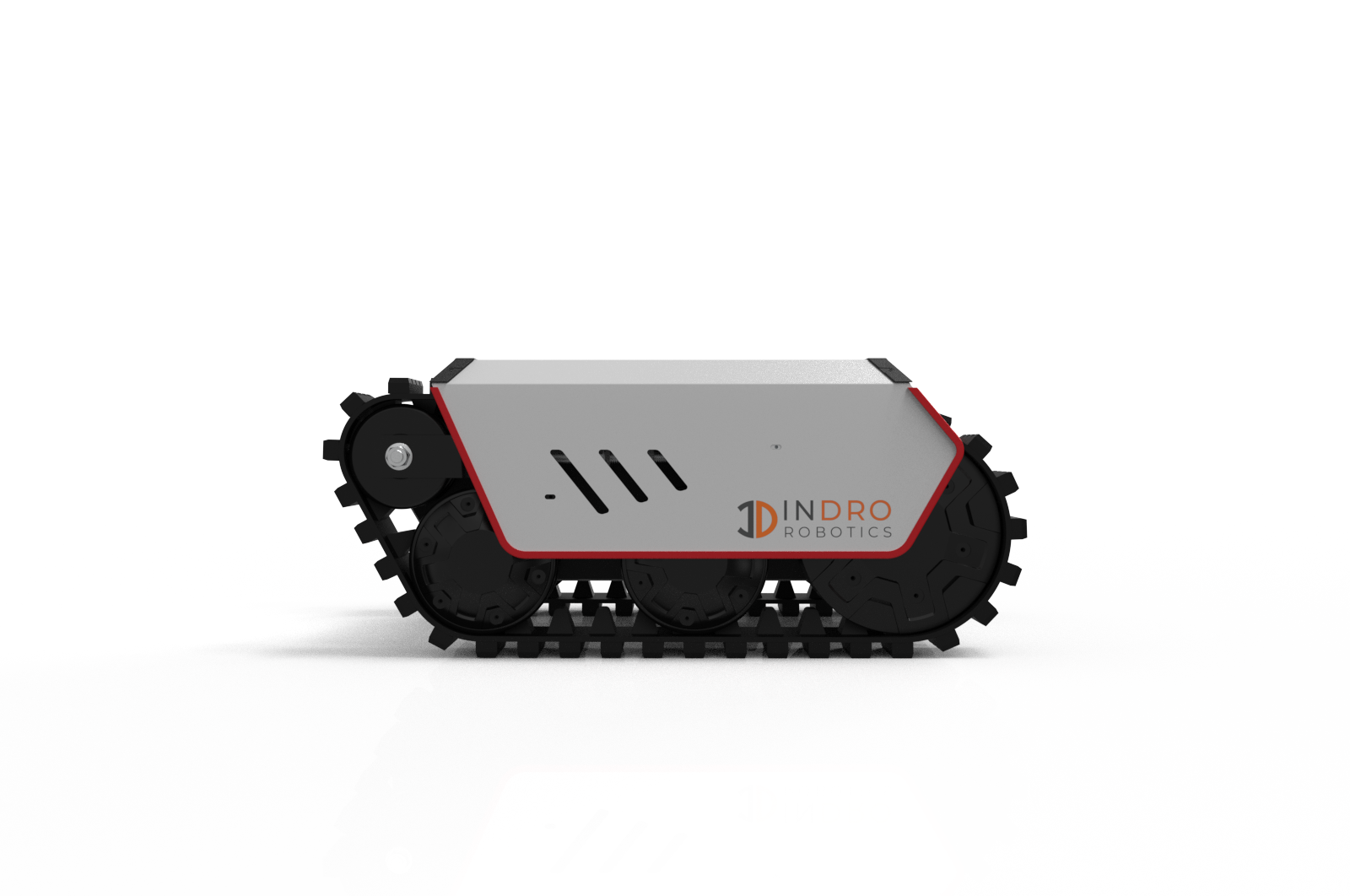

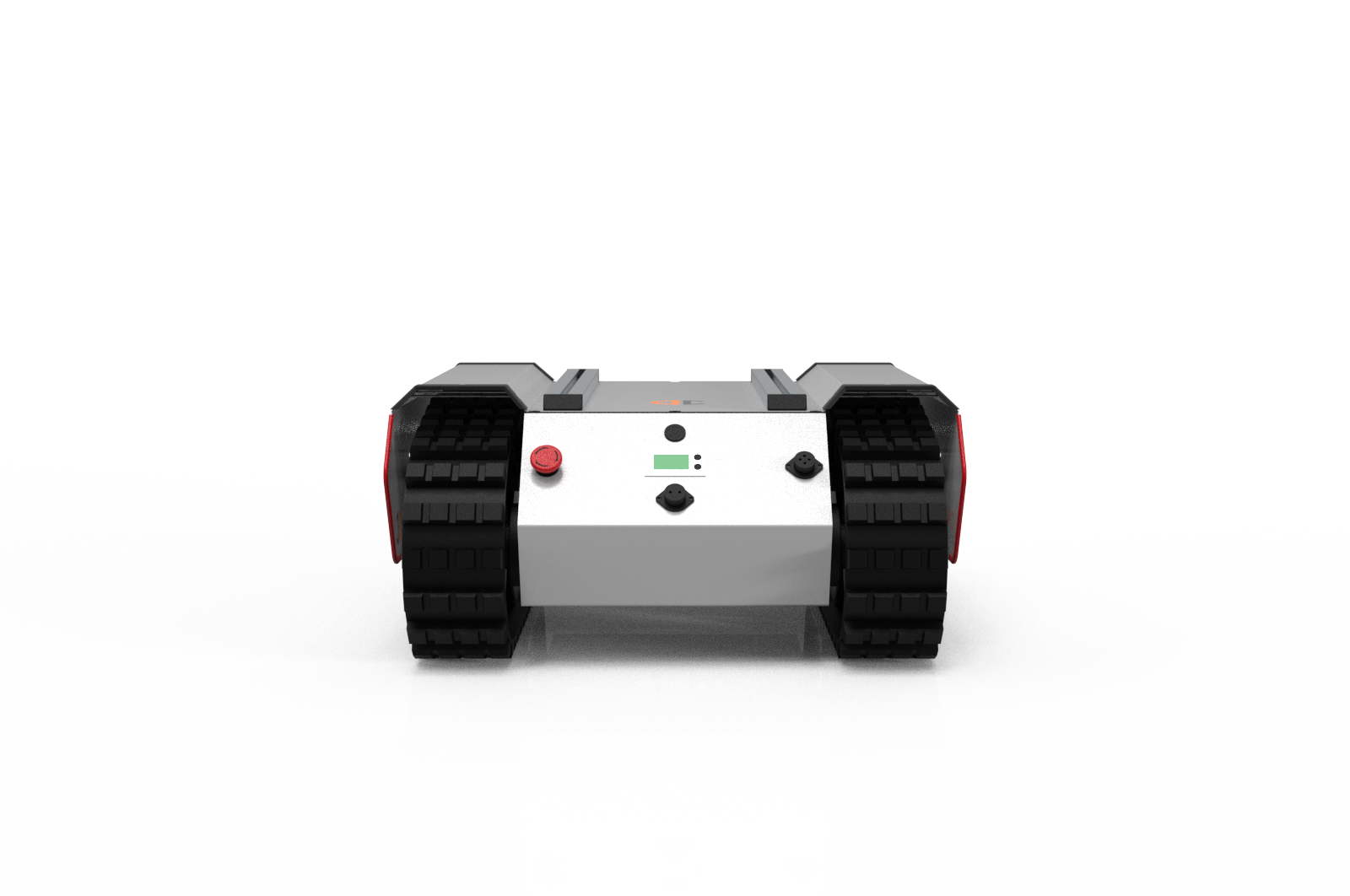

Bunker Mini
Bunker Mini
OVERVIEW

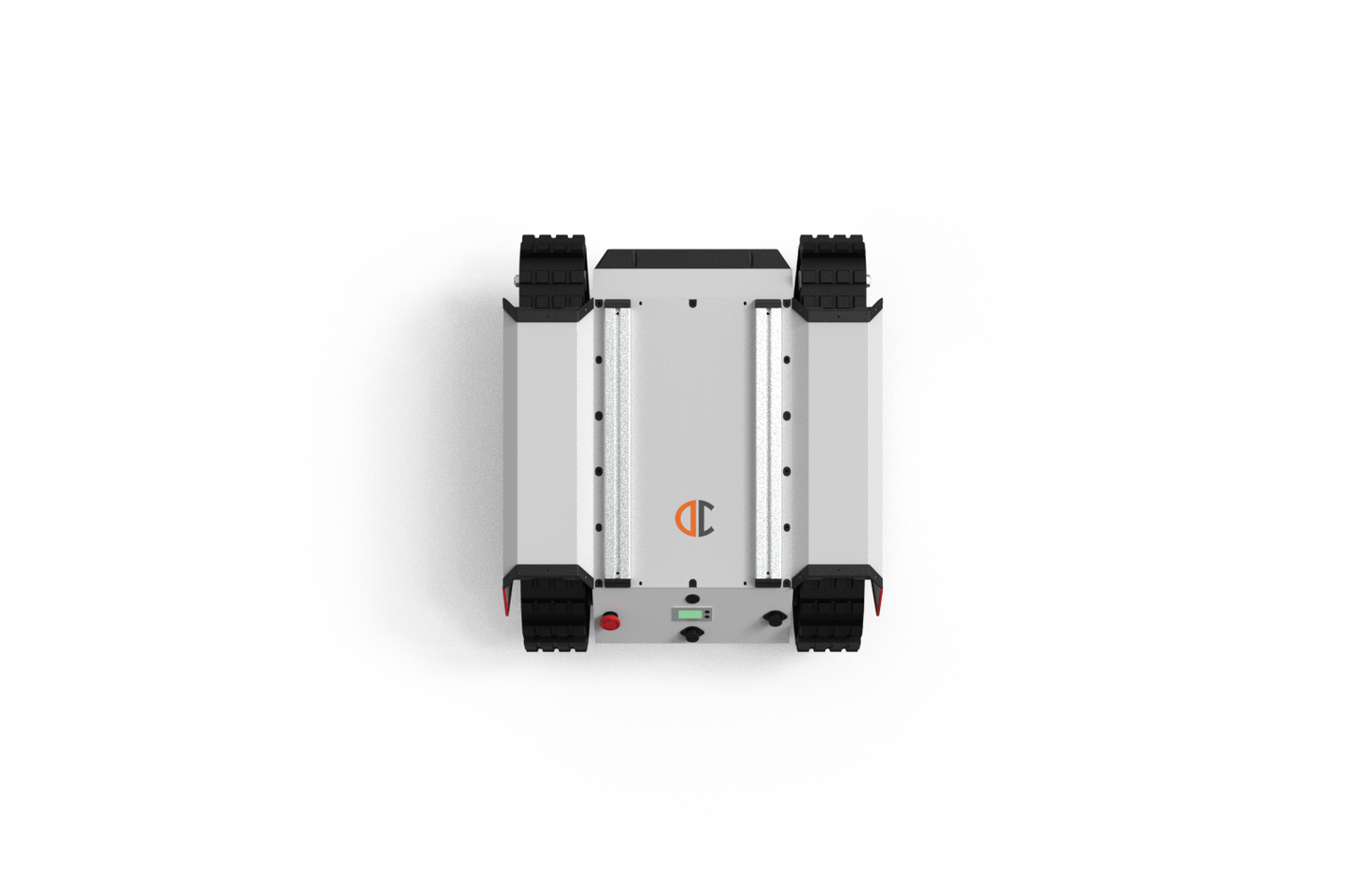

The AgileX Bunker Mini is a small UGV for off road, challenging and narrow working environments. It can effectively prevent the ingress of sand, dust and water.
FEATURES
Off-Road Performance: Bunker Mini can effectively prevent the ingress of sand, dust and water so it’s perfect challenging environments. This small UGV has outstanding off-road performance in small spaces both indoor and outdoor.
Small Space Operation: The compact size of Bunker Mini makes it more agile and maneuverable than larger ones, allowing it to navigate tight spaces and perform tasks in confined environments.
Adaptable and Scalable: Small UGVs can be easily replicated and deployed in multiples to scale up operations as needed. They can work together in coordinated ways, allowing for increased efficiency and productivity. This scalability makes them adaptable to changing requirements and enables flexible automation solutions.
TECHNICAL SPECIFICATIONS
| Dimensions | 660L x 281W x 584H mm |
| IEC Ingress Rating | IP67 |
| Weight | 55kg |
| Track Width | 100mm |
| Payload Capacity | 25kg |
| Top Speed | 5.4km/h |
| Runtime | Coming Soon |
| Charging Time | 4 Hours |
| Operational Temperature Range | -20°C-60° |
| Max Climbing Grade | 30° (no payload) |
| Obstacle Clearance | 115mm |
| Wheel Encoder | 1024 Line Magnetic Encoder |
| Battery | 48V 30Ah Lithium |
| Communication Interface | CAN Bus |
