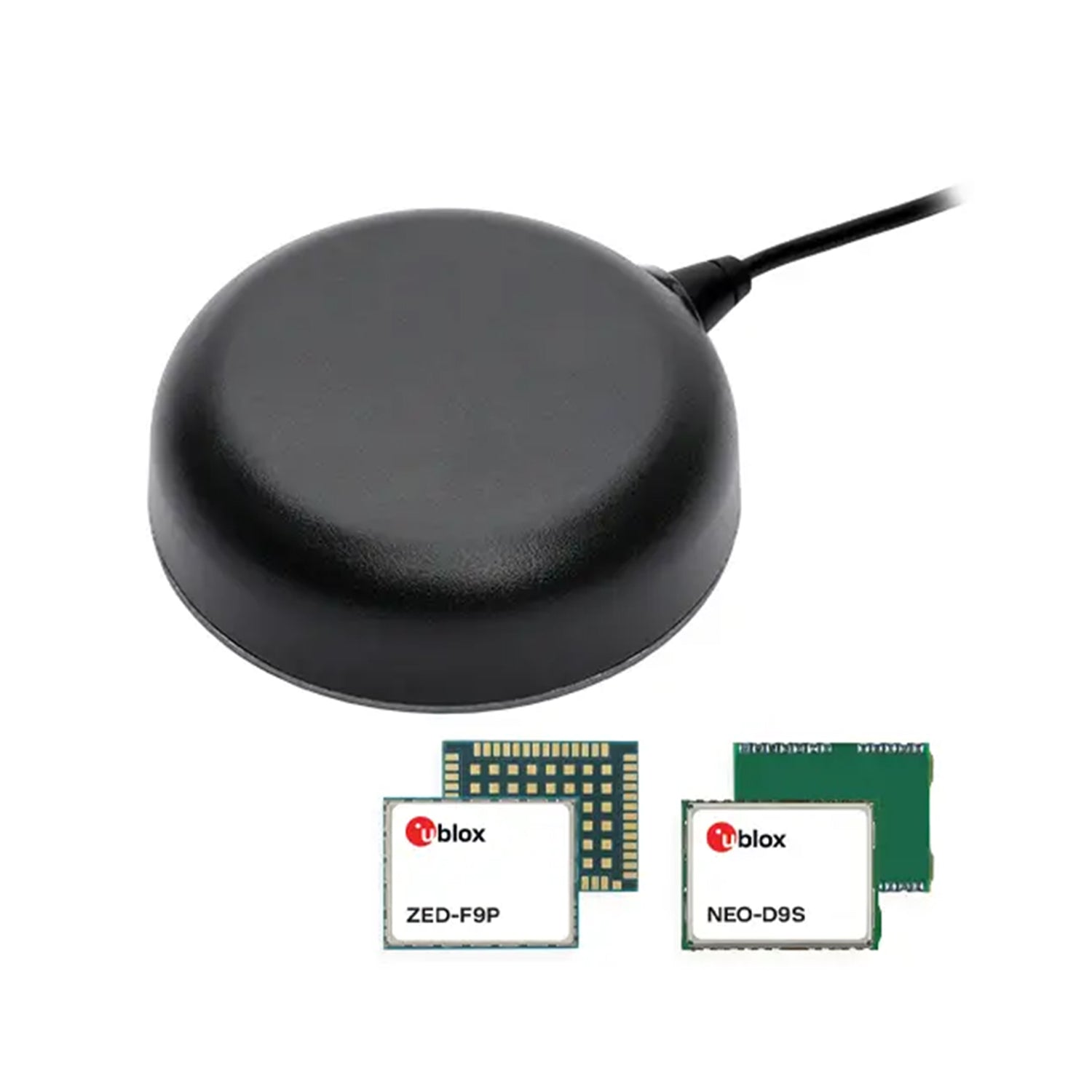

Calian TW5794 Smart GNSS Antenna

Calian TW5794 Smart GNSS Antenna

$500.00 USD
$500.00 USD
Sale Sold out
Model

OVERVIEW


The TW5794 is a multi-band (L1/L2), multi-constellation integrated GNSS receiver/antenna with integrated L-Band receiver for PointPerfect Flex PPP-RTK corrections. The TW5794 is capable of providing sub 1 meter accuracy stand alone, sub 6 cm accuracy with PPP-RTK corrections and sub 1 cm with RTK corrections to support the most demanding navigation, automation and precision mobility applications.

TW5794 is compatible with commercial RTK services such as Point One Navigation's Polaris RTK and Swift Navigation's Skylark Cx and Nx RTK services. Two TW5794’s may be combined as a Moving Base RTK Precise Heading base/rover pair.

Interference Resilience

The TW5794 incorporates a latest generation multi-band (L1/L2) GNSS receiver with a Tallysman Accutenna® multi-band (L1/L2/L-Band) triple band dual feed patch. The state of the art GNSS receiver supports concurrent tracking of all four major constellations (GPS, BeiDou, Galileo and GLONASS ) in multiple frequency bands. The multi-band (L1/L2) architecture is highly effective method for the removal of ionospheric error. The TW5794 employs multi-stage filtering with low noise figure LNAs, combined with the dual feed Accutenna®, which greatly improves the rejection of multi-path signal interference.

Precise Point Positioning

The TW5794 offers support for a broad range of corrections services (RTCM RTK, networked PPP-RTK or PointPerfect Flex PPP-RTK over L-Band) allowing performance optimization according to each application’s unique requirements. The concurrent multi-band (L1/L2) access to all four satellite constellations improves the receiver’s convergence capability to deliver a quick, precise and reliable position solution which is resilient to ionospheric errors and improves resilience against interference and jamming.

The TW5794 may also be configured to operate in an RTK mode as either a base or rover for sub cm precision. For Precise Heading applications, two TW5794’s may be arranged as a moving base RTK base and rover pair. The base device may receive PPP-RTK corrections for increased positional accuracy while concurrently sending RTCM correction messages to the rover.

Features

  • An out-of-the-box, plug-and-play, precise positioning solution
  • Integrated L-Band corrections receiver for remote precision deployments
  • High position availability with XF™ filtering and expansive constellation
  • Multi-band GNSS receiver is resilient to ionospheric errors
  • Improved multi-path rejection with dual feed Accutenna™
  • Supports PointPerfect Flex PPP-RTK and traditional RTK configurations
  • Moving-Base RTK Precise Heading base/rover pair
  • Exceptional stand-alone position performance (without corrections)
  • Compatible with commercial RTK service such as Point One Navigation's Polaris RTK and Swift Navigation's Skylark Cx and Nx RTK services
  • Rugged magnetic surface mount
  • Industrial grade IP7 enclosure
  • USB 2.0 or RS-232 signalling options
  • Multiple cable lengths (RS-232: 5m, 15m and 25m; USB: 1.5m or 3m )
  • L1/L5 option available

Specifications

Part No.: 33-5794-19-yy-zz-PC0 (USB 2 Type A Male; Data: USB 2.0, PC0 = NMEA out, no adaptor cable.)

Part No. 33-5794-29-yy-zz-PC0 (RJ45; Data: RS-232, Timepulse RS-232, PC0 = NMEA out, no adaptor cable.)

yy = Radome (00=grey conical, 10-grey low profile, 01-white conical, 11=white low profile)

zz = RS-232 Cable length in meters. Standard is 5m. (15m and 25m are special order only).

USB: 0S: 1.5m (standard); 0L: 3m (Special order)

33-5794-19-yy-zz-PC0 SDK Test Adaptor required for programming Not Applicable

33-5794-29-yy-zz-PC0 SDK Test Adaptor required for programming 33-0095-16

InDro Robotics Store offers a wide range of Calian antennas. Please reach out to us for more details.
