Calian TW5794 Smart GNSS Antenna SDK

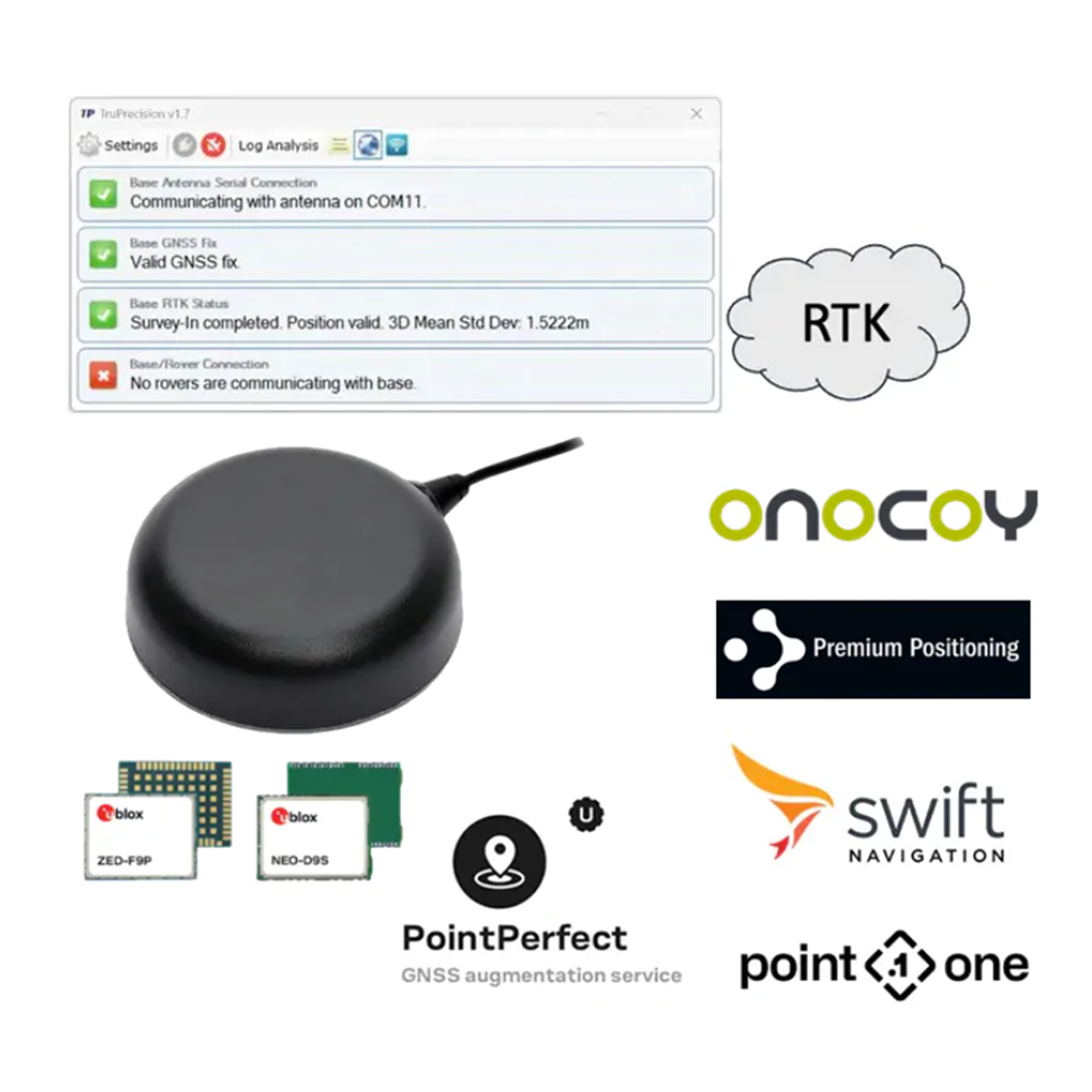

Tallysman’s TW5794 Smart GNSS Precise Heading Antenna is the Plug and Play solution to Precise Heading for Robotics.

Calian Smart GNSS SDK’s are a plug and play evaluation platform for Calian’s Smart Antennas, with tools such as: TruPrecision Software, short term complimentary augmentation subscription services and simple connection to a PC.

The TruPrecision SDK application provides an autonomous connection to stream PointPerfect Flex IP corrections and decryption keys to a TW5794 Smart Antenna via a USB connection, which also provides a Virtual COM Port to allow customers to connect their existing applications to the Tallysman TW5794 Smart GNSS Precise Heading Antenna high precision “corrected” position data output. The position data may be either NMEA or UBX formatted messages. ROS2® Drivers are available to integrate with ROS2® open framework projects.

The TW5794 SDK supports the TW5794 High Precision GNSS Smart Antenna with L-Band PPP-RTK and Precise Heading. TW5794 incorporates the u-Blox ZED-F9P GNSS receiver and NEO-D9S L-Band receiver.  It features:

Specifications

TW5794 SDK includes:

• Calian TW5794 Smart GNSS Precise Heading antenna with USB
• Calian TruPrecision Application for Software Development and Verification
• Complimentary u-blox PointPerfect Flex PPP-RTK service (60 day free trial)
• Complimentary Swift Navigation Cx Precision Positioning Service (6 months free trial)
• Complimentary Point One Navigation RTK (1 year free service)

Ordering Information:

33-TP5794SDK-1 (33-5794-19-10-0S – USB)
33-TP5794SDK-2 (33-5794-29-10-05 – RS-232 + Serial to USB Converter)
