Dobot Magician - Educational Version

Name: Dobot Magician - Educational Version
Brand: Dobot
Price: 1515.00 USD
Availability: InStock

$1,515.00 USD

Sale Sold out

Taxes, US duties (if applicable), and shipping calculated at checkout.

Quantity

OVERVIEW

The DOBOT Magician Educational Version is a compact, lightweight, and desktop-grade 4-axis educational robotic arm designed to bring industrial-level robotics into the classroom and maker space.

The DOBOT Magician robot arm comes with 5 different end-effectors:

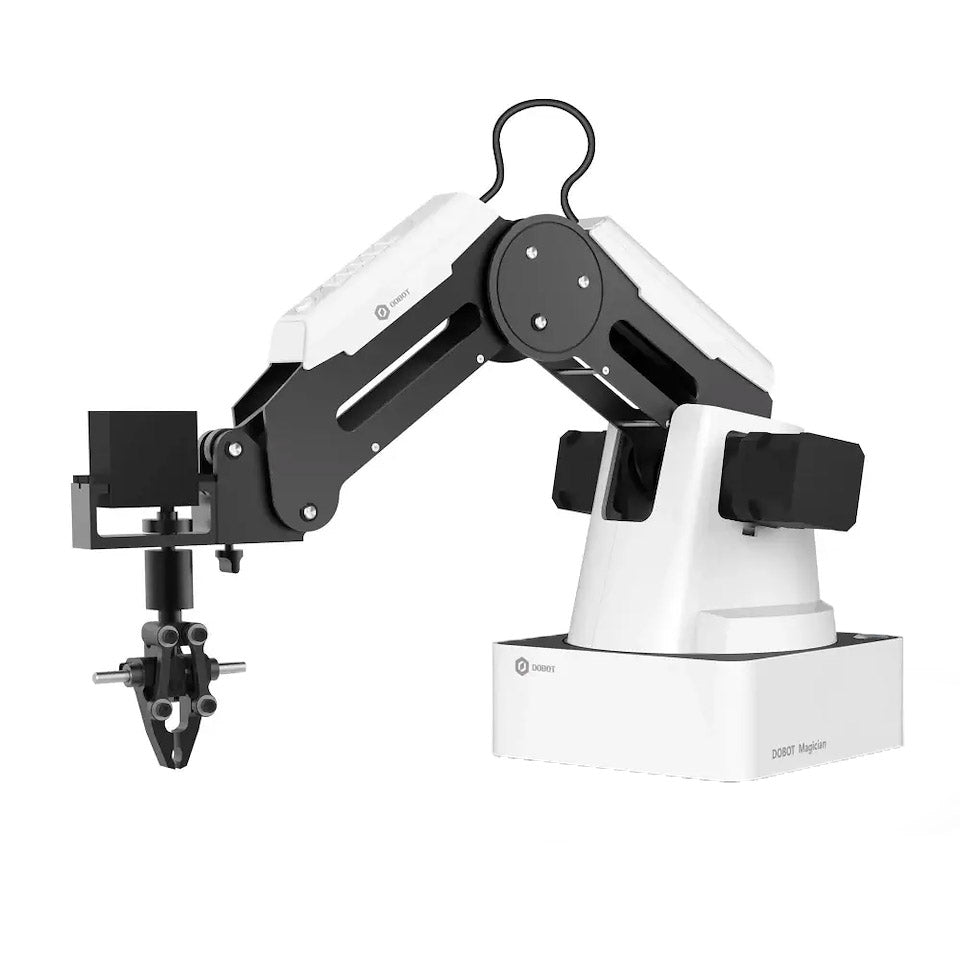

Gripper (pneumatic)

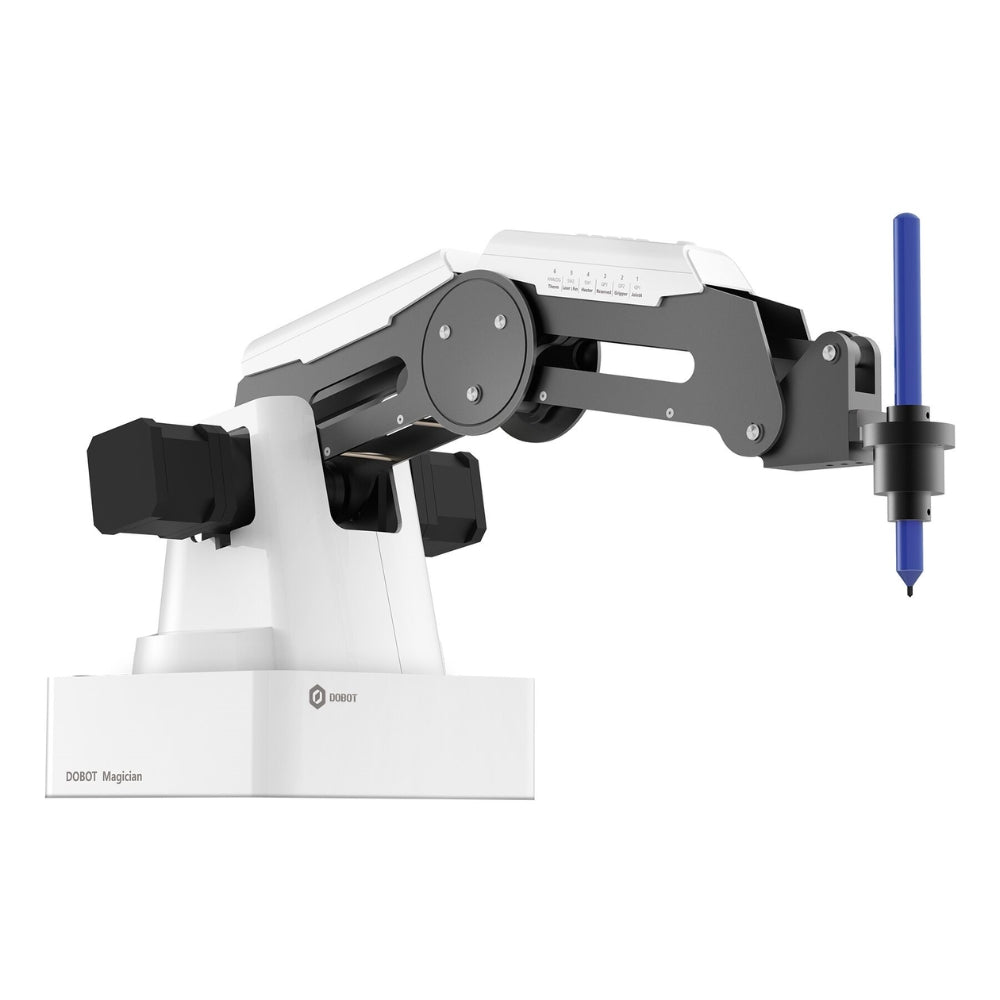

Pen holder (writing, calligraphy, & drawing)
3D printing head (extruder + hot end)
Laser engraving head
Suction cup (vacuum pump kit)

This full set of interchangeable end effectors and communication modules has turned the DOBOT Magician into a beginner robotic arm and an all-in-one solution for multi-discipline STEM teaching in gripping, writing and drawing, laser engraving, and 3D printing. All controllable through beginner-friendly graphical programming or more advanced Python scripting.

DOBOT MAGICIAN ROBOT ARM IS GREAT FOR:

STEM/STEAM and CTE curricula (K-12 through university robotics courses)
Teaching robotics fundamentals: kinematics, automation, and pick-and-place workflows
Programming education using Blockly graphical blocks or Python scripting
Laser engraving and calligraphy/drawing projects
Introductory 3D printing and additive manufacturing lessons
AI and computer vision teaching modules (via DobotLab's vision/recognition tools)
Maker and hobbyist automation projects
Multi-control-method demonstrations (voice, gesture, Leap Motion, mobile app)

KEY FEATURES & ADVANTAGES

5 Interchangeable End Effectors: Gripper, suction cup, pen holder, laser engraving head, and 3D printing head, covering multiple disciplines with one arm
Durable, Lightweight & Portable (Perfect combination for classrooms): With a 6061 aluminum alloy frame and a weight of 3.4 kg, the DOBOT Magician robotic arm is a durable option for classrooms, and can be placed on desktops and repositioned manually by students
Comes Classroom-Ready: Includes calibration tools, laser safety glasses, filament, and all mounting hardware needed to start lessons immediately
Comes Wireless-Ready: Includes Bluetooth and Wi-Fi modules for cable-free control, a safe option for classrooms
Flexible Programming Paths: Blockly drag-and-drop blocks for beginners, Python scripting for advanced users, plus a full motion-control SDK for developers
Multiple Control Modes: Supports drag teaching (record a motion by hand, and then replay it), PC software, mobile app, voice commands, hand gestures, and Leap Motion
Secondary Development Option: DOBOT Magician comes with 13 interface ports and programming buttons, allowing students to create new functions using DobotLab's script programming

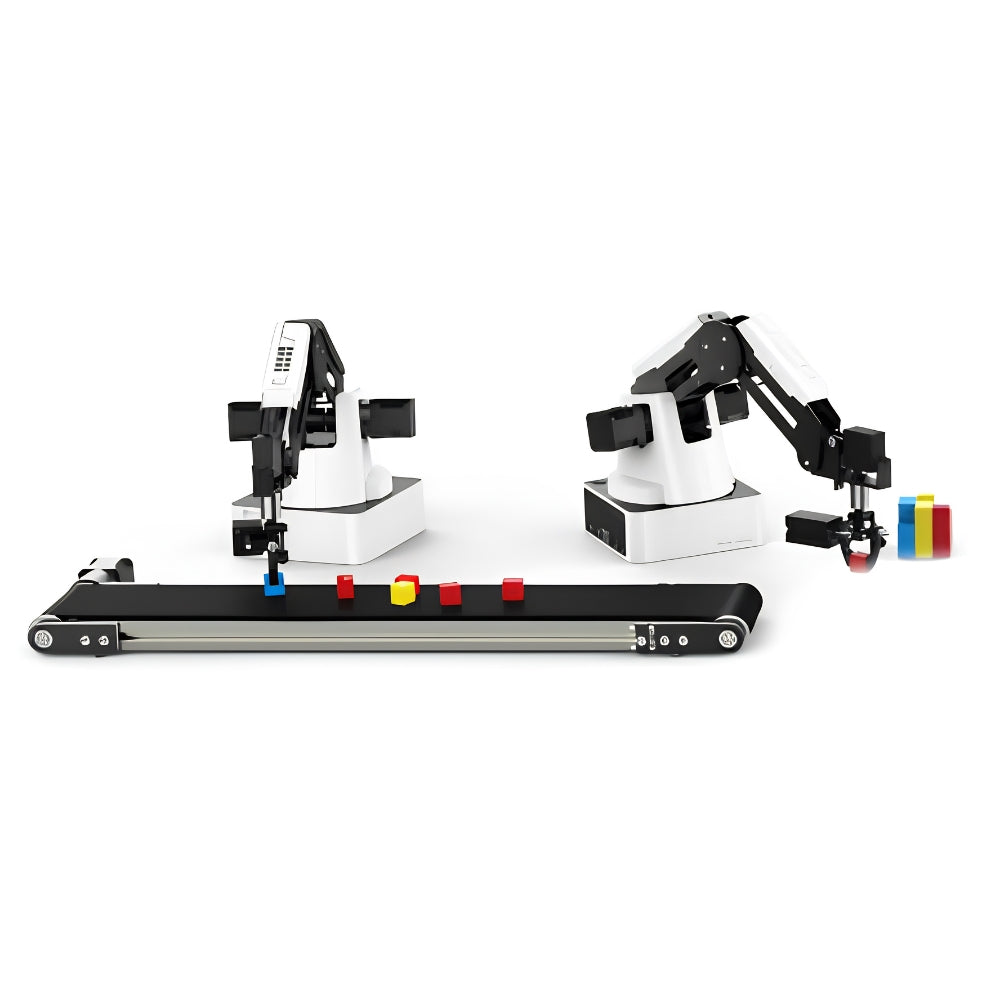

Combinations With Optional Accessories: Rails, conveyor belts, mobility, and vision modules are available to perform different tasks. For a quote, Contact Us
1-Year InDro Warranty & Support

DOBOT MAGICIAN TECHNICAL SPECIFICATIONS

Number of Axes	4 axes
Payload Capacity	500 g
Max. Reach	320 mm
Working Radius / Reach	580 mm
Repeatability	±0.2 mm
Power Supply	100-240V, 50/60 Hz
Power Input	DC 12V / 7A
Power Consumption	60 W (Max)
Net Weight (Arm + Controller)	3.4 kg
Gross Weight (Educational Version)	8 kg
Working Temperature	-10°C to 60°C
Joint Range of Motion	J1 (Base): -135° to +135° J2 (Rear arm): 0° to +85° J3 (Forearm): -10° to +95° J4 (Rotation servo): +90° to -90°
Base Dimensions	158 mm x 158 mm
Materials	Aluminum alloy 6061 and Engineering Plastic
Communication	USB, Wi-Fi, Bluetooth
Controller	Dobot integrated controller
Control Methods	PC, mobile app, Blockly, Python, voice, gesture, Leap Motion, teach & playback
Programming	Drag teaching, offline trajectory, API control, PC control
Mounting	Desktop
