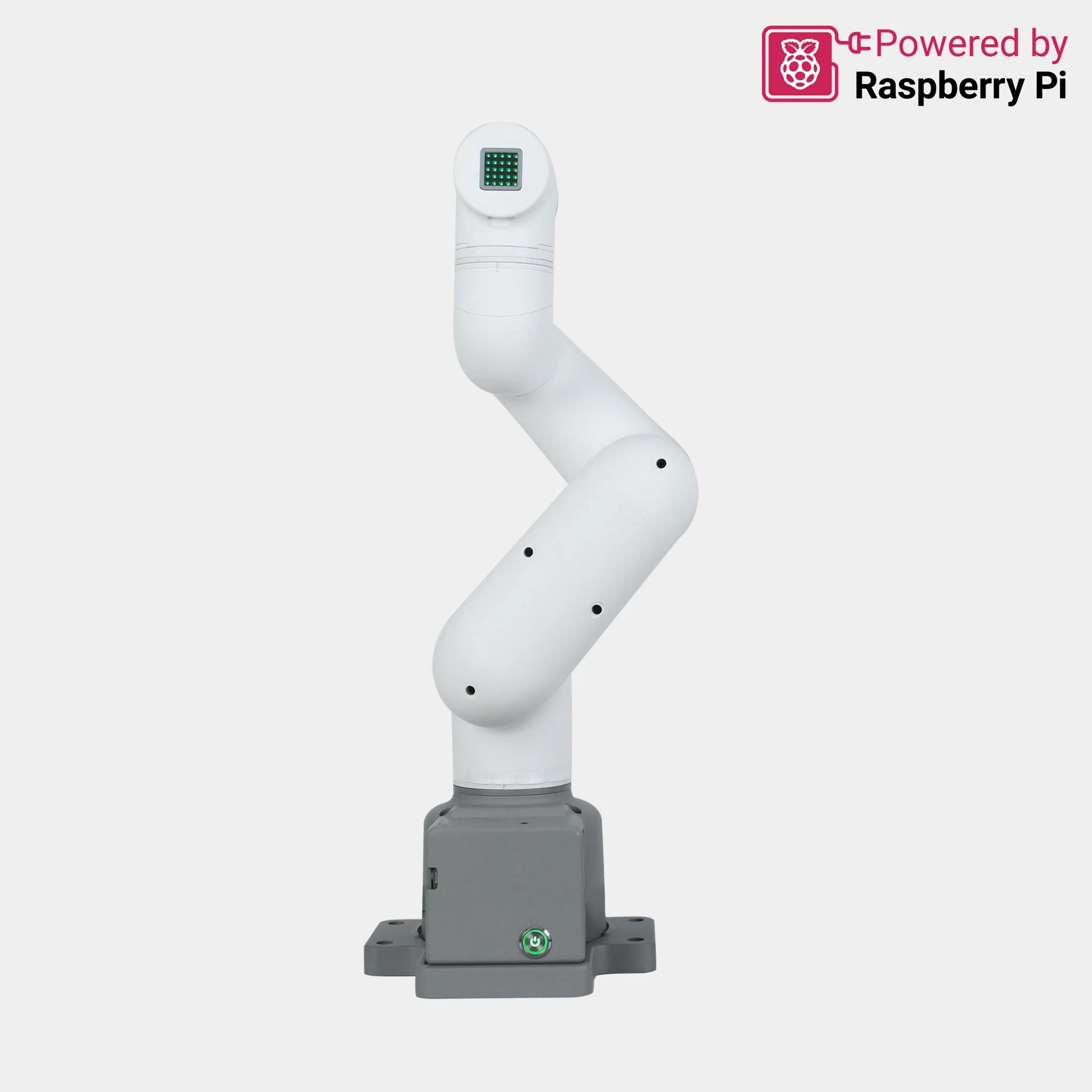

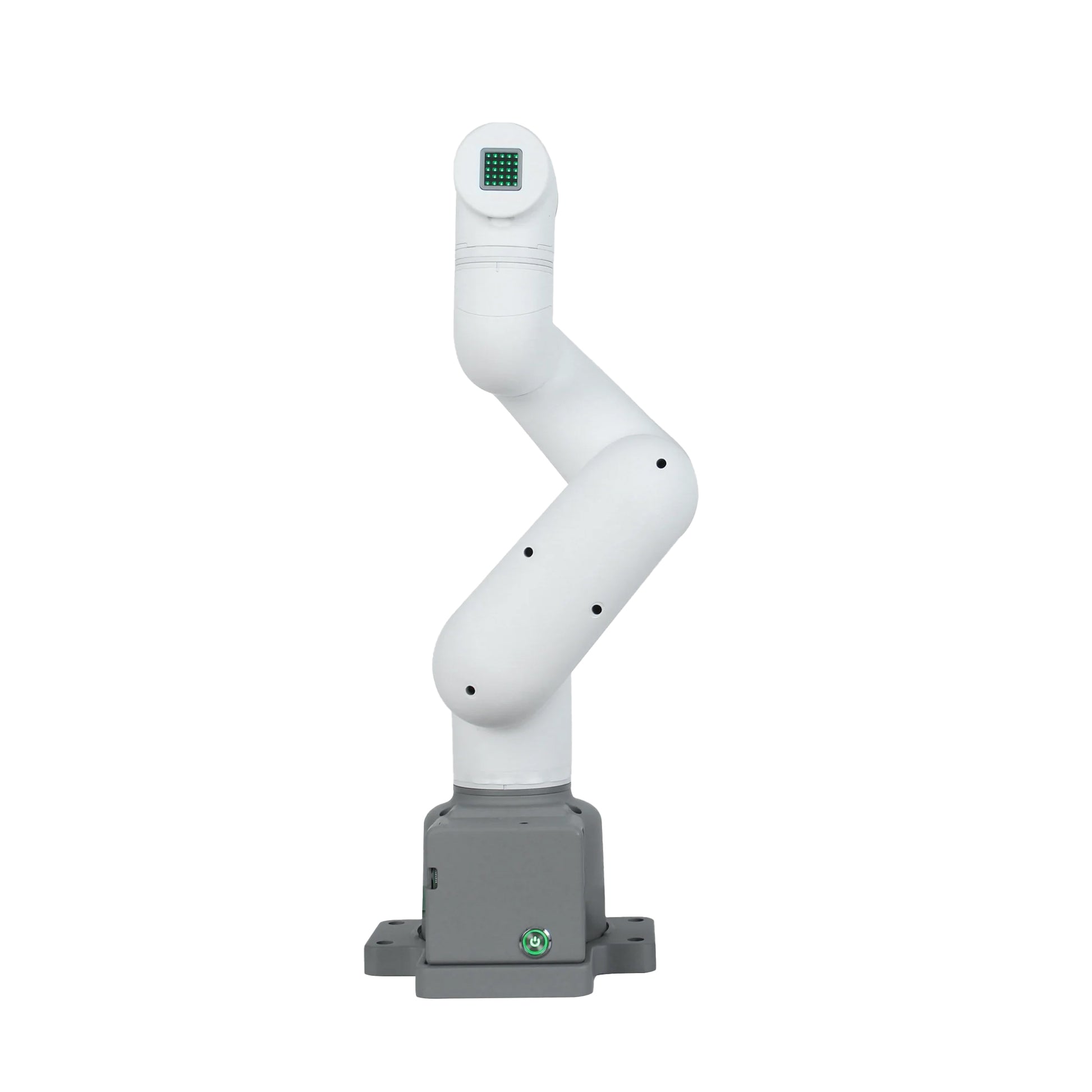

Elephant Robotics MyCobot 320 pi

Elephant Robotics MyCobot 320 pi

$2,999.00 USD
$2,999.00 USD
Sale Sold out
Add Components

OVERVIEW

The User-Oriented 6-Axis Cobot with serious load capacity!
Open ROS simulation development environment, built-in kinematics forward and inverse solution algorithm. The whole series has been sold to 60+ countries around the world with more than 5,000 units shipped. Start your intelligent manufacturing robot learning journey anytime, anywhere!

FEATURES

Convenient development with built-in system

Raspberry PI version robotic arms are a joint product developed by Elephant Robotics and Raspberry PI. Adopting the Raspberry PI 4B as its core processor, and reserving the original hardware interface of Raspberry PI 4B, the robotic arm meets the application needs of the Linux system with the one-in-all structure for portable robot development. Featuring built-in Ubuntu 20.04. the system and development environments like Python, ROS, and myBlockly can be developed after connecting with the displayer without matching with the PC.

DIY your personal mechanical assistant

Equipped with up to 12 standard 24V industrial I/O interfaces, it can be expanded to develop PLC control independent programming, support mainstream control interfaces, and a wealth of terminal expansion accessories to help explore the boundaries of personal applications.

Creative Visual Development

myCobot 320 PI is a free-to-match visual development application, intuitive structural analysis of mechanical motion principles, and enterprise-level communication protocol specifications and applications.

EXCELLENT CONFIGURATION

24V industrialized electrical interface, to complete your industrial scene development needs, key interaction, screen display, PLC interface, allowing you to quickly and safely build robotic arm application exploration scenarios.

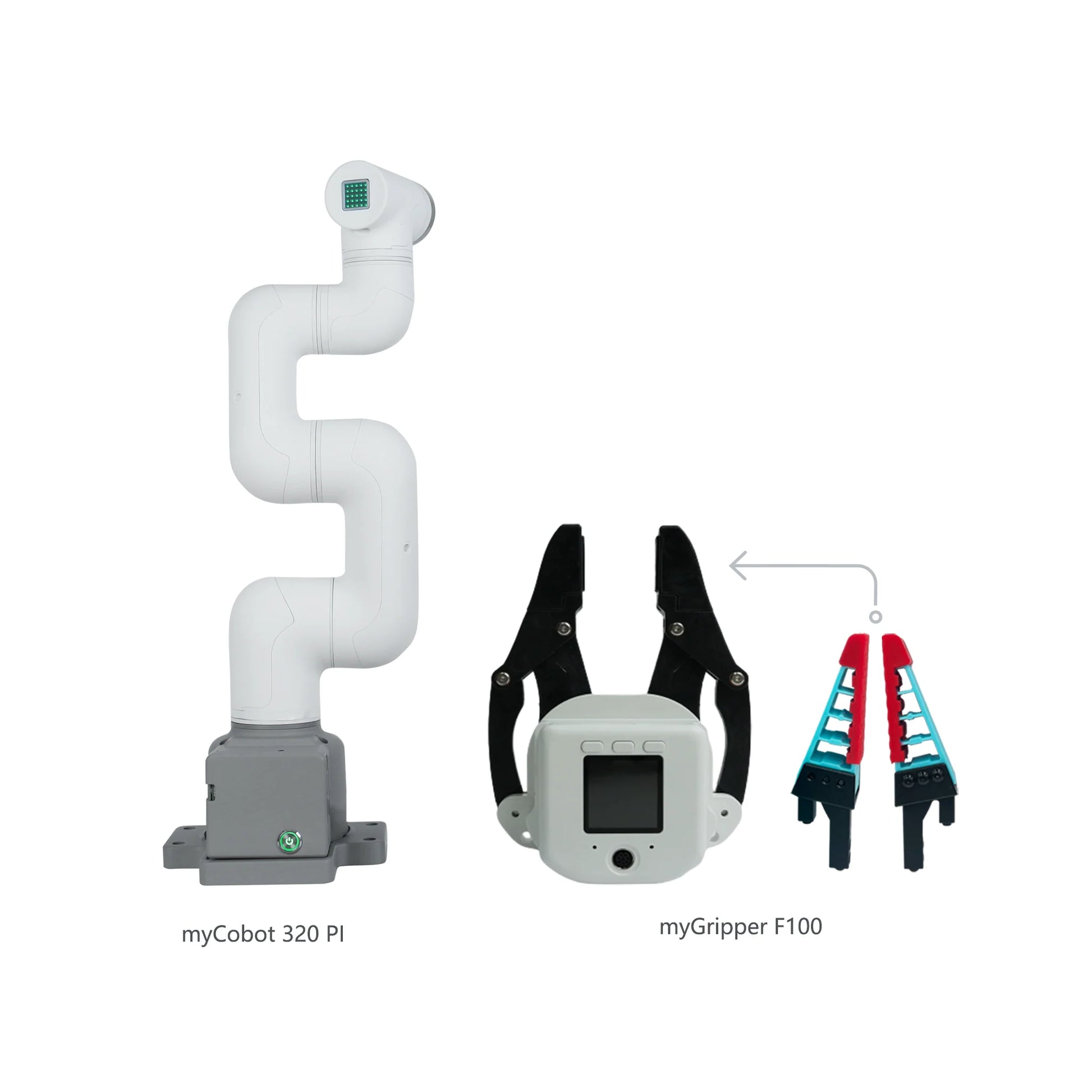

Multiple adapters meet the requirements of a variety of application scenarios



Specifications

  • Degree of Freedom: 6
  • Payload: 1000g
  • Weight: 3360g
  • Working Radius: 350mm
  • Positioning Accuracy: ±0.5mm
  • Working Temperature: -5℃~45℃
  • Working Lifespan: 2000h
  • Power Input: DC 24V 120W
  • Joint Maximum Speed: 160°/s
  • SOC: Broadcom BCM2711
  • CPU: 64bit 1.5GHz 4B
  • GPU: 500 MHz VideoCore VI
  • Bluetooth: Dual mode Bluetooth 2.4G/5G
  • WiFi: 802.11AC,Dual model WiFi
  • Development Platforms(OS): Windows, Linux, MacOS
  • Programming: Python
  • ROS: ROS1
  • Communication Protocol: Serial Communication, MODBUS,TCP/IP
  • Development software: myBlockly,myStudio
  • USB: USB3.0*2 USB2.0*2
  • Type-C: *1
  • I/O Interfaces: INPUT*6 OUTPUT*6
  • Network Port: Gigabit Ethernet Port*1
  • Audio: 3.5mm*1
  • HDMI: microHDMI*2

InDro Robotics offers the entire range of Elephant Robotics products. Please reach out to us if you are interested in any product not listed on our website.
