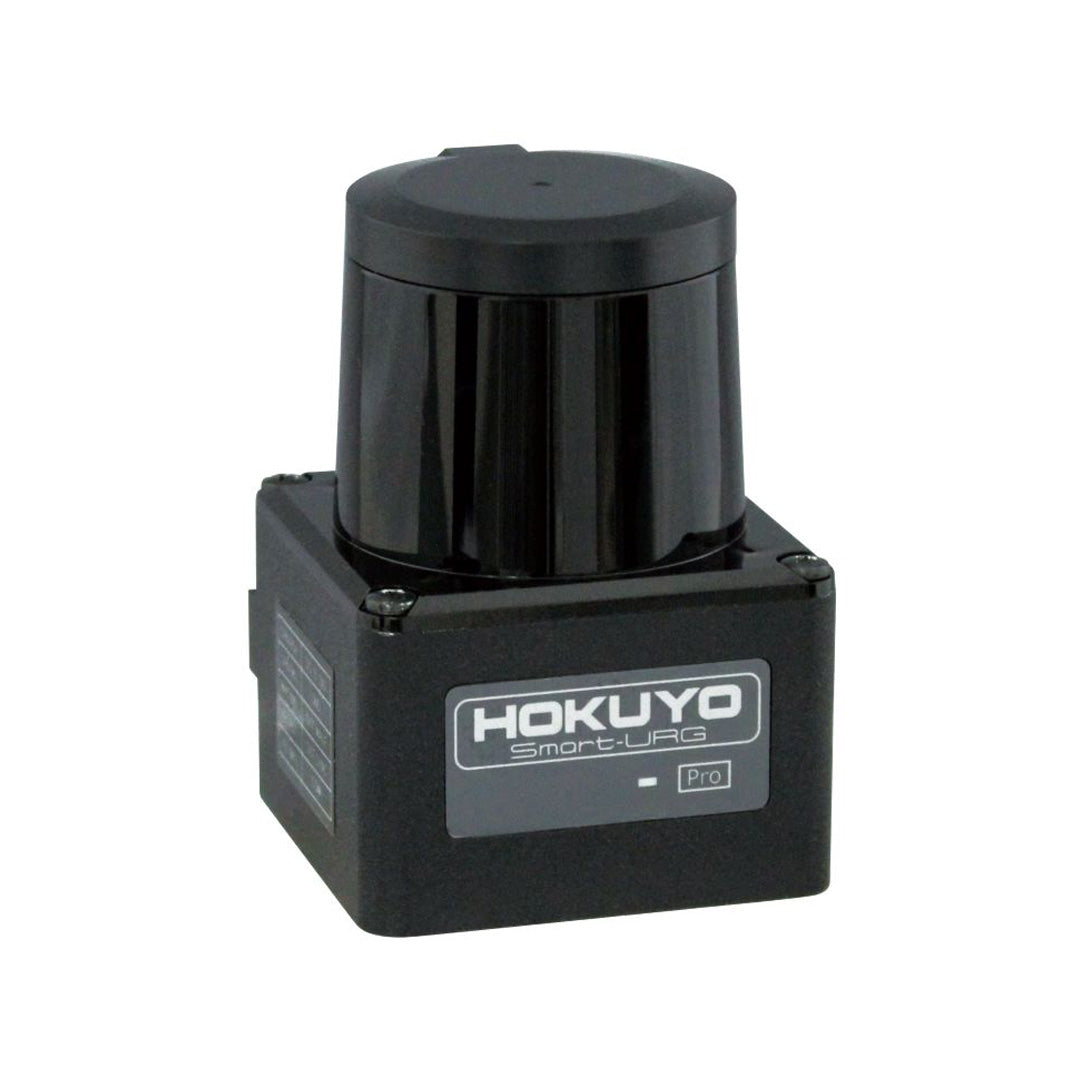

Hokuyo UST-30LX
Hokuyo UST-30LX
The UST-30LX is a compact, lightweight 2D LiDAR sensor used for obstacle detection and localization on autonomous mobile robots (AMR), unmanned aerial vehicles (UAV) and automated guided vehicles and carts (AGV, AGC). Equipped with an Ethernet interface, measurement data can be obtained in a 270° field-of-view up to 30 meters. With IP67 protection and multi-echo integration, this sensor offers reliable object detection and environmental mapping in all weather conditions for outdoor robotic applications.
PRODUCT FEATURES
- The smallest and the lightest of its kind, 130g
- Mid-detection range 30m
- Wide detection angle 270°
- Fast response 25msec, High angular resolution 0.125°
- Detects size, position and the moving direction of objects.
- Outdoor model
APPLICATIONS
- Industrial Vehicles (AGVs)
- Distribution and Warehousing
- Autonomous Mobile Robots (AMR)
- Material Handling and Packaging
- Automotive and Aerospace
