AgileX

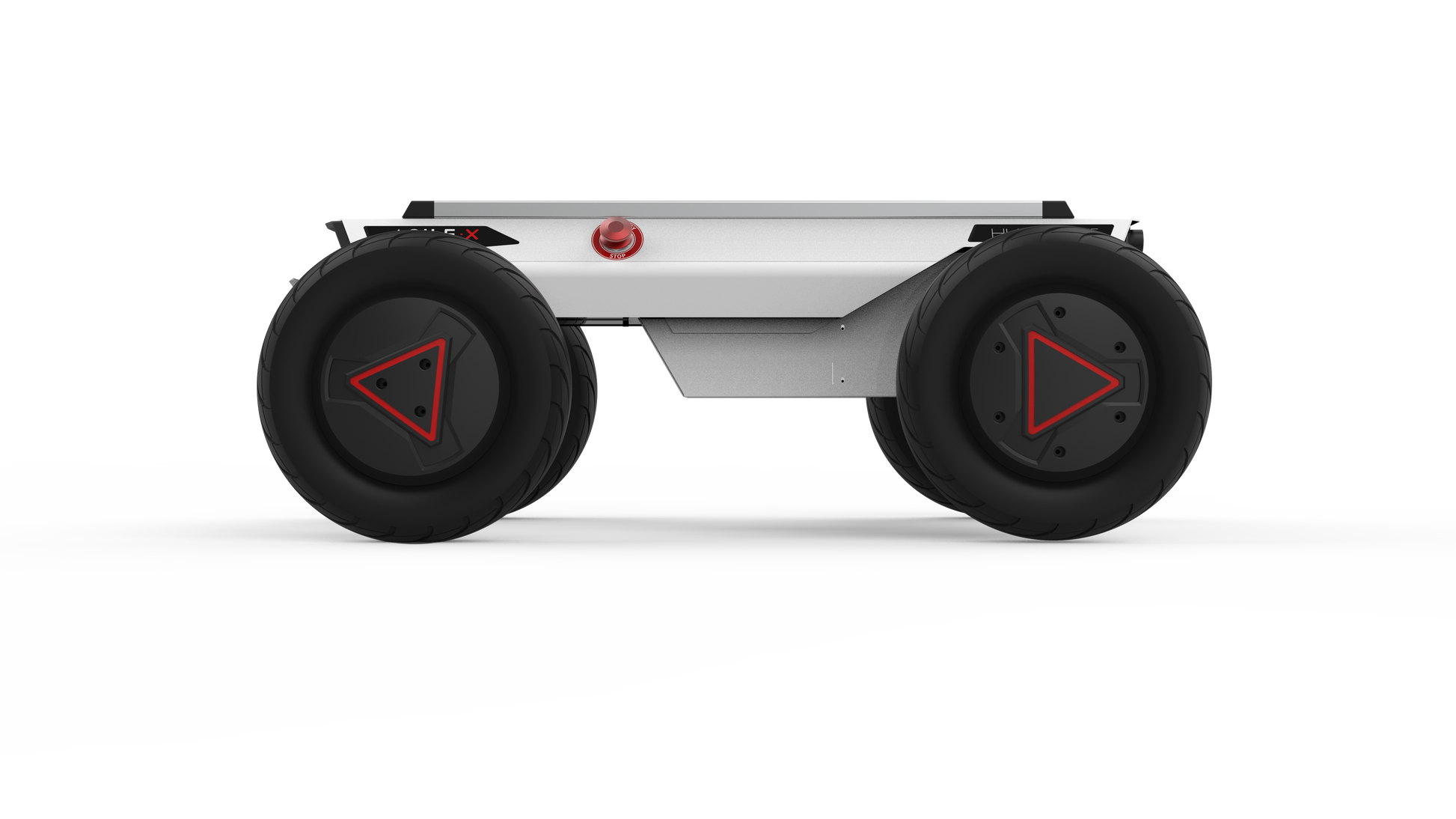

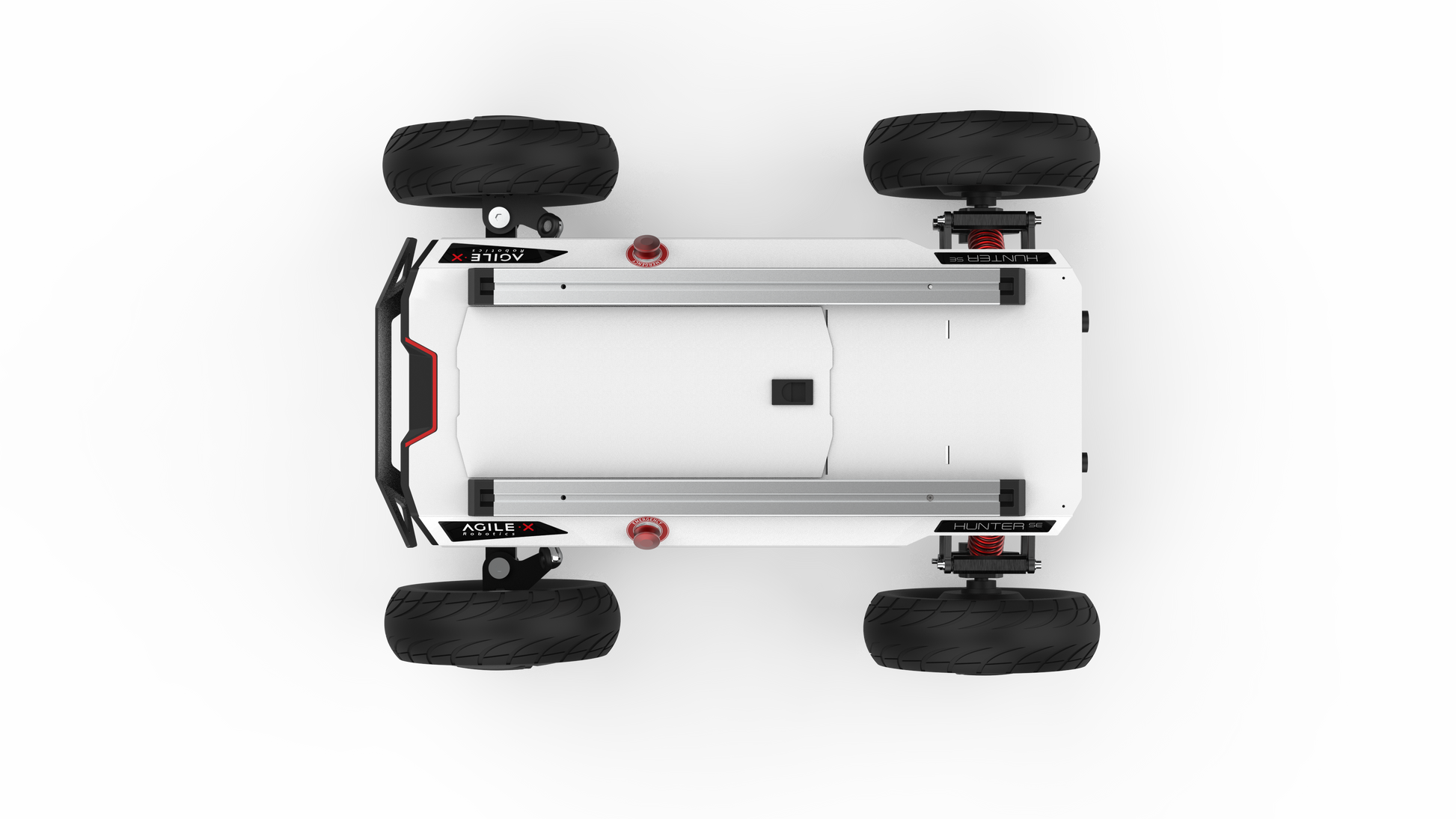

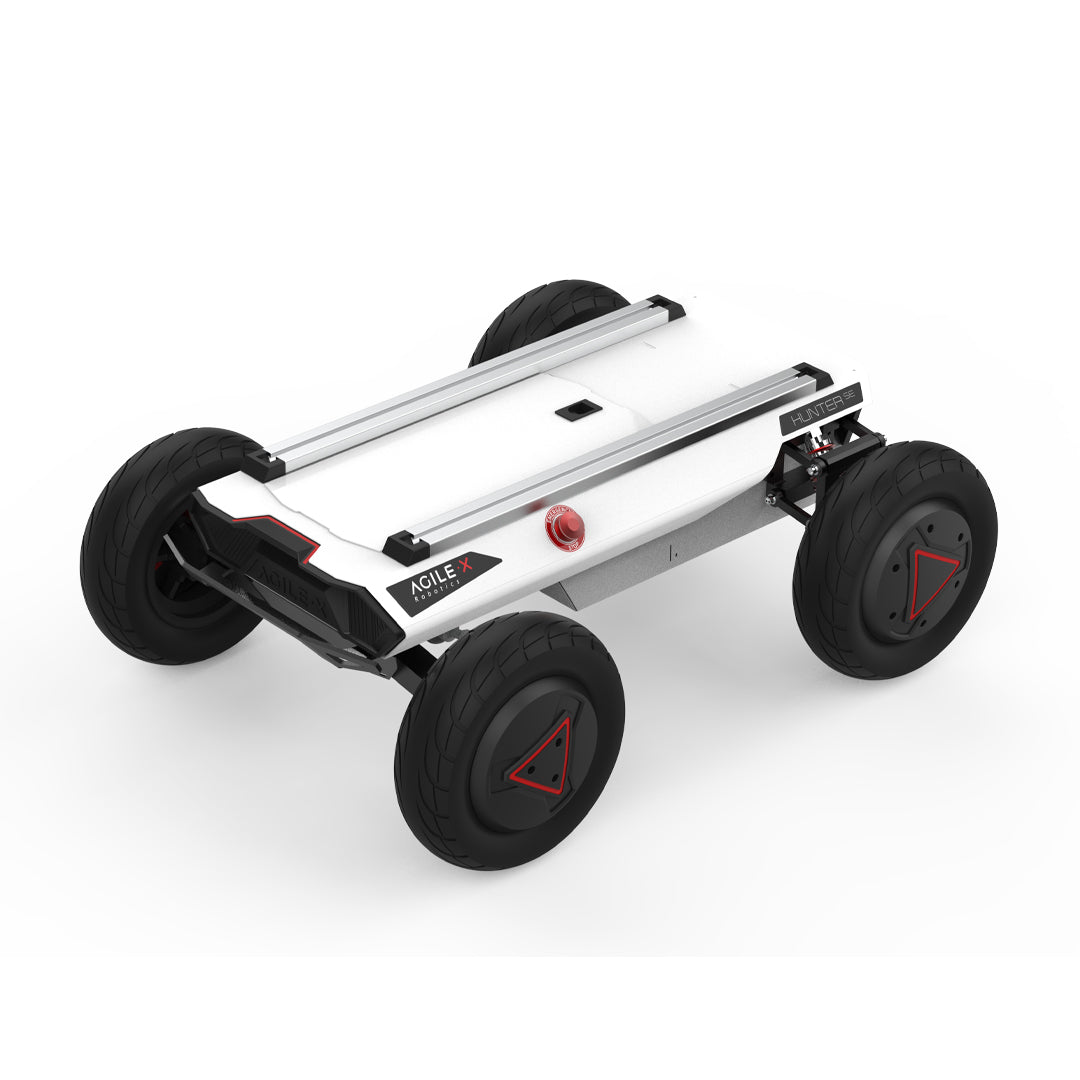

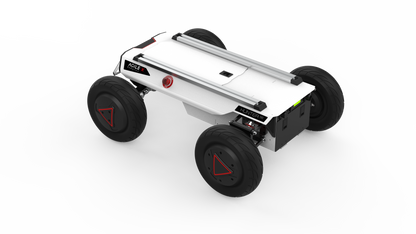

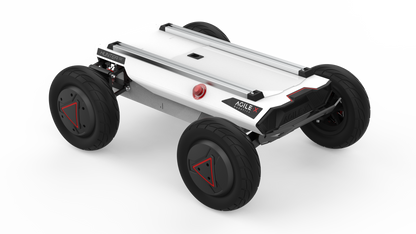

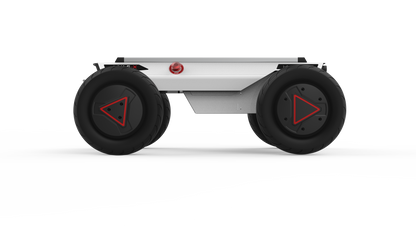

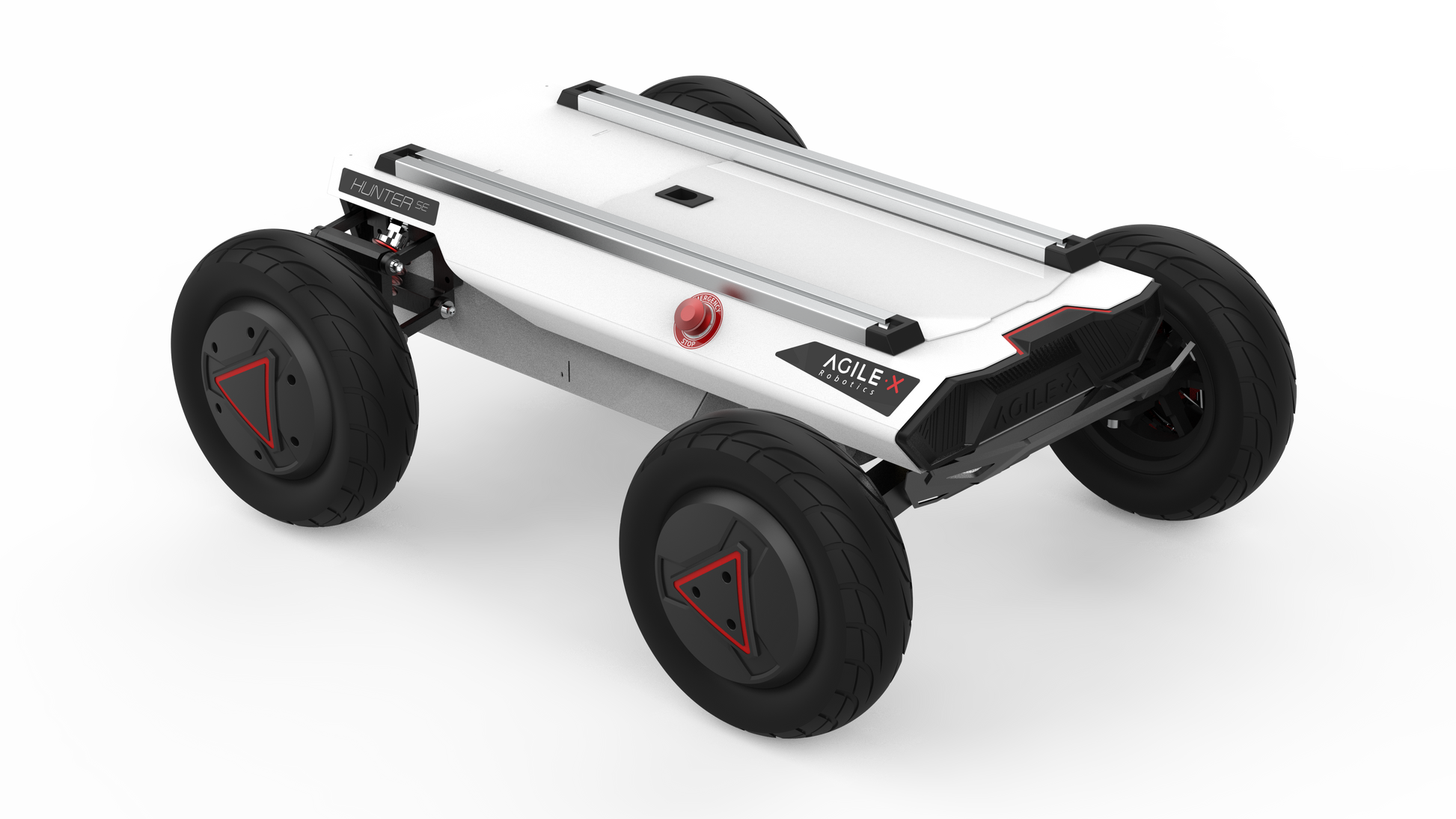

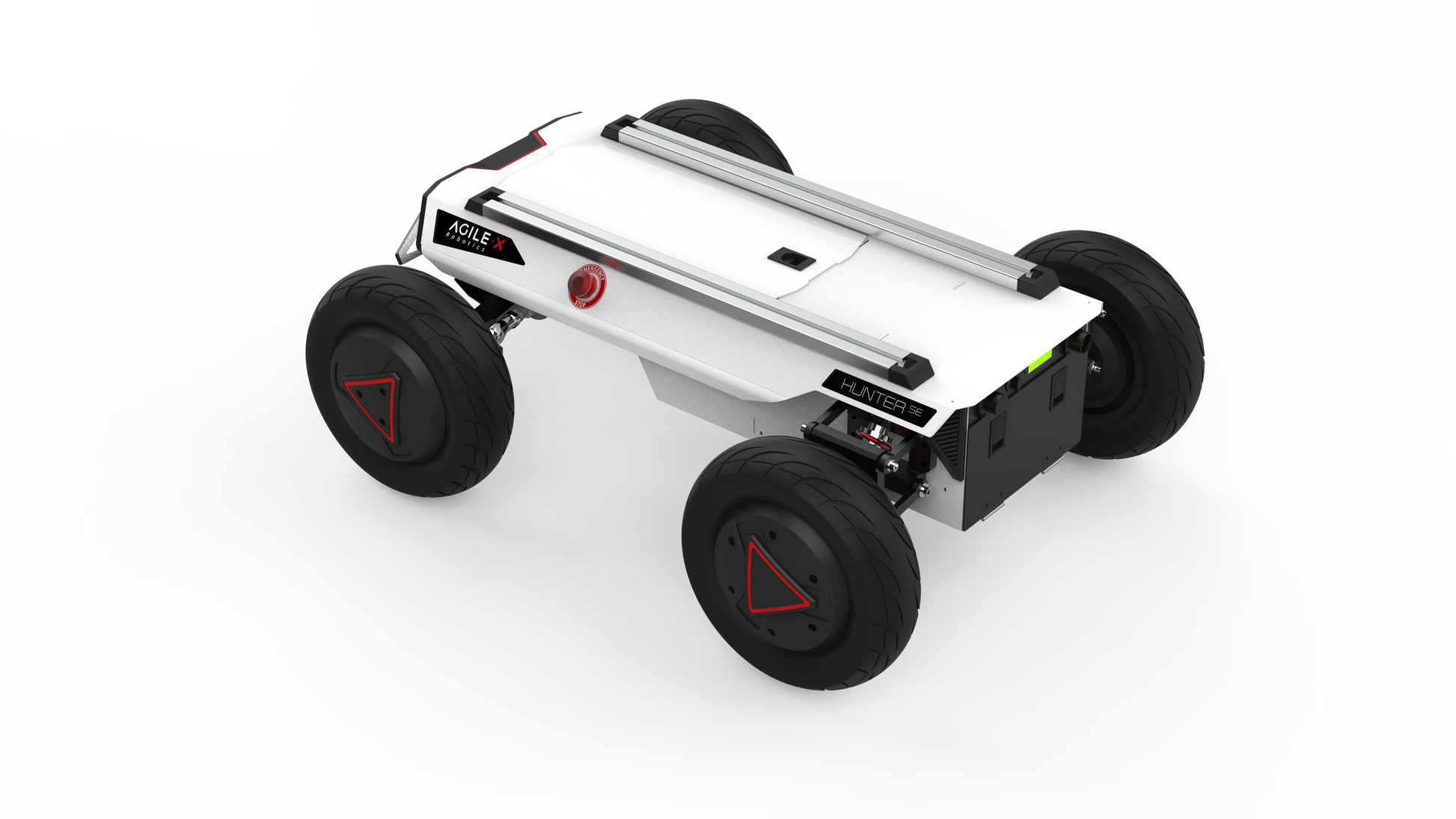

AgileX Hunter SE

AgileX Hunter SE

Regular price $7,000.00 USD
Regular price Sale price $7,000.00 USD
Sale Sold out

Taxes, US duties (if applicable), and shipping calculated at checkout.

OVERVIEW

The AgileX HUNTER SE is a compact Ackermann-steering UGV (unmanned ground vehicle) built for the road conditions and speeds of urban environments. Its car-like front-wheel steering gives smooth, predictable driving for high-speed autonomous applications.

With a top speed of 4.8 m/s, a 50 kg payload, a modular all-steel body, a standard CAN interface, and an open-source ROS2 package, the AgileX HUNTER SE is a ready-to-extend platform for autonomous driving research, delivery, logistics, inspection, and security robots.

Key facts:

  • Type: Ackermann-steering UGV with front-wheel steering
  • Maximum speed: 4.8 m/s
  • Payload: 50 kg
  • Weight: 42 kg
  • Battery: 24 V, 30 Ah lithium, 3-hour charge
  • Endurance: up to 8 hours, up to 20 km
  • Interface: CAN 2.0B, 500 kbps
  • Software: ROS package, open-source SDK, CAN protocol documentation
  • Warranty: 1-year InDro warranty

SEE HUNTER SE IN ACTION

AGILEX HUNTER SE FEATURES

Car-Like Ackermann Steering: Front-wheel steering gives precise maneuverability, reduced tire wear, and stable control for long, high-intensity autonomous runs.

Efficient Design: A refined all-steel chassis with the latest wheel-motor design delivers speeds of up to 4.8 m/s.

Built for Paved Roads: Swing-arm suspension lets the HUNTER SE roll over speed bumps and common obstacles on concrete and asphalt.

Modular & Scalable: The modular design is easy to reconfigure and expand, from lab research to real-world deployment.

Ready for Secondary Development: Aluminum T-slot rails let you securely mount cameras, LiDAR, GPS, IMUs, manipulators, or custom kits. The CAN bus interface, open-source SDK, and ROS package make integration straightforward.

Built-In Safety Features: Emergency stop switches on both sides of the body, plus battery voltage monitoring with a low-voltage alarm. The electromagnetic parking brake engages on power loss.

WHAT IS THE AGILEX HUNTER SE BUILT FOR?

  • Autonomous Driving Research and Education: Test perception, planning, and control on a car-like platform.
  • Inspection and Security Patrol: Run unmanned patrol and inspection routes on paved surfaces.
  • Delivery and Logistics Robots: Carry up to 50 kg on a platform that can be extended with your own sensors and payload mounts.
  • Scientific Research and Exploration: Build custom sensing and data collection setups on the T-slot rails.

WHAT DOES INDRO OFFER FOR Hunter SE?

  • Direct support in North American time zones
  • Direct shipment of Hunter SE to your address with no hidden costs, under DDP (Delivered Duty Paid) terms - duties and taxes are included
  • 1-year InDro Warranty
  • Expedited lead times - holds inventory, and priority shipping speed when it needs to be ordered
  • Integration option - If you need a customized hardware solution with Hunter SE to jump-start working on your project
  • Payment term options - For more information, Contact us!

AGILEX HUNTER SE SPECIFICATIONS

Mechanical
Steering Front-wheel Ackermann
Dimensions 820 × 640 × 310 mm
Weight 42 kg
Payload 50 kg
Minimum Ground Clearance 120 mm
Drive Motors 2 × 350 W brushless DC (rear), 150 W brushless DC steering motor
Suspension Front non-independent, rear independent swing arm
Parking Brake Electromagnetic, engages on power loss
Power
Battery 24 V, 30 Ah lithium
Charging Time 3 hours
Power Supply Output 24 V, up to 15 A total (max 10 A per socket)
Performance
Maximum Speed 4.8 m/s (RC speed modes: 1.5, 3, and 4.8 m/s)
Maximum Travel Distance Up to 20 km
Maximum Endurance Up to 8 hours
Maximum Gradeability (Full Load) 20°
Environment
Operating Temperature -10°C to 40°C
Protection Rating IP22
Communication & Control
Interface CAN 2.0B, 500 kbps
Control Modes Remote control and CAN command control
Remote Controller (Optional) 2.4 GHz FS transmitter, up to 100 m range
Software ROS package, open-source SDK, CAN protocol documentation
Onboard Sensors None; add cameras, LiDAR, GPS, and IMU through the T-slot rails
Warranty 1-year InDro warranty

AGILEX HUNTER SE TECHNICAL DRAWINGS

AgileX HUNTER SE technical drawings showing top, side, and rear views

FREQUENTLY ASKED QUESTIONS

What is the AgileX HUNTER SE?

The AgileX HUNTER SE is a compact Ackermann-steering UGV for autonomous driving research, delivery, logistics, inspection, and security robots. It carries up to 50 kg, reaches 4.8 m/s, and is built to be extended with your own sensors.

What is Ackermann steering, and why does it matter for a UGV?

Ackermann steering is the car-like steering used on road vehicles, where the front wheels steer the vehicle. On the HUNTER SE it gives smooth, predictable driving at higher speeds, reduces tire wear, and keeps control stable during long autonomous runs.

How much does the AgileX HUNTER SE cost?

The AgileX HUNTER SE costs $7,000 USD.

How far and how long can the HUNTER SE run on one charge?

It runs up to 20 km or up to 8 hours on its 24 V, 30 Ah lithium battery. A full charge takes about 3 hours.

Does the HUNTER SE include sensors?

No. It has no onboard sensors. Aluminum T-slot rails let you mount cameras, LiDAR, GPS, IMUs, manipulators, or custom kits, and the CAN bus interface lets you integrate them.

How is the HUNTER SE controlled, and what software does it support?

It supports remote control and CAN command control (CAN 2.0B, 500 kbps). An optional 2.4 GHz FS transmitter gives up to 100 m of range. AgileX provides an open-source ROS package, an open-source SDK, and CAN protocol documentation.

What terrain and conditions is the HUNTER SE designed for?

It is designed for paved roads such as concrete and asphalt. It has 120 mm minimum ground clearance, climbs 20° slopes at full load, and has an IP22 protection rating. The operating temperature range is -10°C to 40°C.

HUNTER SE RELEVANT RESOURCES

HUNTER SE User Manual (PDF)

HUNTER SE ROS Package (GitHub)

AgileX UGV SDK (GitHub)

AgileX HUNTER SE Documentation (InDro Robotics)
