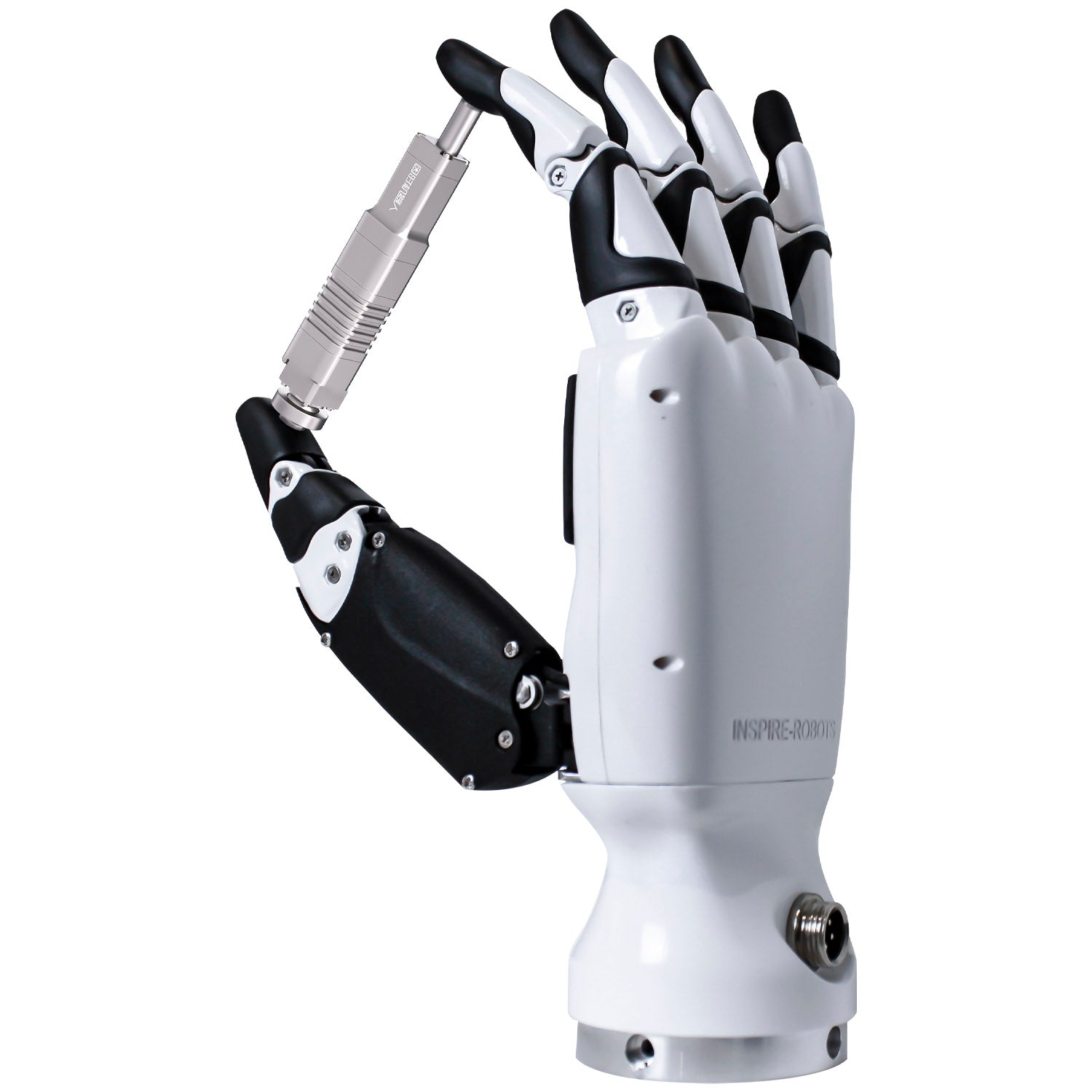

• Inspire Strong Grip Dexterous Hand

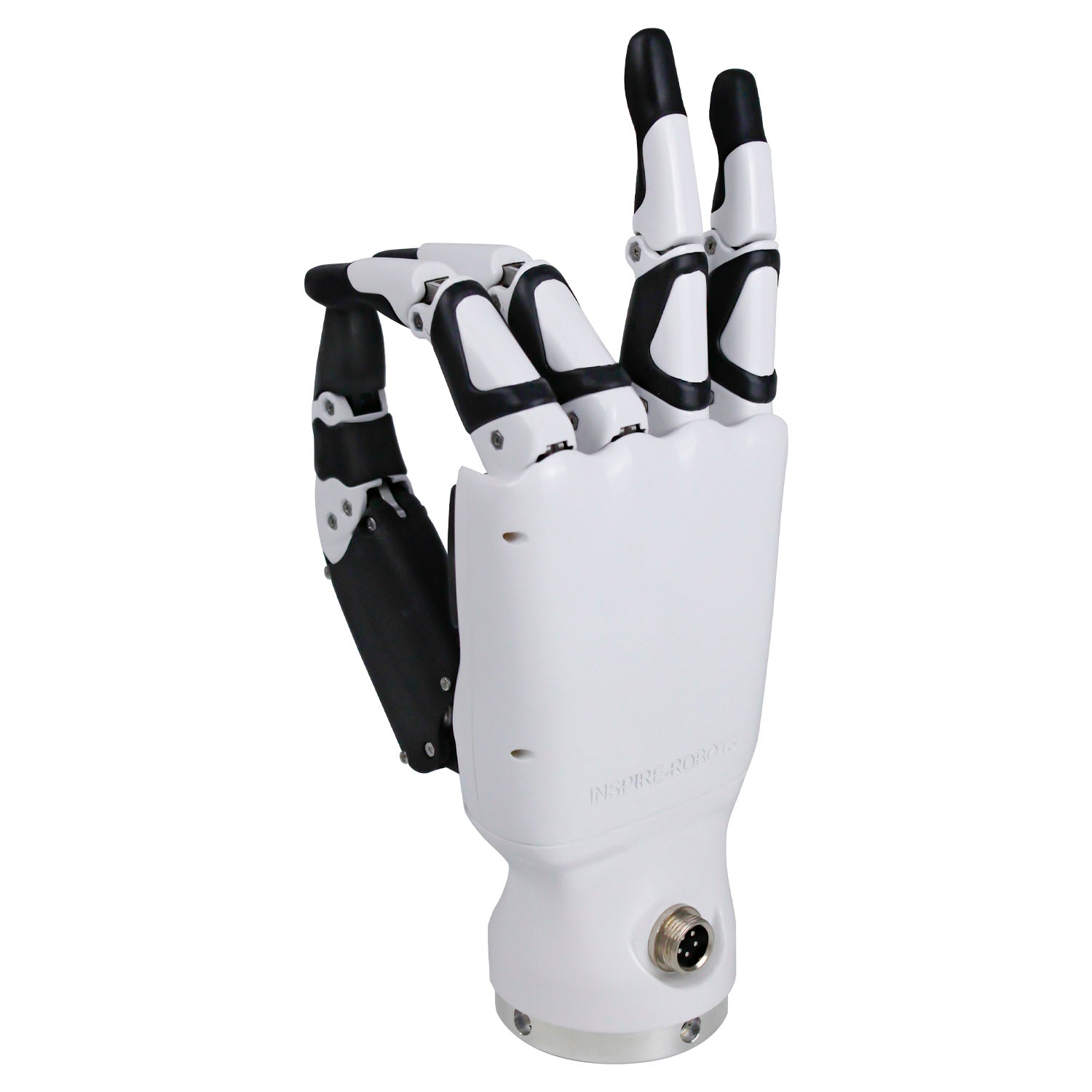

  • Strong Grip Dexterous Robot Hand

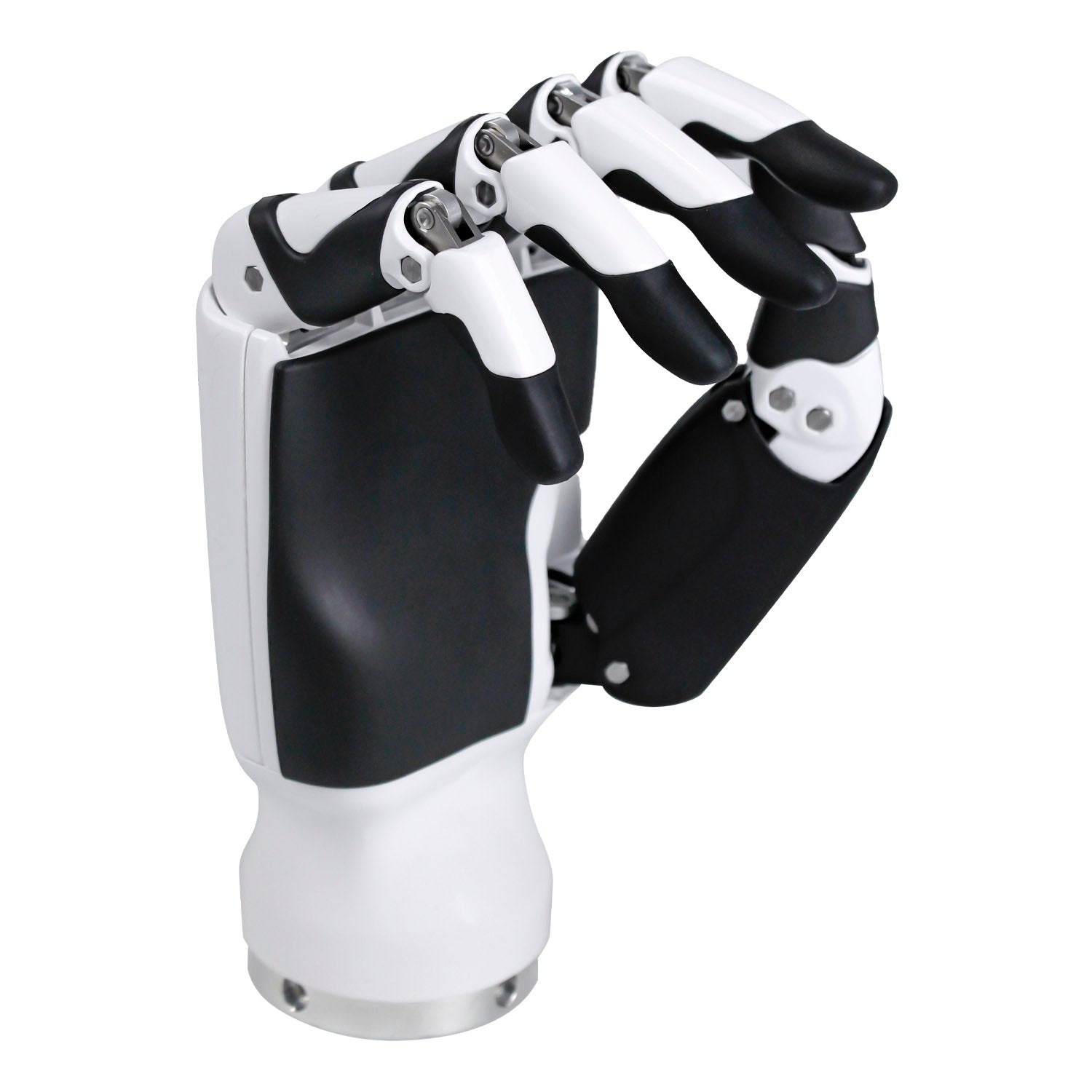

  • Inspire Dexterous Robot Hand

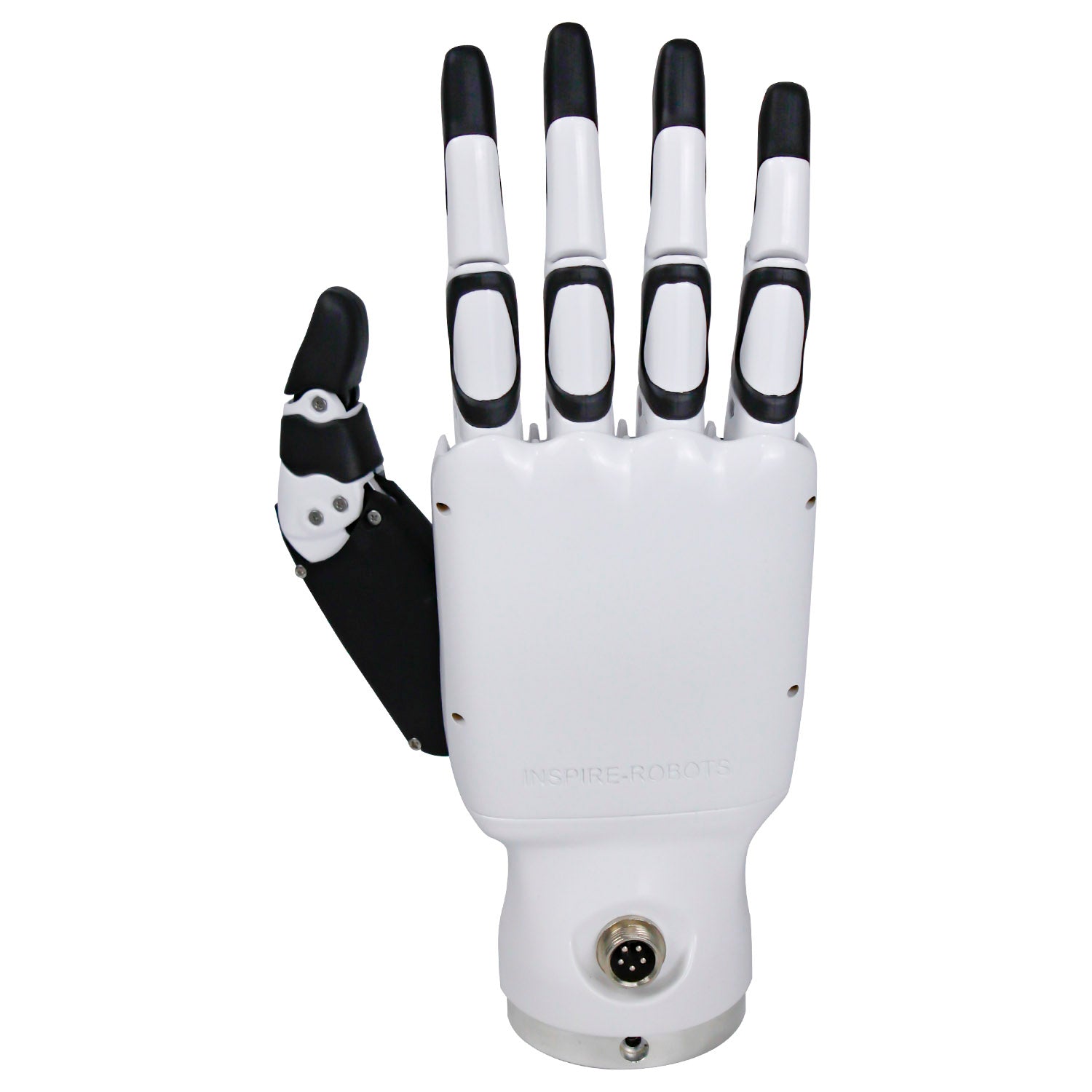

  • Inspire Strong Grip Dexterous Right Hand

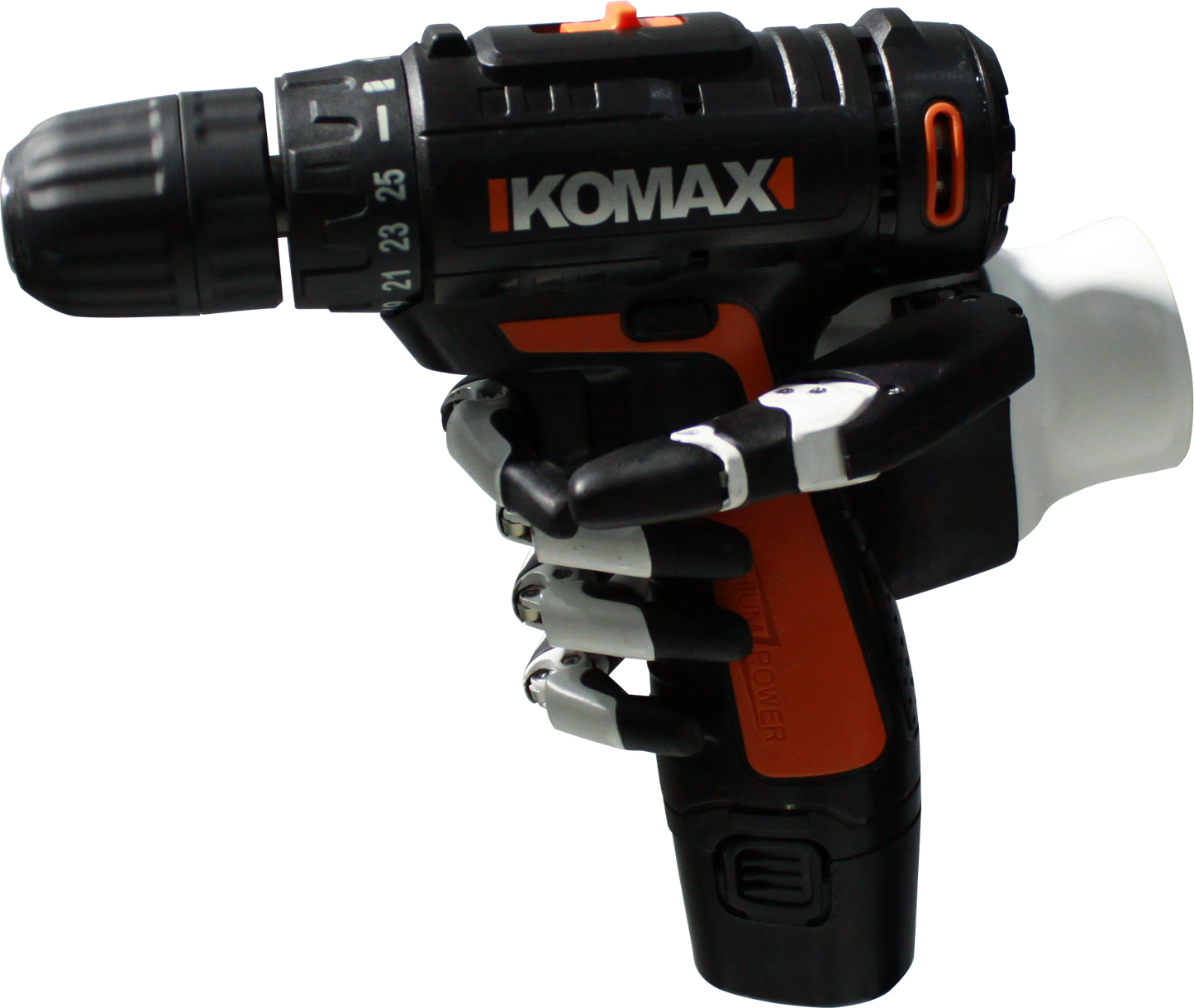

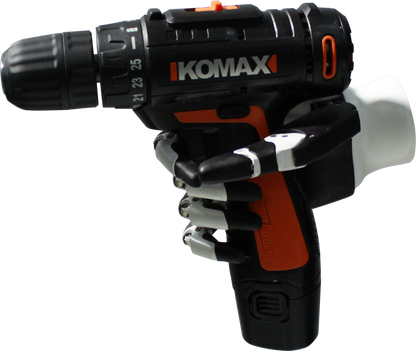

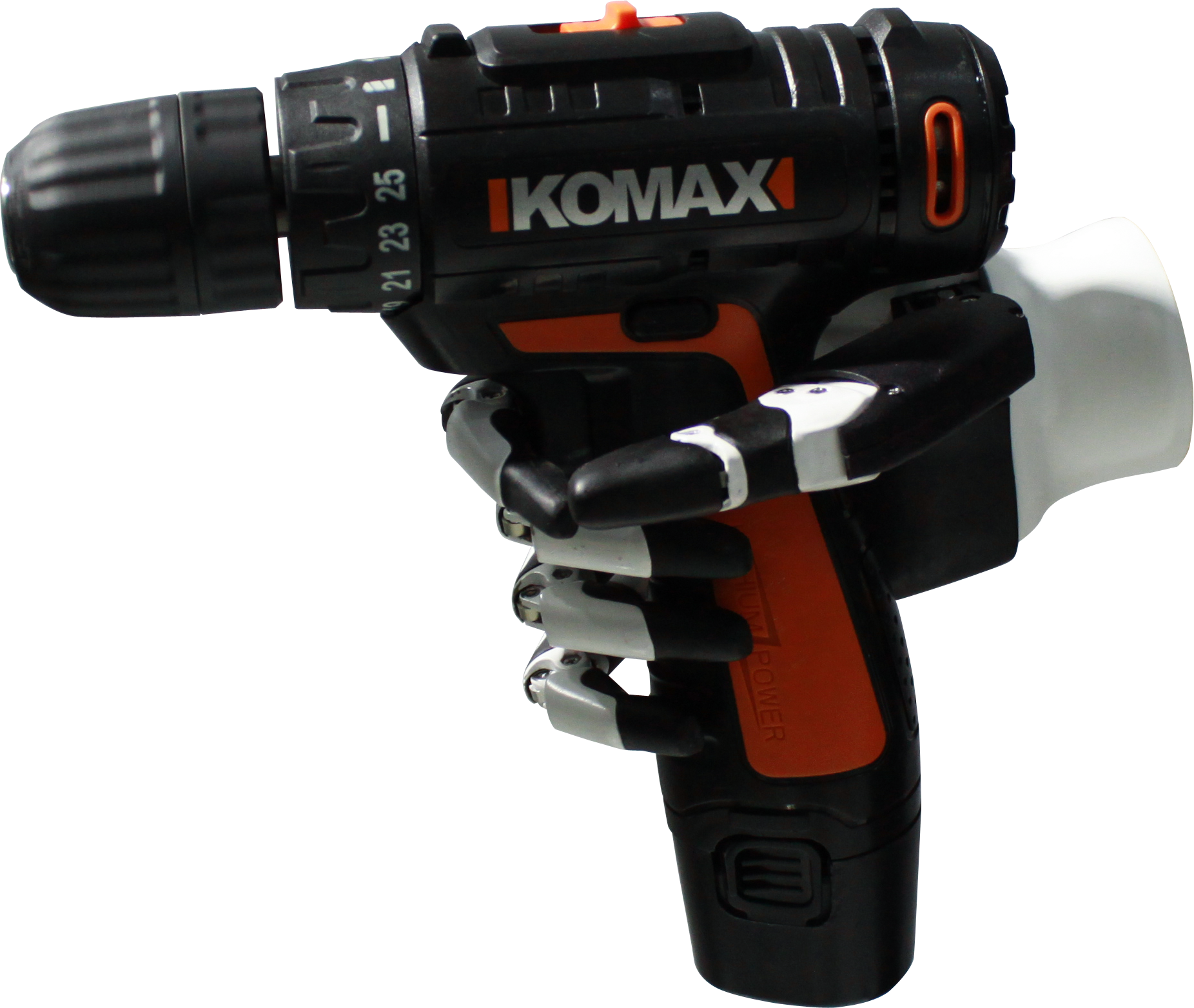

  • Inspire Strong Grip Dexterous Hand Holding Drill

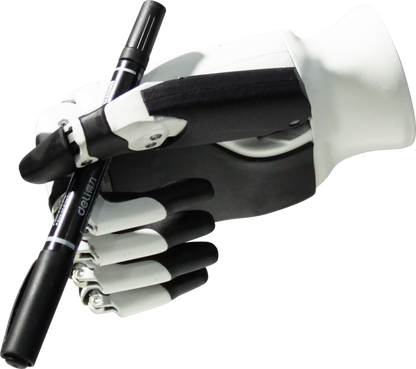

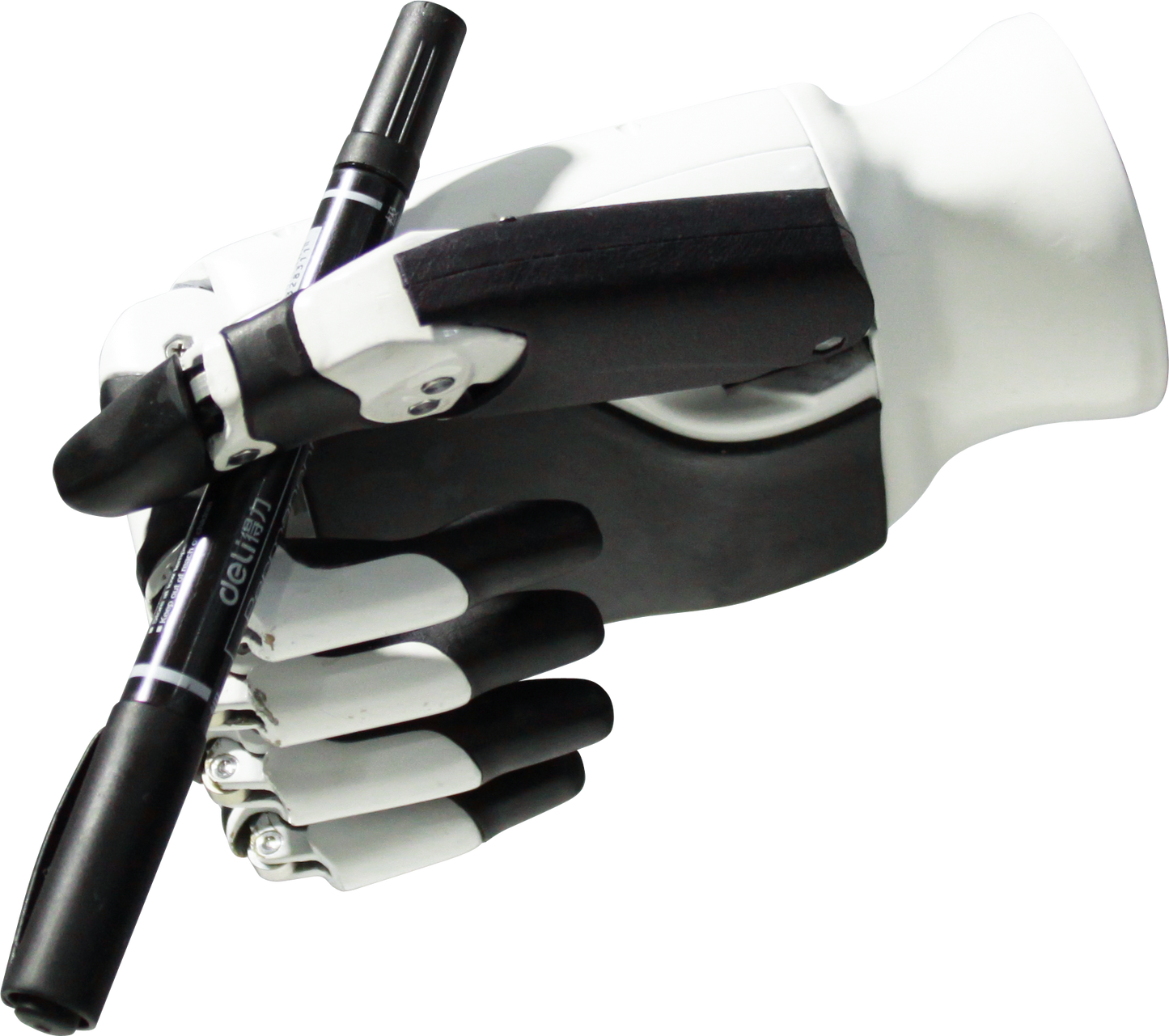

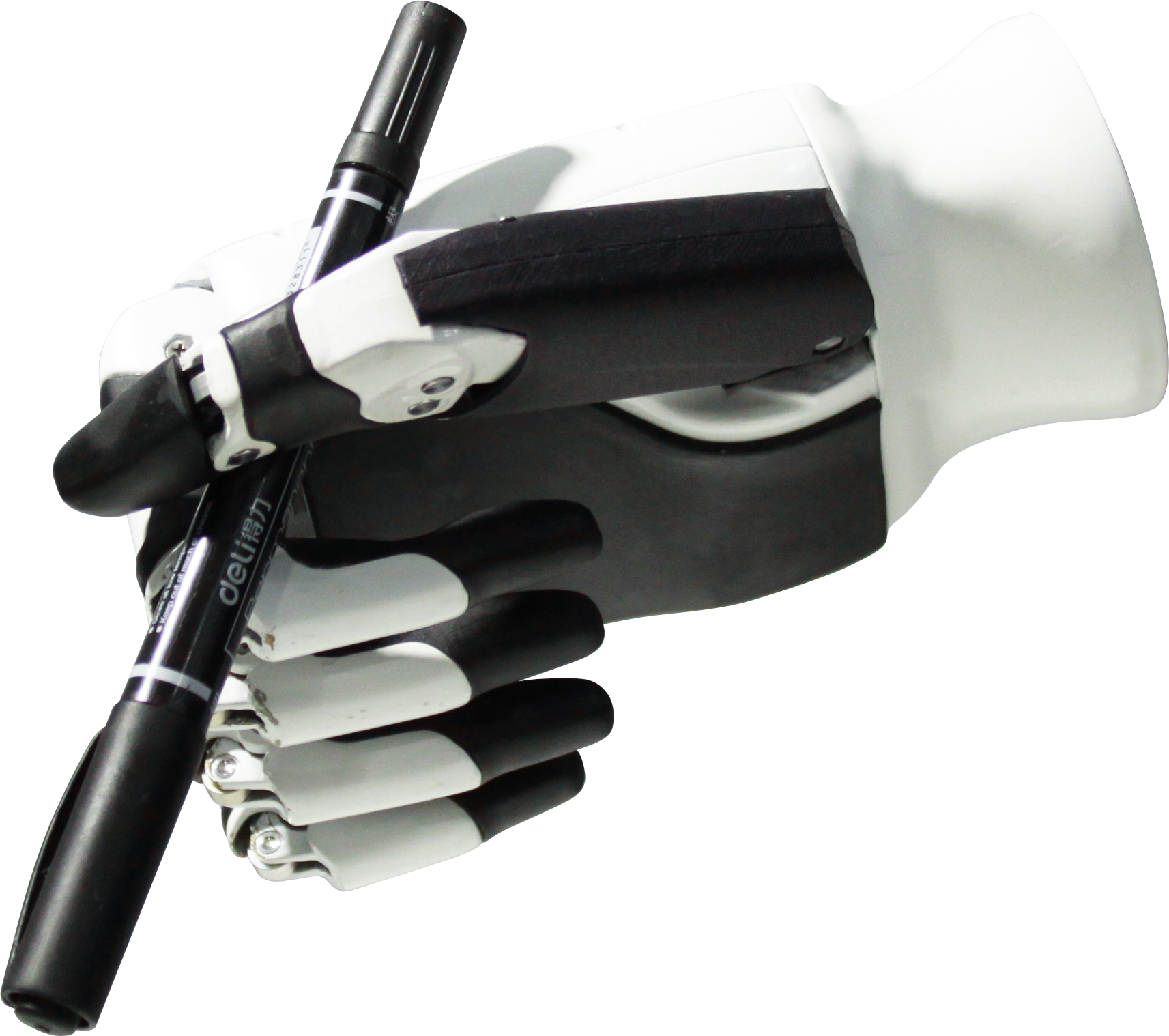

  • Inspire Strong Grip Dexterous Hand Writing

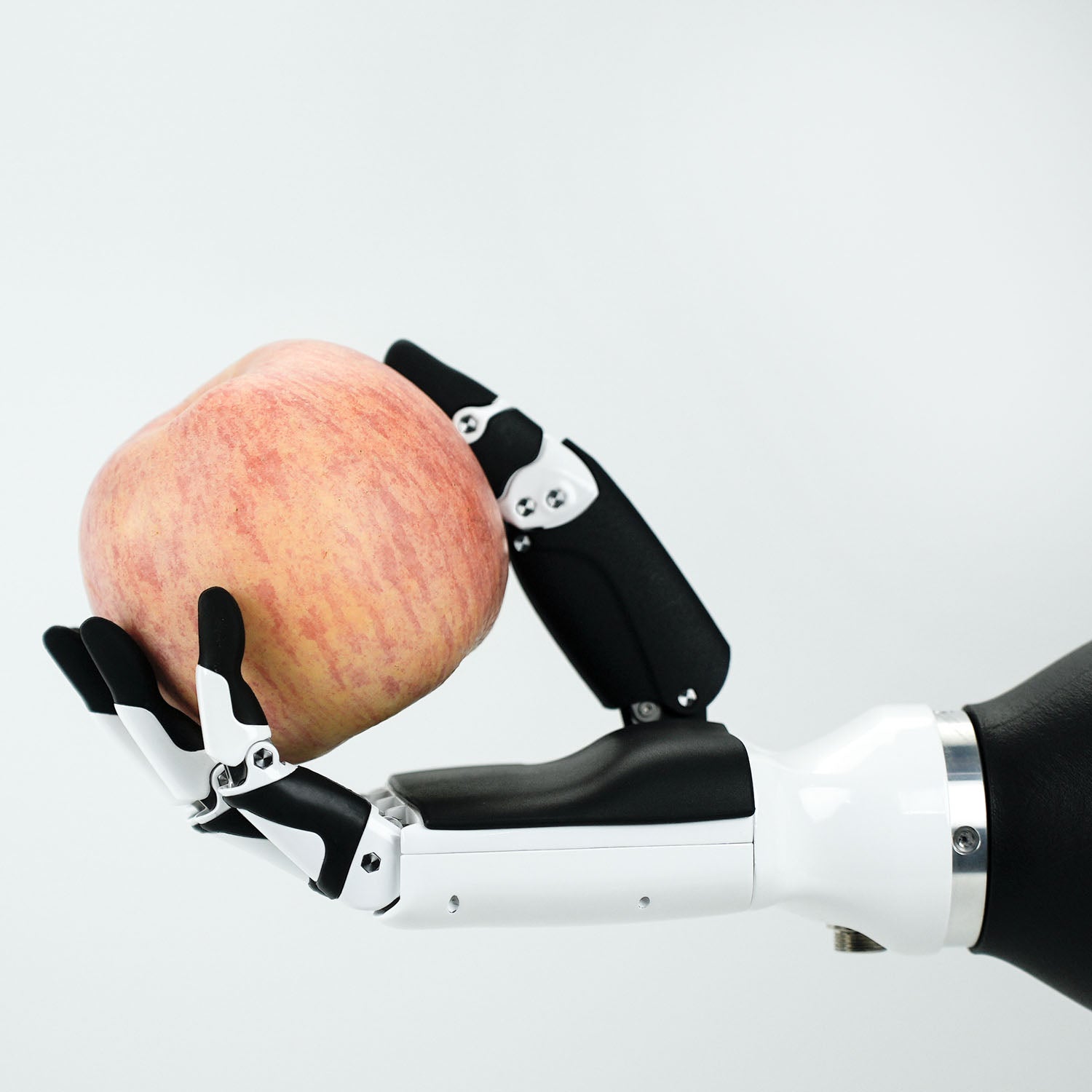

  • Inspire Robot Dexterous Hand Holding Apple
1 7

Inspire Strong Grip Dexterous Hand RH56DFX

Inspire Strong Grip Dexterous Hand RH56DFX

$3,500.00 USD
$3,500.00 USD
Sale Sold out
Hand Orientation
The DFX Series Dexterous Hand is a perfect combination of strength and speed. With a thumb active output force of 1.5kg and a four finger fingertip output force of 1kg. With its integrated absolute position force sensors, it provides real time force feedback.

It also has power-off self-locking, no need to change position when powering off.

Large Grip Force

Small Size and Lightweight

Built-in Force Sensors


Dexterous hand parameters:
  • Control Interface: RS485 (Also available in CAN)
  • Degree of freedom: 6
  • Number of joints: 12
  • Repeat positioning accuracy: ±0.20mm
  • Maximum grip force of thumb: 15N
  • Maximum grip force of four fingers: 10N
  • Grip force resolution: 0.5N
  • Thumb lateral rotation range＞65°
  • thumb lateral rotation speed: 107°/s
  • Thumb bending speed: 70°/s
  • Palm Finger bending speed: 260°/s
  • Weight: 540g
  • Operating Voltage: DC24
  • Peak Current: 2A
