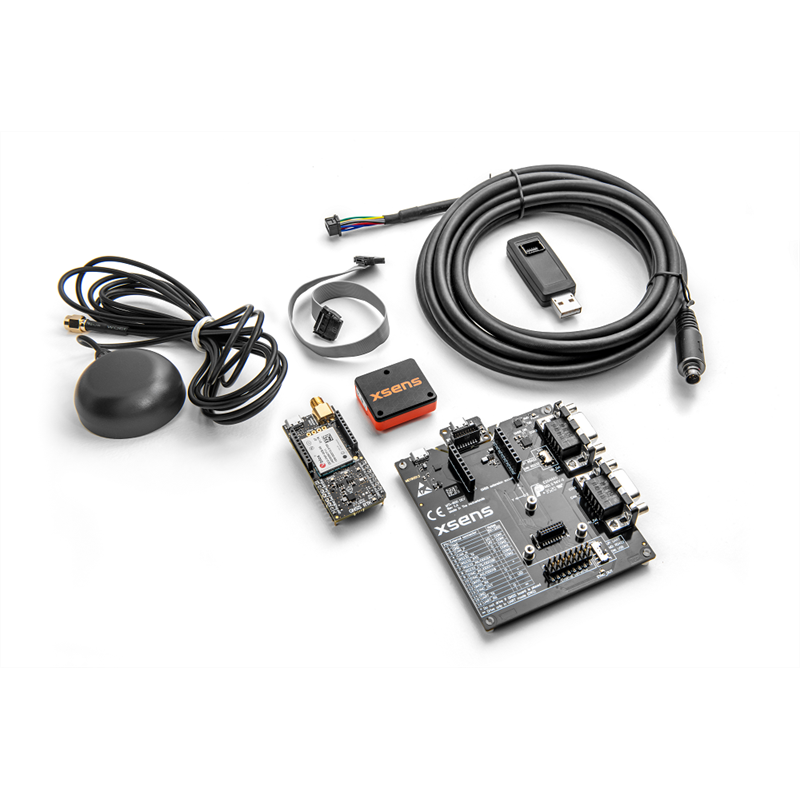

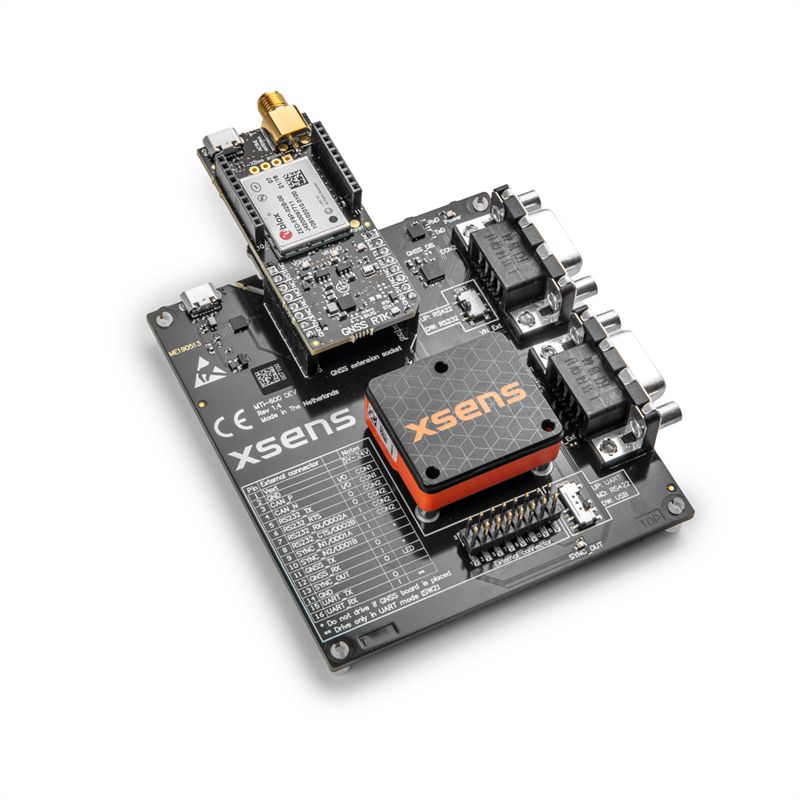

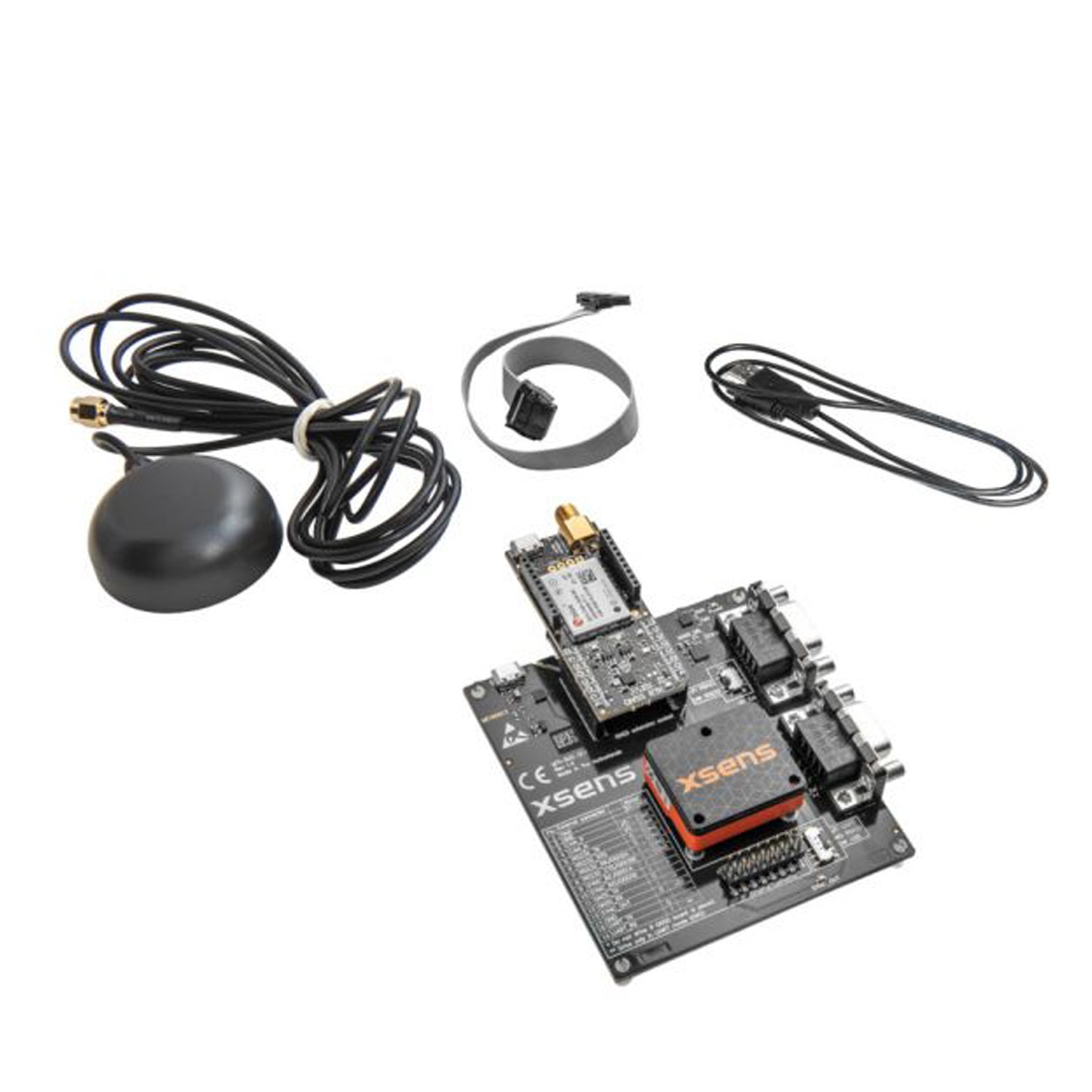

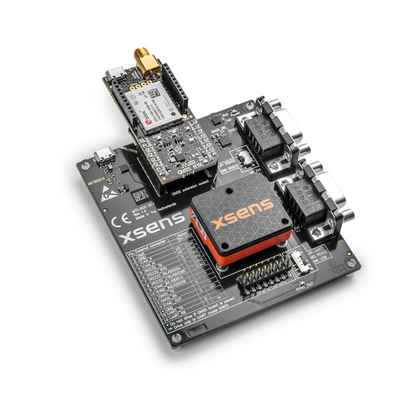

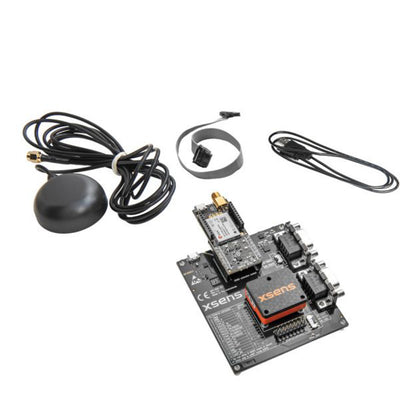

MTi-680 RTK GNSS/INS Development Kit

The MTi-680 represents the highest standard in GNSS/INS (Global Navigation Satellite Systems/inertial navigation systems) when connected to an external real-time kinematic (RTK) GNSS receiver.

It supports RTK GNSS receivers, resulting in smooth high-frequency (400 Hz) centimeter-level position accuracy, even in challenging environments.

It’s lightweight and robust, as well as cost-effective and easy to integrate in your choice of two ways: either with the header facing down, directly mounted on a PCB, or as a standalone, with a flat cable for communication.

The MTi 600-Series is a family of industrial-grade inertial sensor modules offering plenty of options for every application that requires motion data. Offering all functionalities (from IMU to GNSS/INS + RTK) the MTi 600-Series has available modules in both OEM and Rugged form factor.

Whether integrated into a drone, autonomous vehicle, underwater system or a humanoid robot, any MTi-600 sensor will deliver dependable inertial data for real-world conditions. It’s the ideal balance between performance, cost, and reliability.

• Proven reliability: implemented in thousands of designs worldwide
• Complete functionality range (IMU → GNSS INS + RTK)
• OEM and Rugged versions for any integration needs
• Roll/Pitch Accuracy – 0.2° RMS
• Yaw/Heading Accuracy – up to 0.5° RMS
• Position Accuracy – 1 cm + 1 ppm CEP (with RTK)
