OVERVIEW
The MTi-8 is the smallest real-time kinematic (RTK)-enhanced motion tracking module of its kind (12.1 × 12.1 mm). The MTi-8 relieves you of the task of designing, integrating, and maintaining gyroscopes, accelerometers, and other sensors for GNSS/INS functionality.
The Xsens optimized strapdown algorithm (AttitudeEngineTM) performs high-speed dead-reckoning calculations at 1 kHz allowing accurate capture of high frequency motions.
Xsens’ industry-leading sensor fusion algorithm provides high accuracy and sensor auto-calibration in a cost-effective module for a wide range of (embedded) outdoor applications. It relieves users from the design, integration and maintenance of gyroscopes, accelerometers and other sensors.
The MTi-8 is supported by the MT Software Suite which includes MT Manager (GUI for Windows/Linux), SDK, example codes and drivers for many platforms including ROS.
Specifications of MTi-8
|
Accelerometer Full-scale Range:
|
±16g |
| Form factor: | SMD (PLCC-28) |
| Functionality: | RTK GNSS/INS |
| Gyroscope Full-scale Range: | ±2000°/s |
| Interface: | UART, SPI, I²C |
| Position Accuracy: | 1cm +1ppm |
| Roll & Pitch Accuracy: | 0.5° RMS |
| Series: | MTi 1-series |
| Yaw/Heading Accuracy: | 1° RMS |

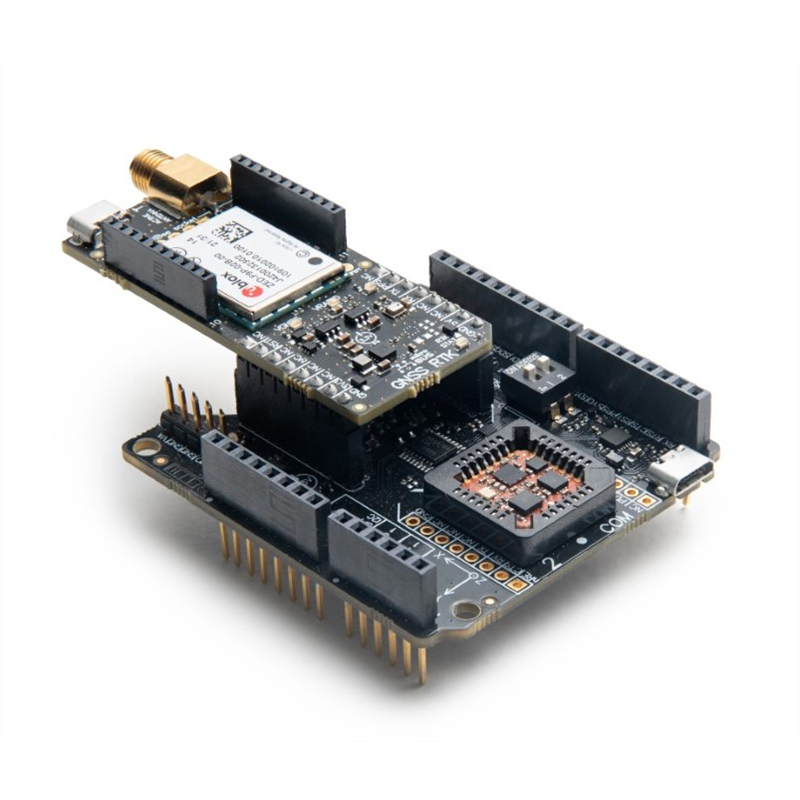

Contents:
- Arduino header compatible development kit
- MTi-8 (mounted)
- Easy to use connection (micro USB), access to I2C/SPI/UART
- Full functionality and pin configuration
- Intuitive MT Software Suite (Linux / Windows GUI)
- SDK with drivers and embedded software examples

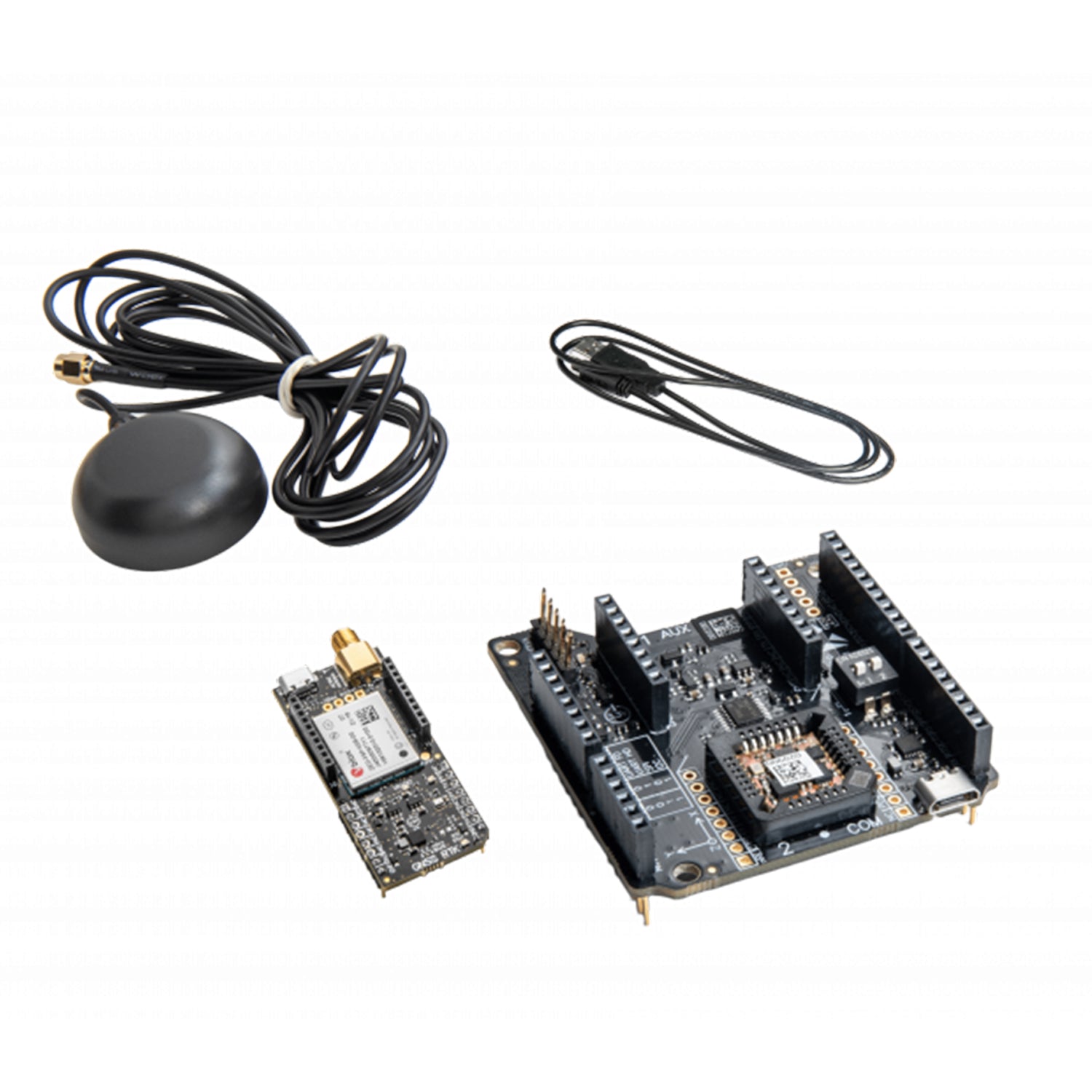

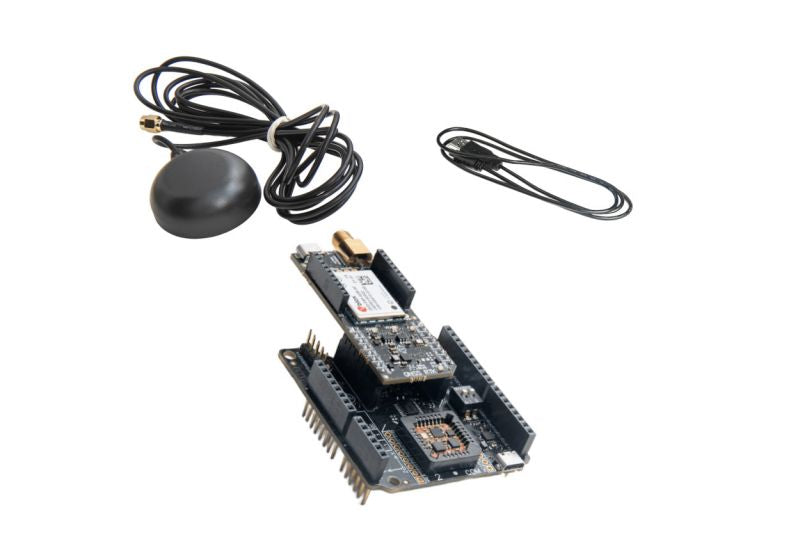

- Shield board, GNSS daughter card, GNSS antenna and USB cable
