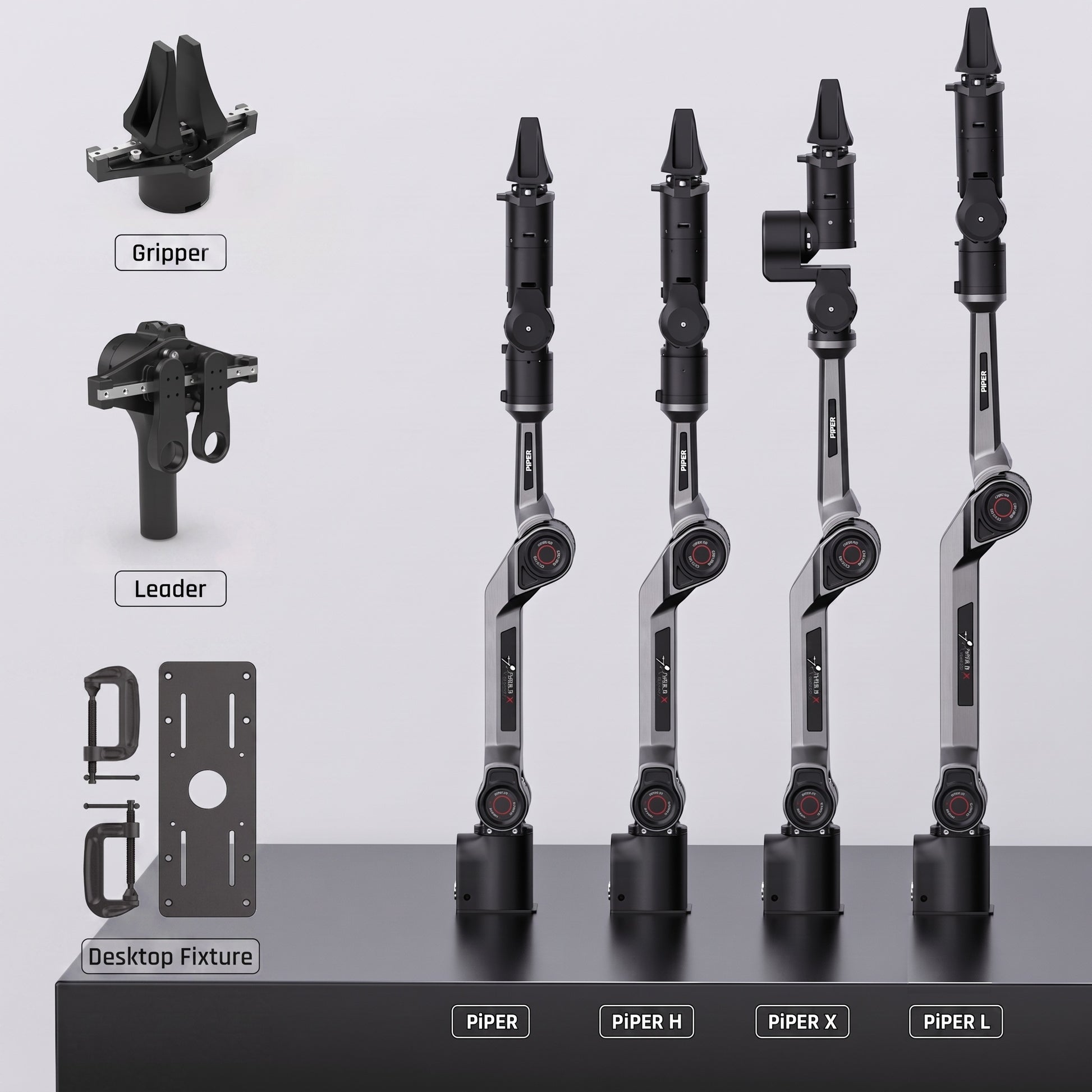

  • AgileX PiPER_All Products varientions and End Effector Options

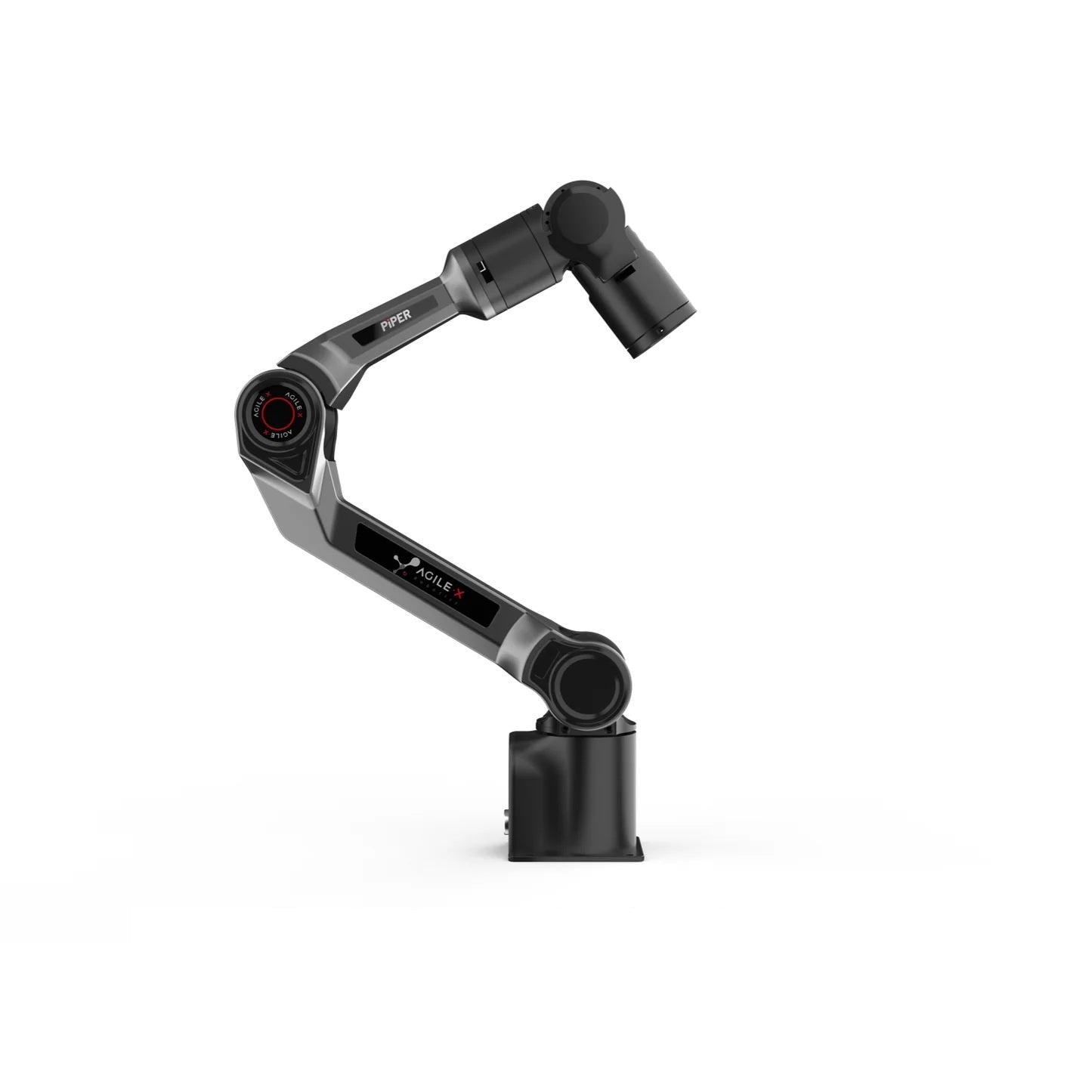

  • AgileX PiPER Without End Effector

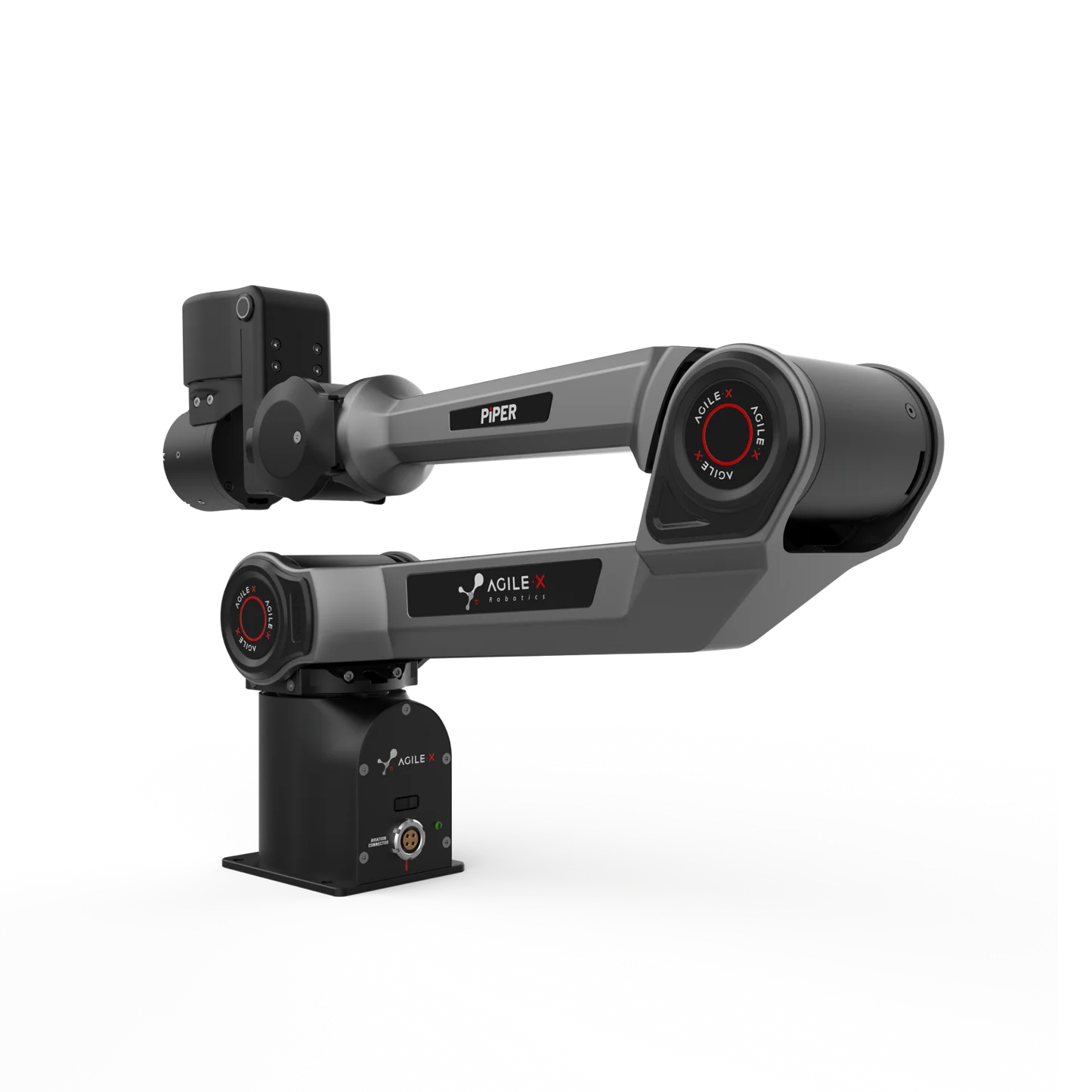

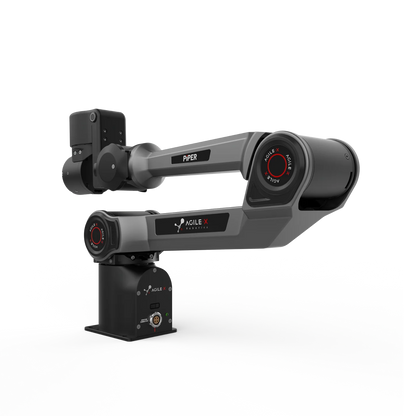

  • AgileX_PiperX_Without Gripper

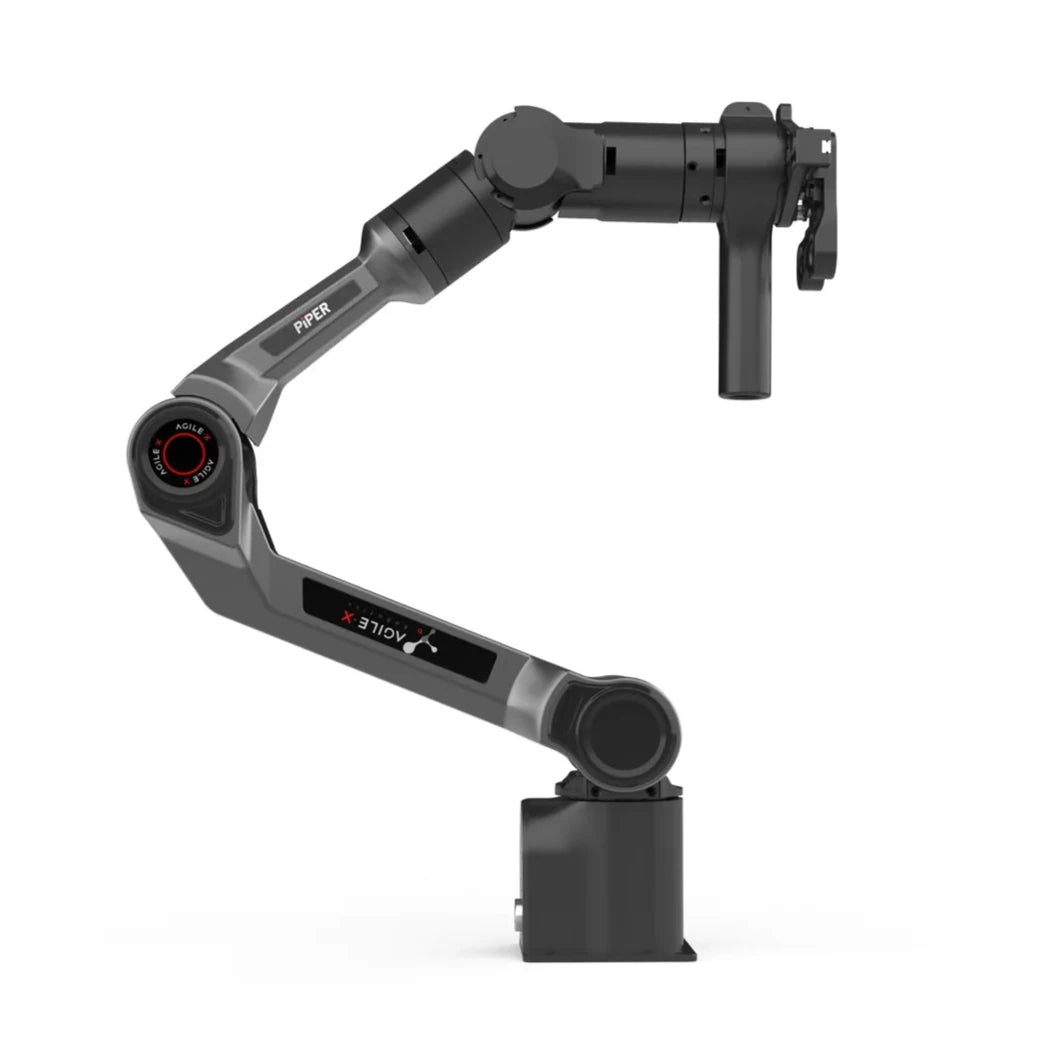

  • AgileX Piper Robot Arm - With Leader End Effector

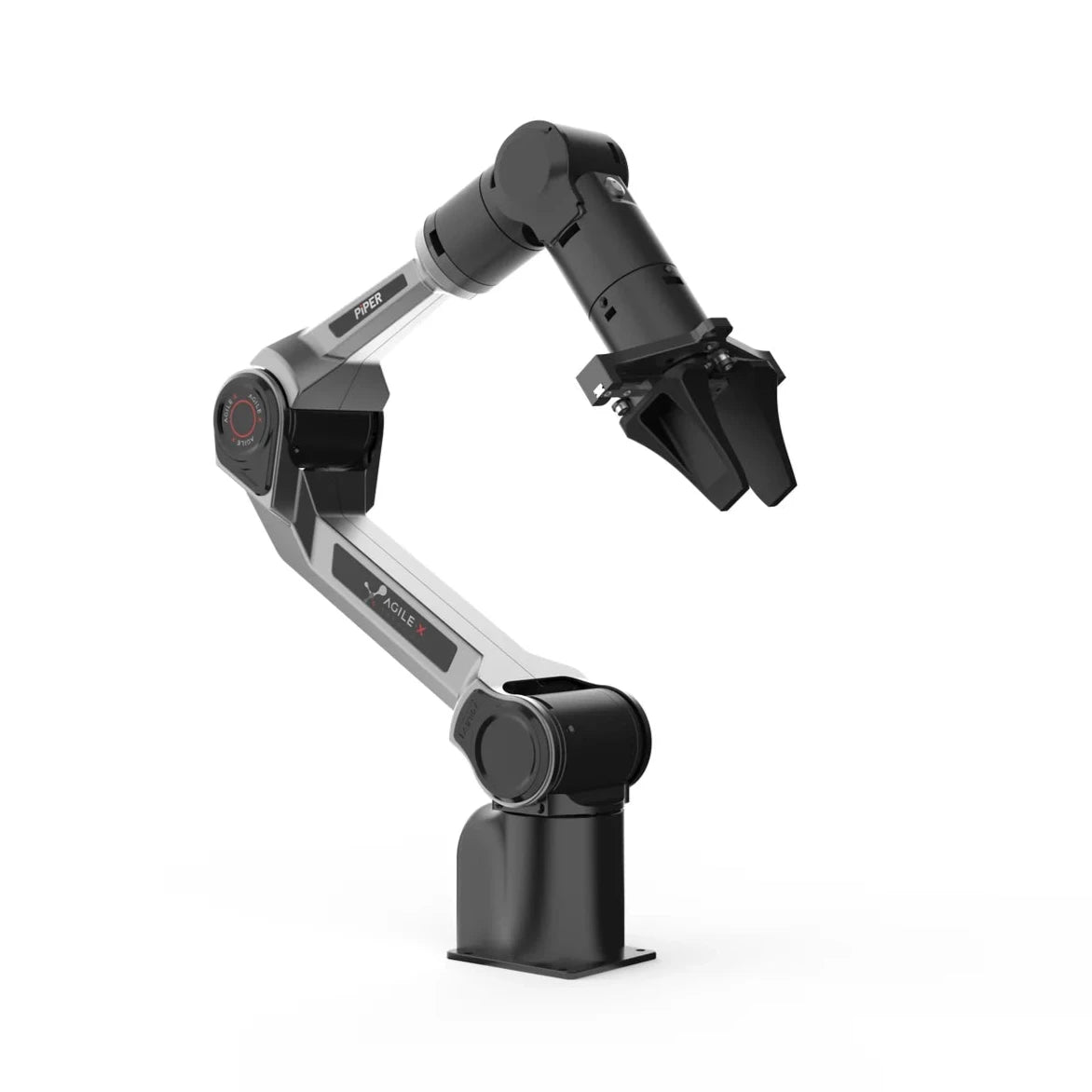

  • AgileX Piper Robot Arm

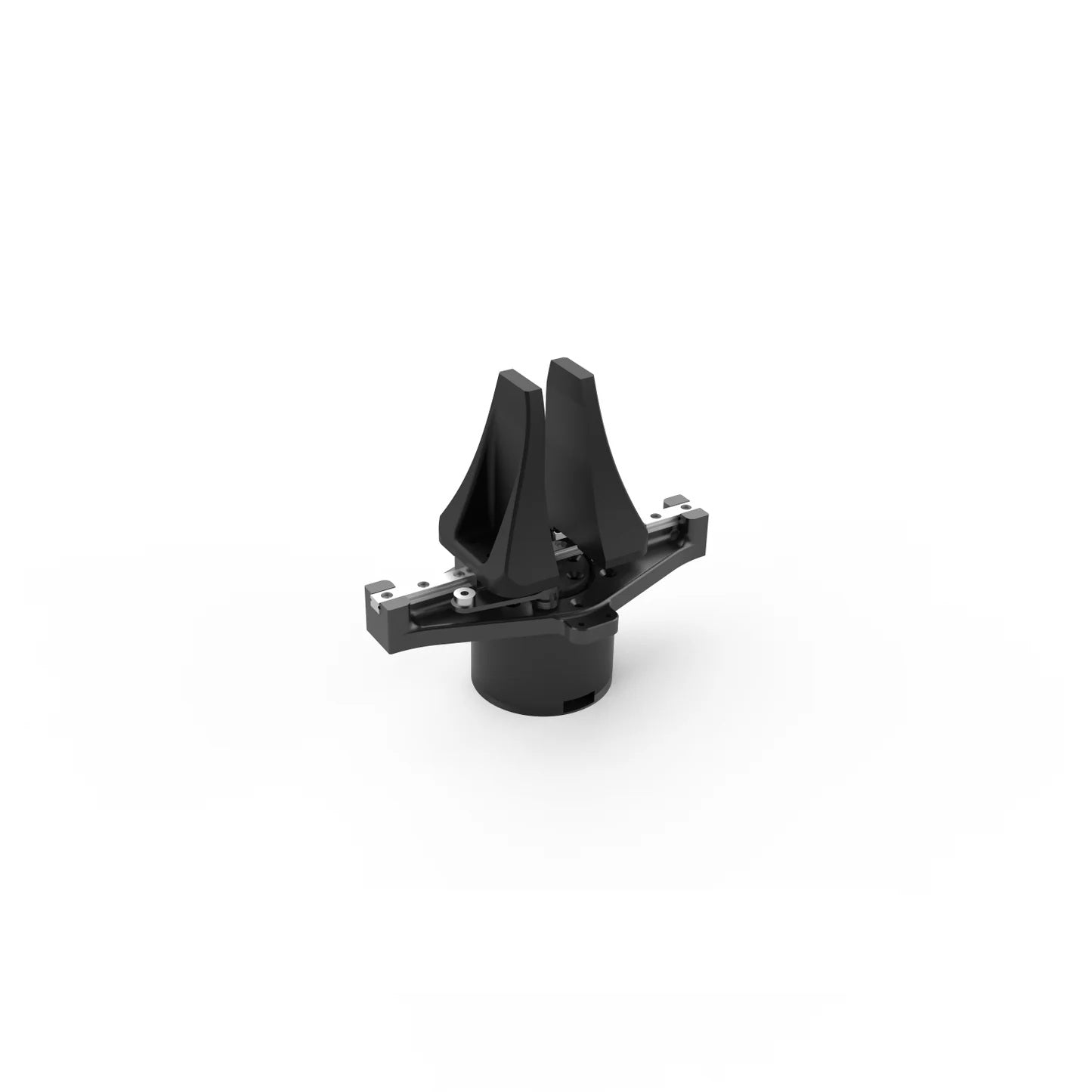

  • AgileX PiPER-End Effector: Gripper

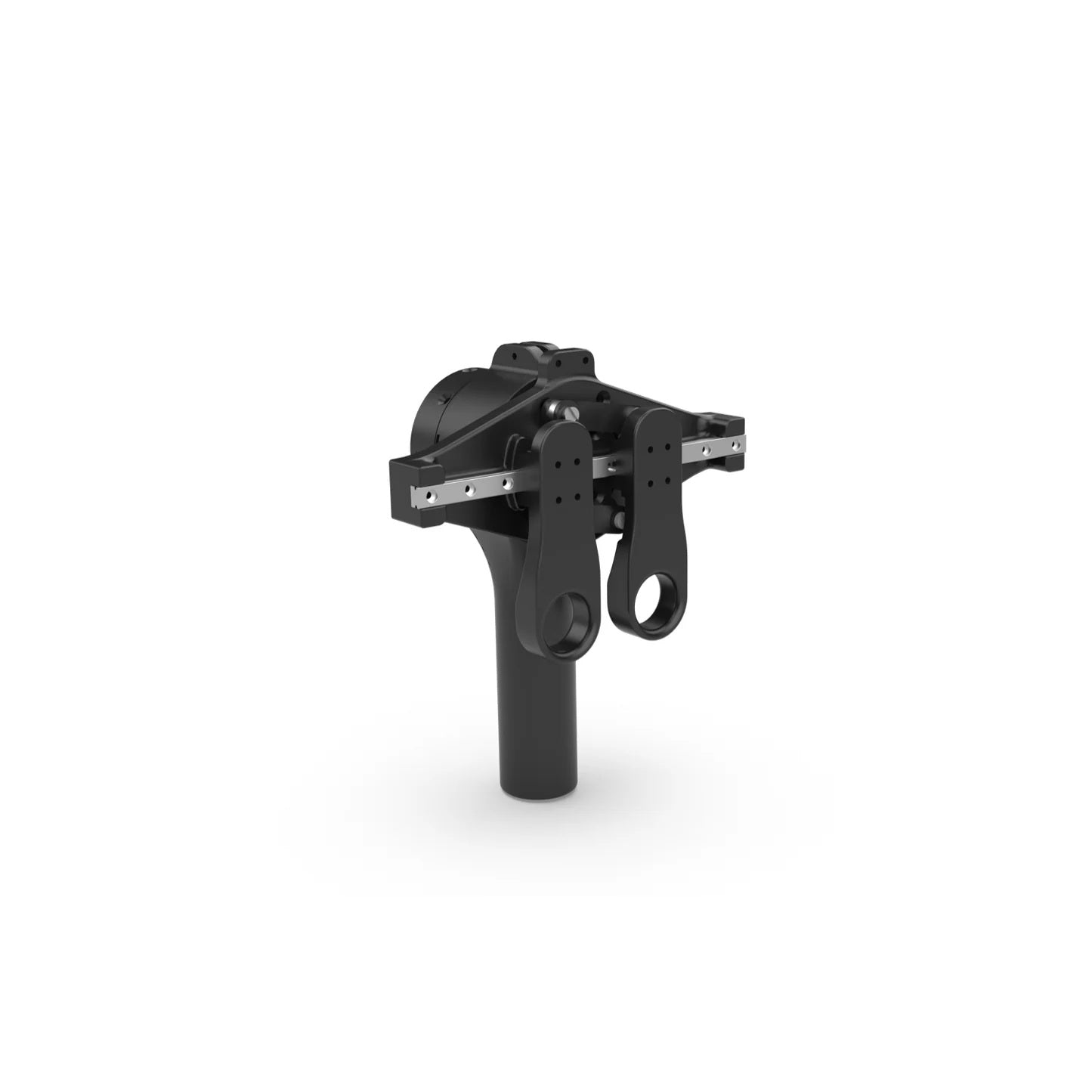

  • AgileX PiPER-End Effector: Leader

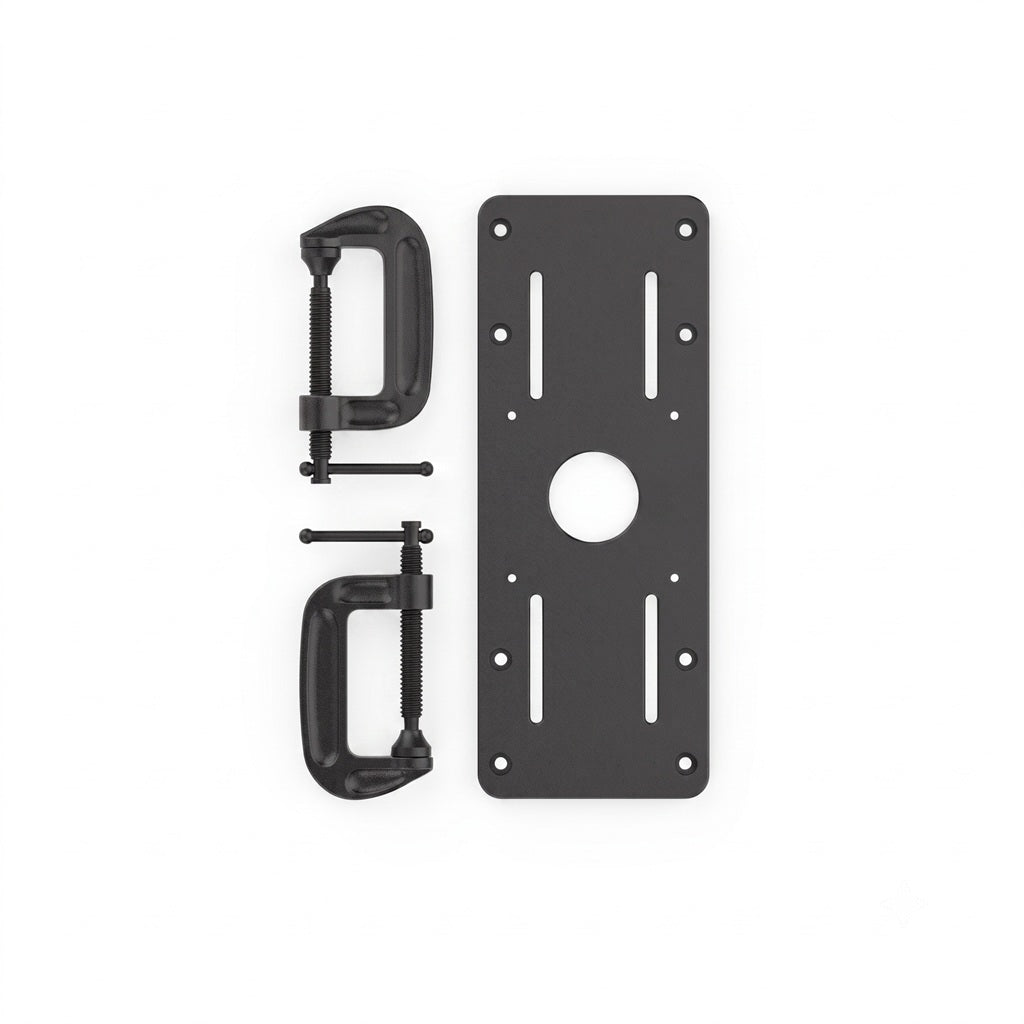

  • AgileX Piper-Desktop Mount
1 9

AgileX PiPER Robotic Arm

AgileX PiPER Robotic Arm

$3,200.00 USD
$3,200.00 USD
Sale Sold out
Type
End Effector Bundle (includes a Desktop Fixture)

OVERVIEW

The Agile X PiPER is a lightweight robotic arm with six integrated joint motors for smooth, precise control. Weighing just 4.2kg, it is made from durable yet lightweight materials for versatile use across various environments. PiPER comes in three other versions for specific purposes:

  • PiPER H: Handles up to 2kg payload.
  • PiPER L: Has a longer reach (max 750mm).
  • PiPER X: Can operate in compact environments due to enhanced J4/J5 design.

FEATURES

Lightweight and Stable Payload: PiPER is compact powerful, supporting a stable 1.5kg or 2kg payload while maintaining agility in motion.

Precision Control: Equipped with advanced joint motors and path planning, PiPER delivers precise and smooth operation, perfect for detailed tasks.

Harsh Environment Adaptability: Designed to operate in extreme conditions ranging from -20℃ to 50℃, PiPER performs reliably in tough environments.

Intuitive User Interface: The modern tablet-based interface leverages a powerful system, enabling users to effortlessly build and control their applications.

Open Source Support: PiPER can be controlled via Python API and supports ROS2, offering flexibility for developers and ensuring smooth integration across a variety of projects.

The End Effector Bundle Option: PiPER can be paired with the Gripper to perform tasks, or Gripper+Leader for behavioral cloning and AI training purposes. Leader is a hand-held control handle that acts as a teacher, and Gripper or (the Follower) mirrors the leader's exact movements.

TECHNICAL SPECIFICATIONS

PiPER PiPER L PiPER H PiPER X
DOF 6 6 6 6
Payload 1.5kg 1.5kg 2kg 1.5kg
Weight 4.2kg 4.5kg 4.5kg 4.5kg
Repeatability  +-0.1mm  +-0.1mm  +-0.1mm  +-0.1mm
Reach 626mm 750mm 636mm 669mm
Input Voltage DC24V DC24V DC24V DC24V
J4 Motion Range -100°/112° -127°/127° -127°/127° -90°/90°
J5 Motion Range -75°/75° -90°/90° -90°/90° -90°/90°
Material Aluminum & Plastic Aluminum & Plastic Aluminum & Plastic Aluminum & Plastic
Controller Integrated Integrated Integrated Integrated
