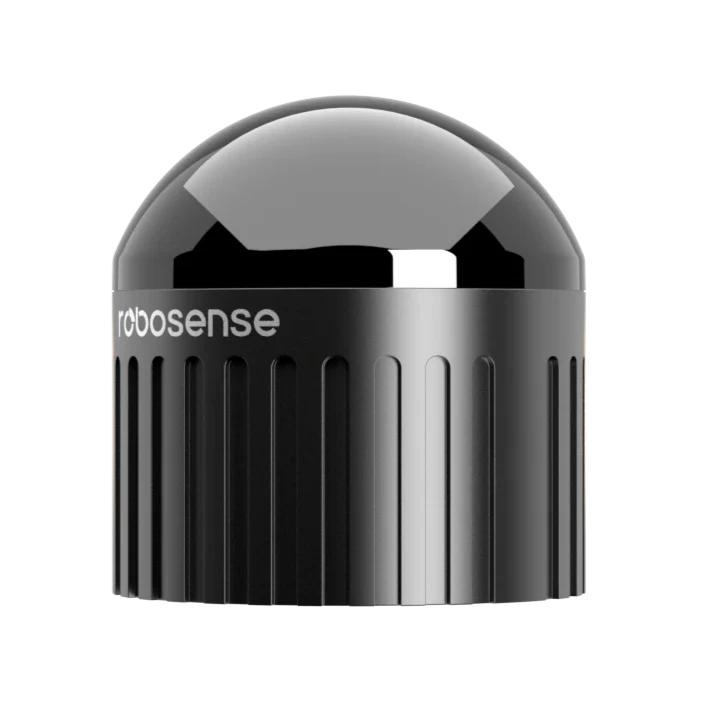

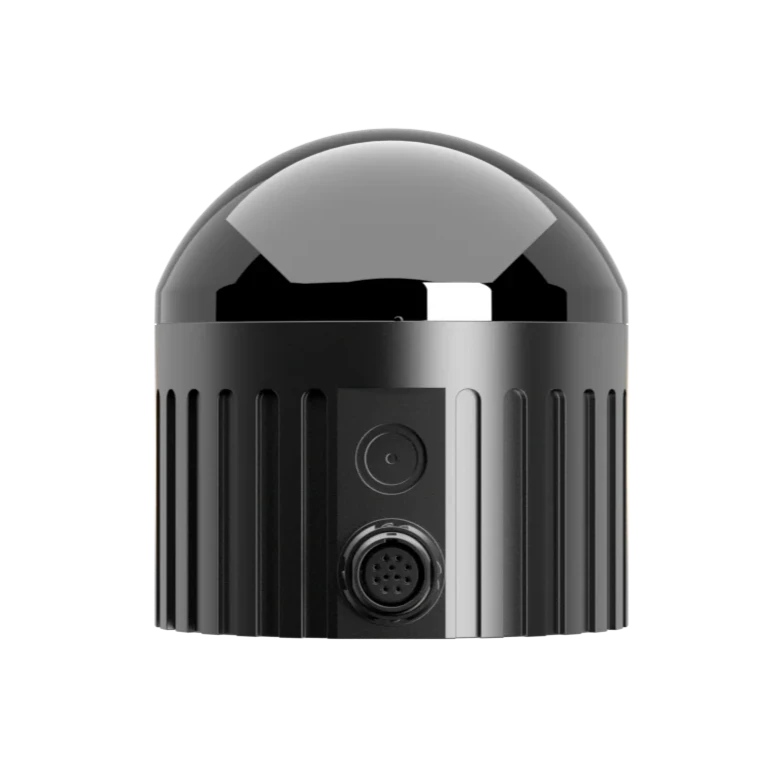

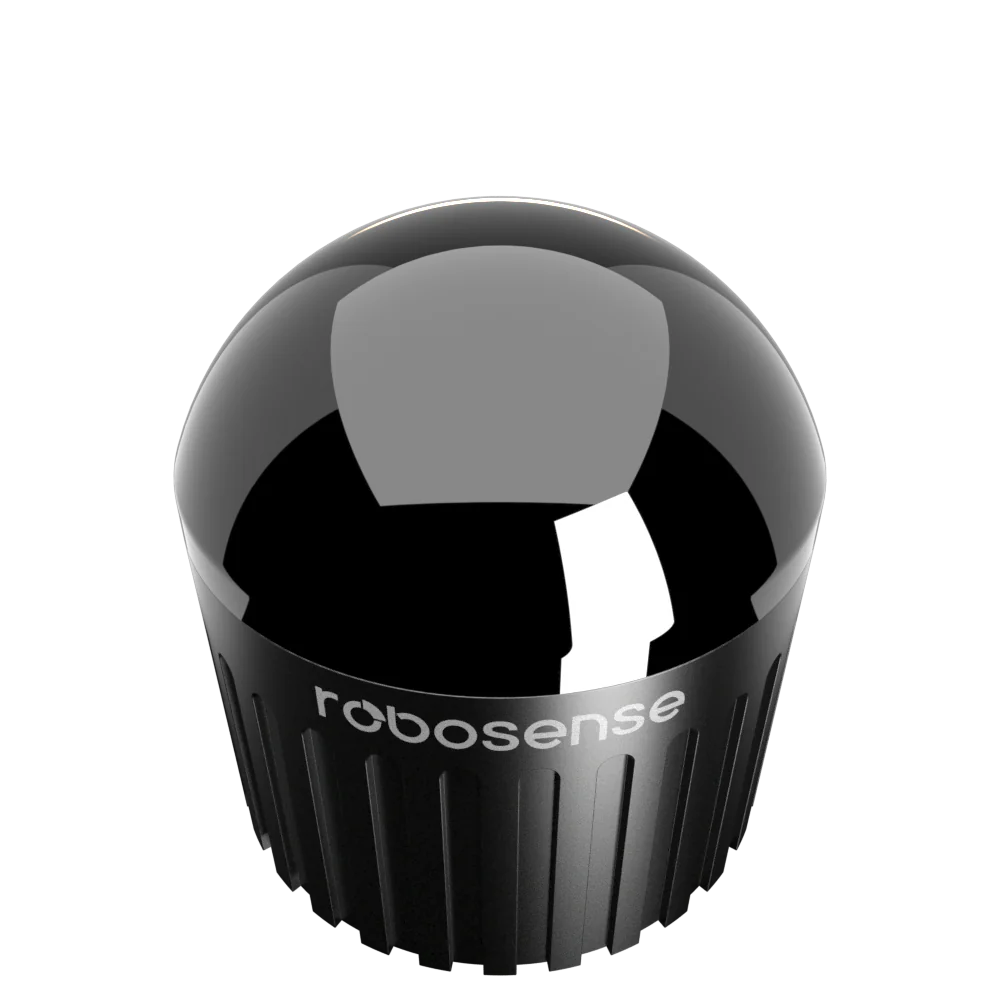

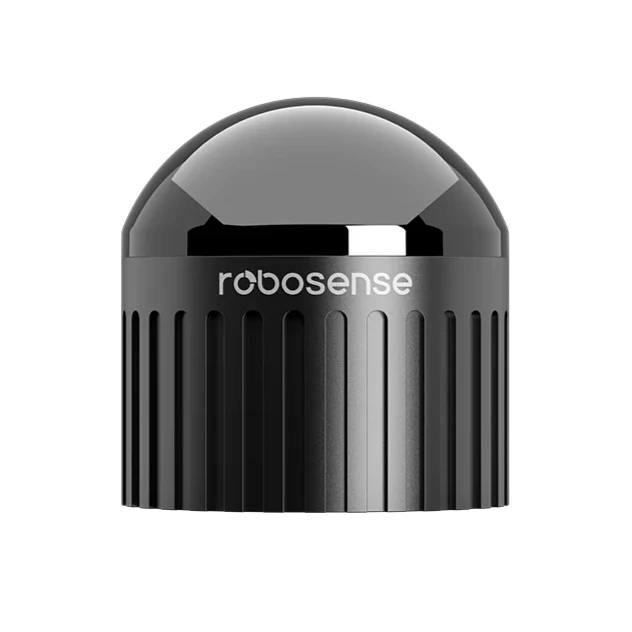

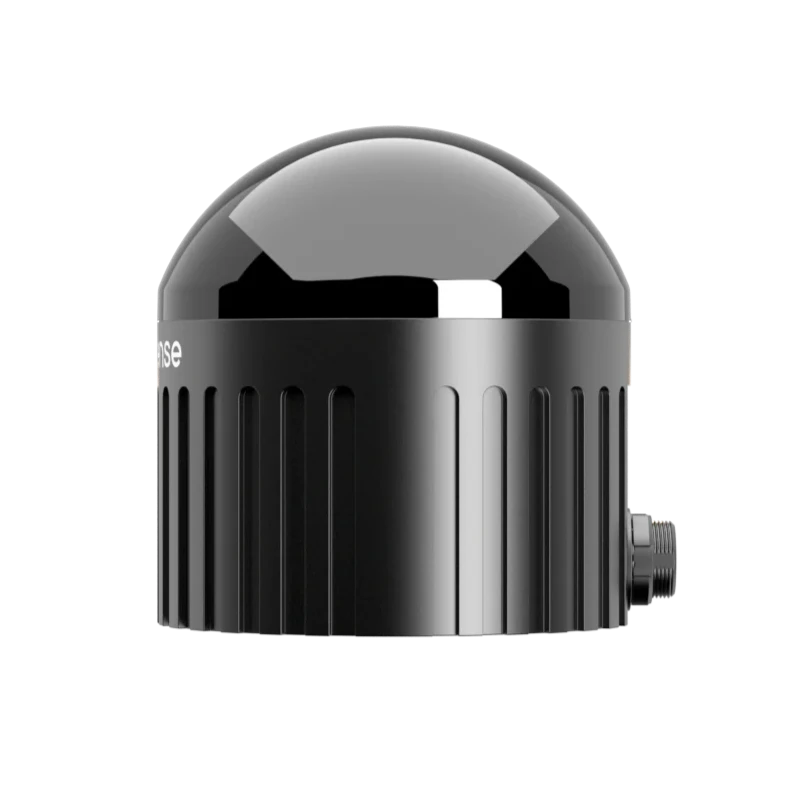

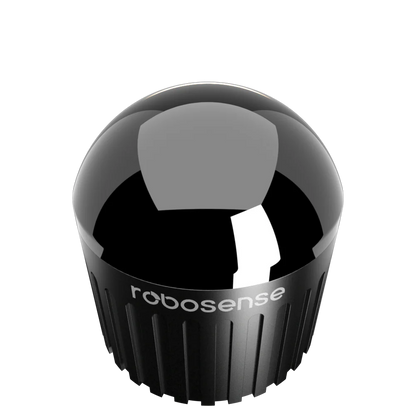

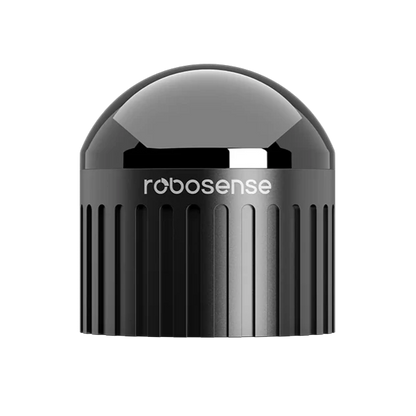

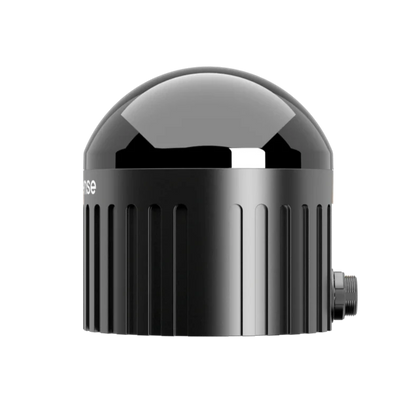

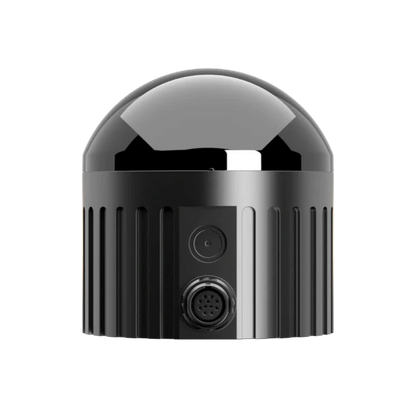

Robosense Airy LiDAR

Robosense Airy LiDAR

Regular price $1,099.00 USD
Regular price Sale price $1,099.00 USD
Sale Sold out

OVERVIEW:

Robosense Airy, the first digitalization LiDAR product under the R platform, is an ultra-wide HD LiDAR designed for Al robots, equipped with the new generation of receiver systems and adopting advanced VCSEL and SPAD-SoC chips.

Airy features a compact design that delivers outstanding point cloud quality and performance. With a unique hemispherical FoV, a 96-beam high-definition 3D point cloud, and a maximum detection range of 60 meters, Airy supports a wide range of functions including navigation, mapping, recognition, and obstacle avoidance. It's available to be applied to Al robotics products such as AGVs, AMRs, unmanned forklifts, delivery robots, cleaning robots, lawn-mowing robots, and service robots.

Airy emits millions of laser beams per second to scan the environment, making it unaffected by environmental lights, which allows robots to operate continuously in various conditions, whether indoors or outdoors, day or night.


PRODUCT FEATURES:

    • Hemispherical Ultra-Wide FOV
    • 96-beam High Definition Point Clouds



    SPECIFICATIONS:

    Wavelength 940nm # of Lines 96
    Range 30m@10% Laser Safety Class 1 Eye Safety
    Maximum Range 60m Accuracy 1~1.5cm (1 Sigma)
    FOV (HxV) 360º x 90º Blind Spot <0.1m
    Angular Resolution (H) 0.4º Angular Resolution (V) 0.94º
    Frame rate (adjustable) 5Hz / 10Hz Power Consumption <8W
    Points per second (single return mode) 1,380,000pts/s Points per second (dual return mode) 2,760,000pts/s
    Ethernet connection 100Base-TX Output UDP packets over ethernet
    Dimensions (HxWxD) 60 x 60 x 63mm UDP packet include

    Spatial Coordinates

    Intensity Timestamp, etc.

    Weight (without cabling) 230g ±20g Operating voltage 9V ~ 32V
    Operating temperature -40°C - +60°C Storage temperature -40º ~ +85ºC
    Time synchronization gPTP, PTP Ingress protection IP67, I P6K9K



    *Please note, shipping, tax and VAT are not included in listed price.
