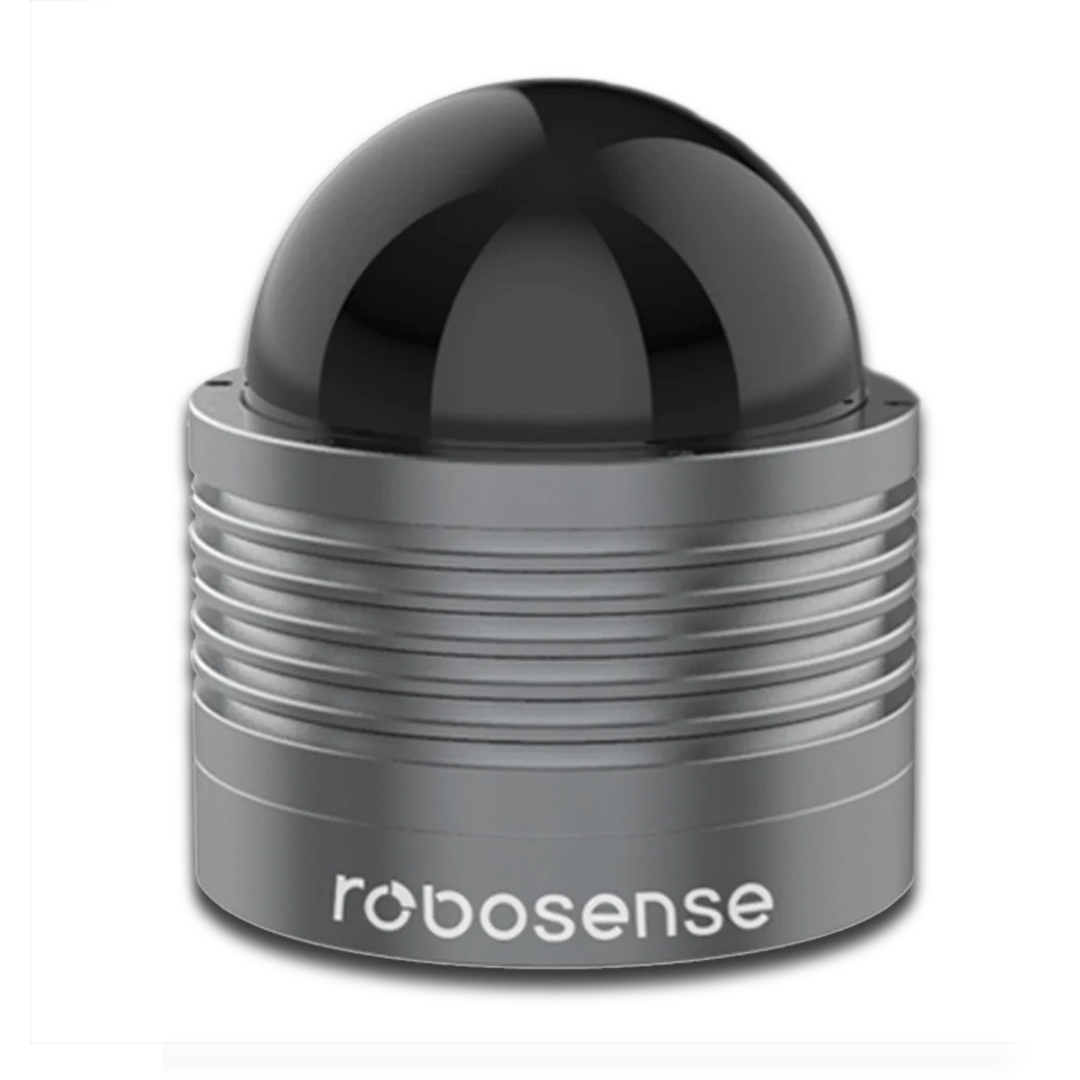

Robosense BPearl LiDAR

Robosense BPearl LiDAR

Regular price $3,700.00 USD
Regular price Sale price $3,700.00 USD
Sale Sold out

OVERVIEW:

The Robosense BPearl LiDAR is known for its Hemispherical Super Wide Field of View (FOV) and Short-range Blind Spot detection capabilities. Unlock unprecedented levels of precision and safety for autonomous vehicles and industrial applications. Revolutionize perception and navigate confidently in complex environments.


PRODUCT FEATURES:

    • Unique FoV designed for near-field blind-spots detection
    • Ultra-wide field of view (360°Horizontal FoV,Hemispherical FoV)
    • ≤10cm Blind-spot detection area
    • Stable and reliable design for operating vehicle



    SPECIFICATIONS:

    # of Lines 32 Laser Wavelength 905nm
    Laser Safety Class 1 eye safe Blind Spot ≤0.1m
    Range 100m(30m@10% NIST)  Range Accuracy(Typical) ±1cm
    Horizontal FoV 360° Vertical FoV 90°
    Horizontal  Resolution 0.1°/0.2°/0.4° Vertical Resolution 2.81°
    Frame Rate 5Hz/10Hz/20Hz Rotation Speed 300/600/1200rpm (5/10/20Hz)
    Points Per Second 576,000pts/s(Single Return)   1,152,000pts/s(Dual Return)  UDP Packet include Spatial Coordinates, Intensity, Timestamp, etc.
    Ethernet Connection 100Base-TX Output UDP packets over Ethernet
    Operating Voltage 9V – 32V Operating Temperature -40°C ~ +60°C
    Power Consumption 12W Storage Temperature -40°C ~ +85°C
    Ingress Protection IP67、IP6K9K Time Synonization $GPRMC with 1PPS, PTP&gPTP
    Dimension φ100mm *  H111 mm Weight (without cabling) ~0.89 kg
