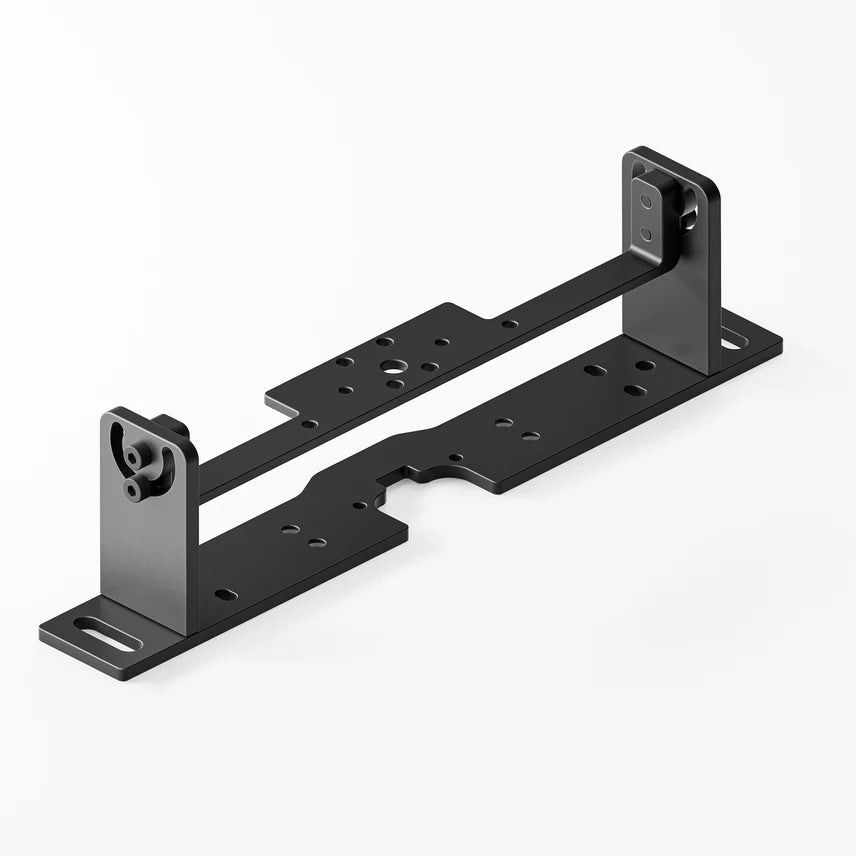

• A black metal mounting bracket with two vertical flanges and multiple screw holes, shown on a clean white background.

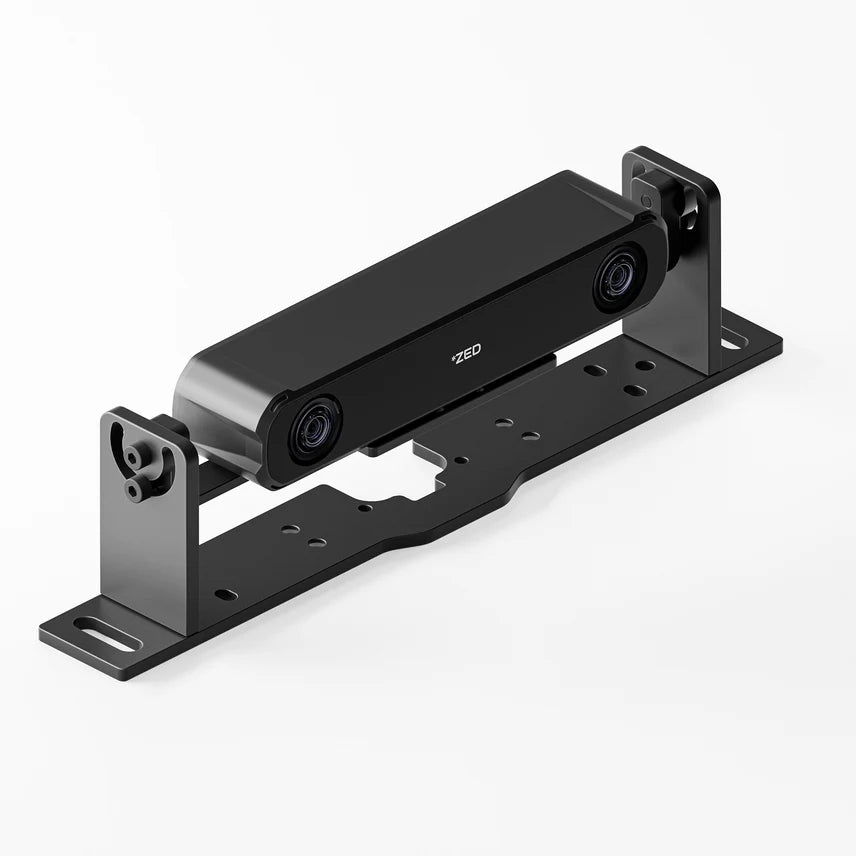

  • A black Oreo brand 3D depth camera mounted on a matching black metal bracket, shown on a clean white background.

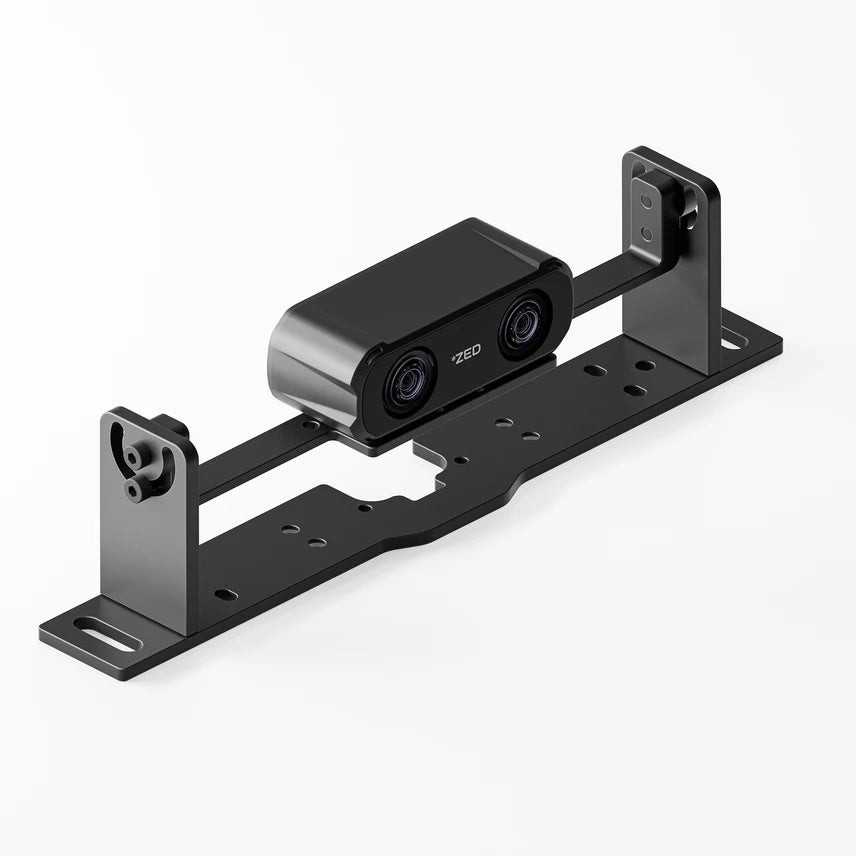

  • Black metal bracket with a camera on a white background

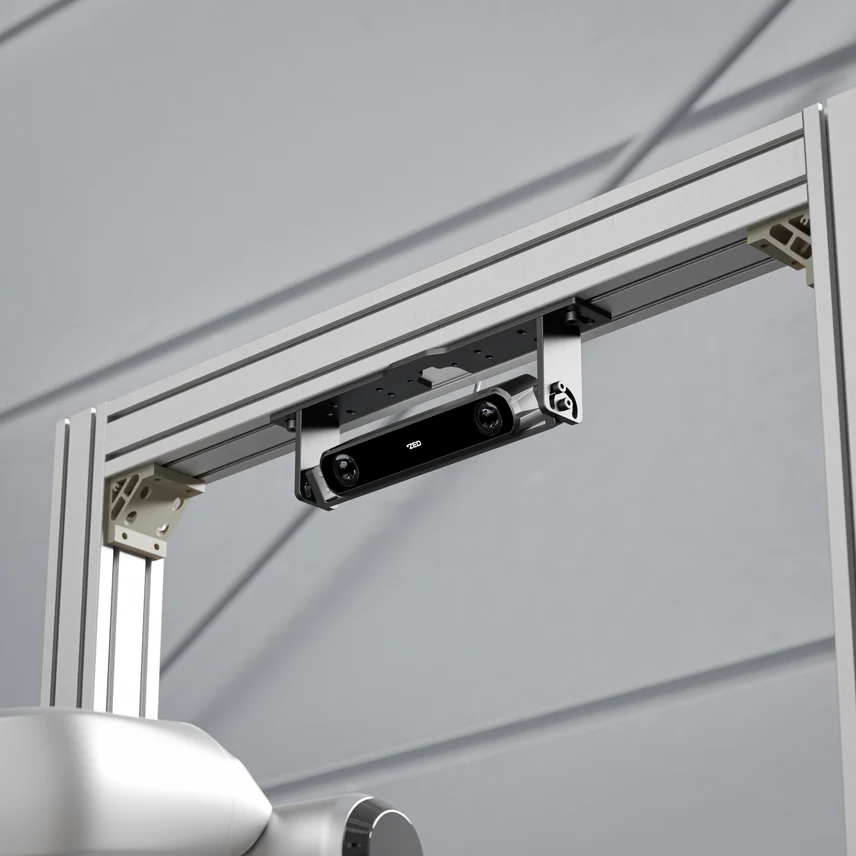

  • Ceiling-mounted security camera with metal frame on a gray background
  • A black metal mounting bracket with two vertical flanges and multiple pre-drilled screw holes, shown on a clean white background.
  • Black metal mounting bracket with dimension annotations showing 39mm, 62mm, and 280mm on a light gray background.

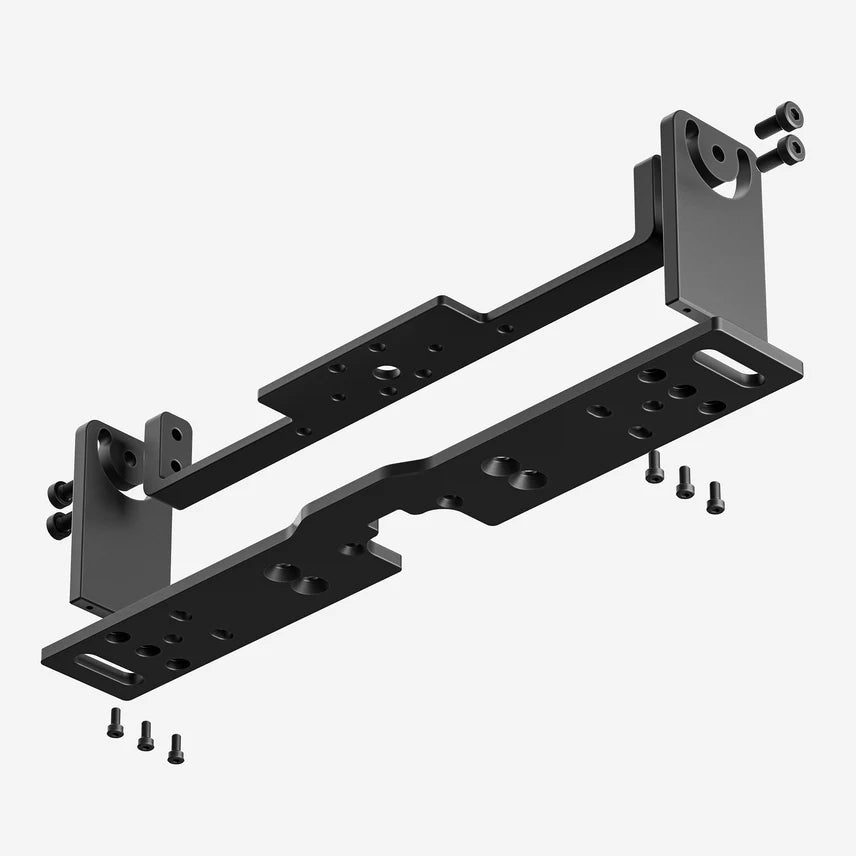

  • A black metal mounting bracket assembly with several small screws shown below it, photographed on a clean light gray background.
1 7

Stereolabs

StereoLabs Tiltable Camera Mount For ZED Cameras

StereoLabs Tiltable Camera Mount For ZED Cameras

$129.00 USD
$129.00 USD
Sale Sold out

Taxes, US duties (if applicable), and shipping calculated at checkout.

OVERVIEW

The StereoLabs Tiltable Camera Mount is a low-profile, adjustable mount built around a rigid machined aluminum bar. Set the camera angle, lock it in place, and keep a stable, repeatable position across walls, ceilings, enclosures and robot or vehicle rigs.

Compatible with: StereoLabs ZED 2i, ZED X, ZED X Mini, ZED X Nano, ZED X One GS, ZED X One 4K and ZED X One S.

STEREOLABS TILTABLE CAMERA MOUNT FEATURES

  • Rigid Aluminum Construction: A 4 mm (0.16") thick machined aluminum bar keeps the camera stable and calibration consistent.
  • Full Tilt Adjustment: Quickly set the optimal camera angle and lock it securely.
  • Modular Design: The base and support plates detach and can be used independently for a low-profile or raised setup.
  • Flexible Mounting: Upright, back-mounted, reversed back-mounted or inverted for ceiling use, on any surface with M6 screws.
  • Broad Camera Compatibility: Fits StereoLabs Zed camera series.

STEREOLABS TILTABLE CAMERA MOUNT SPECIFICATIONS

Material Machined aluminum, 4 mm (0.16") thick
Dimensions 250 x 38 x 62 mm (9.84 x 1.50 x 2.44 in)
Surface Mounting M6 screws
Compatible Cameras ZED 2i, ZED X, ZED X Mini, ZED X Nano, ZED X One GS / 4K / S
Country of Origin France
