OVERVIEW

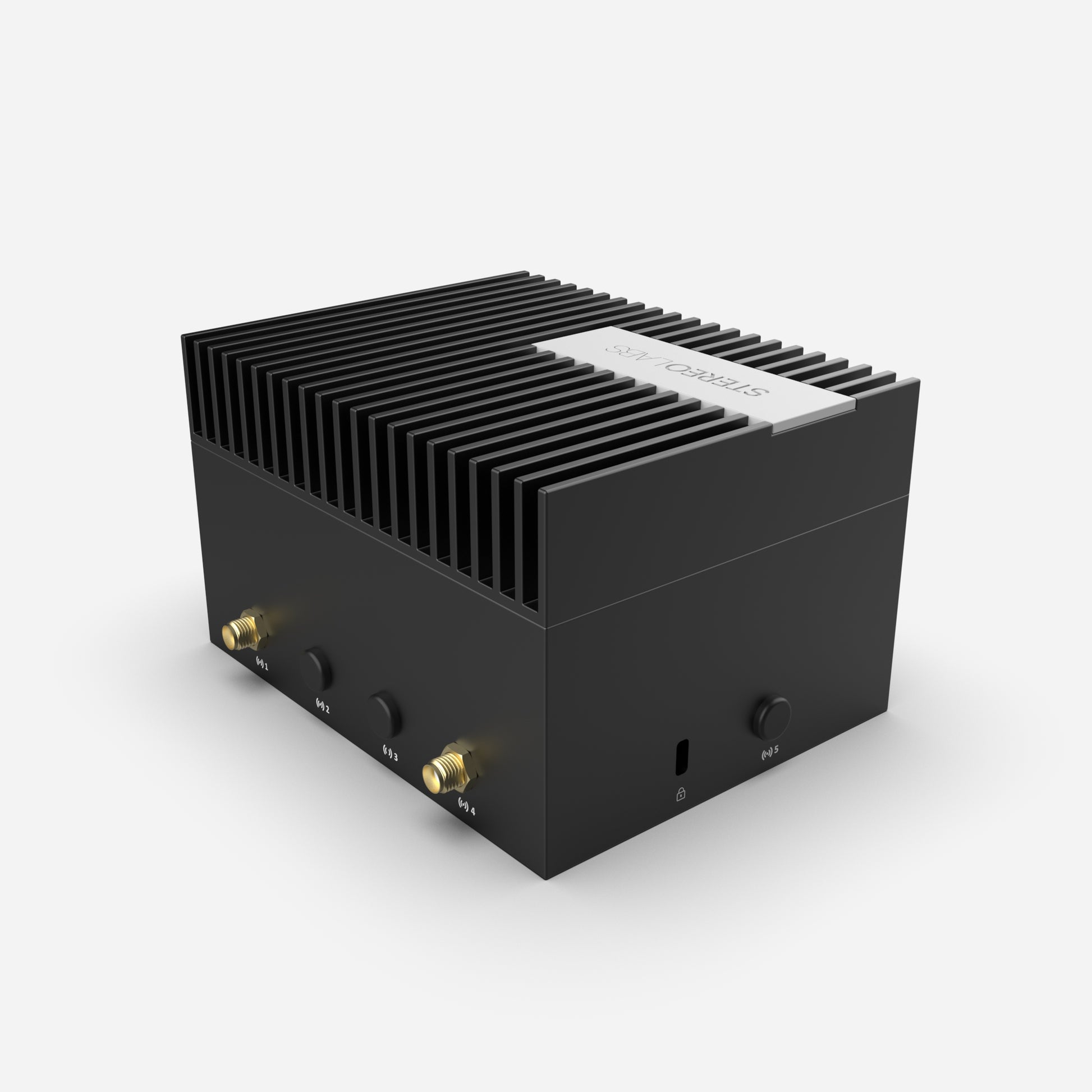

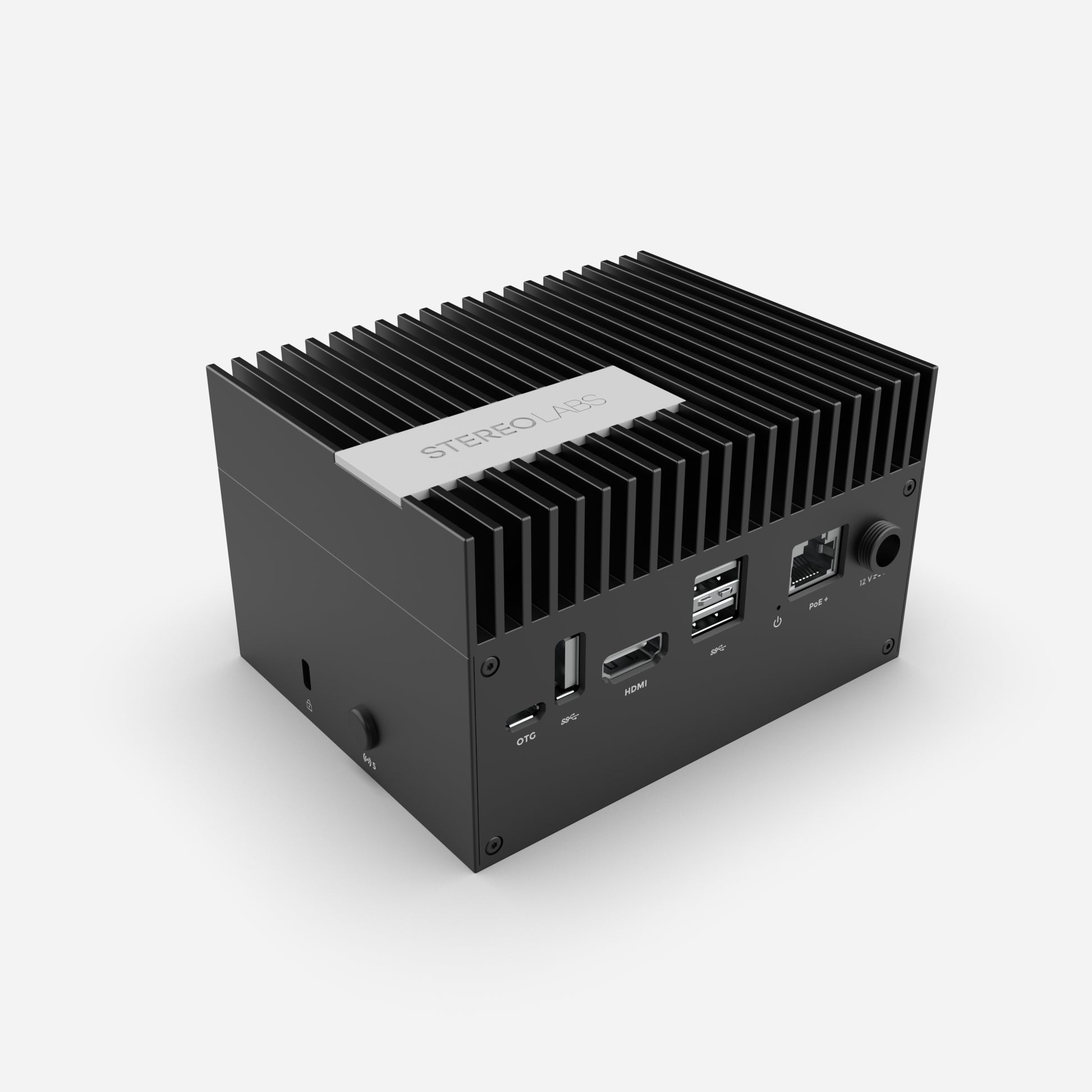

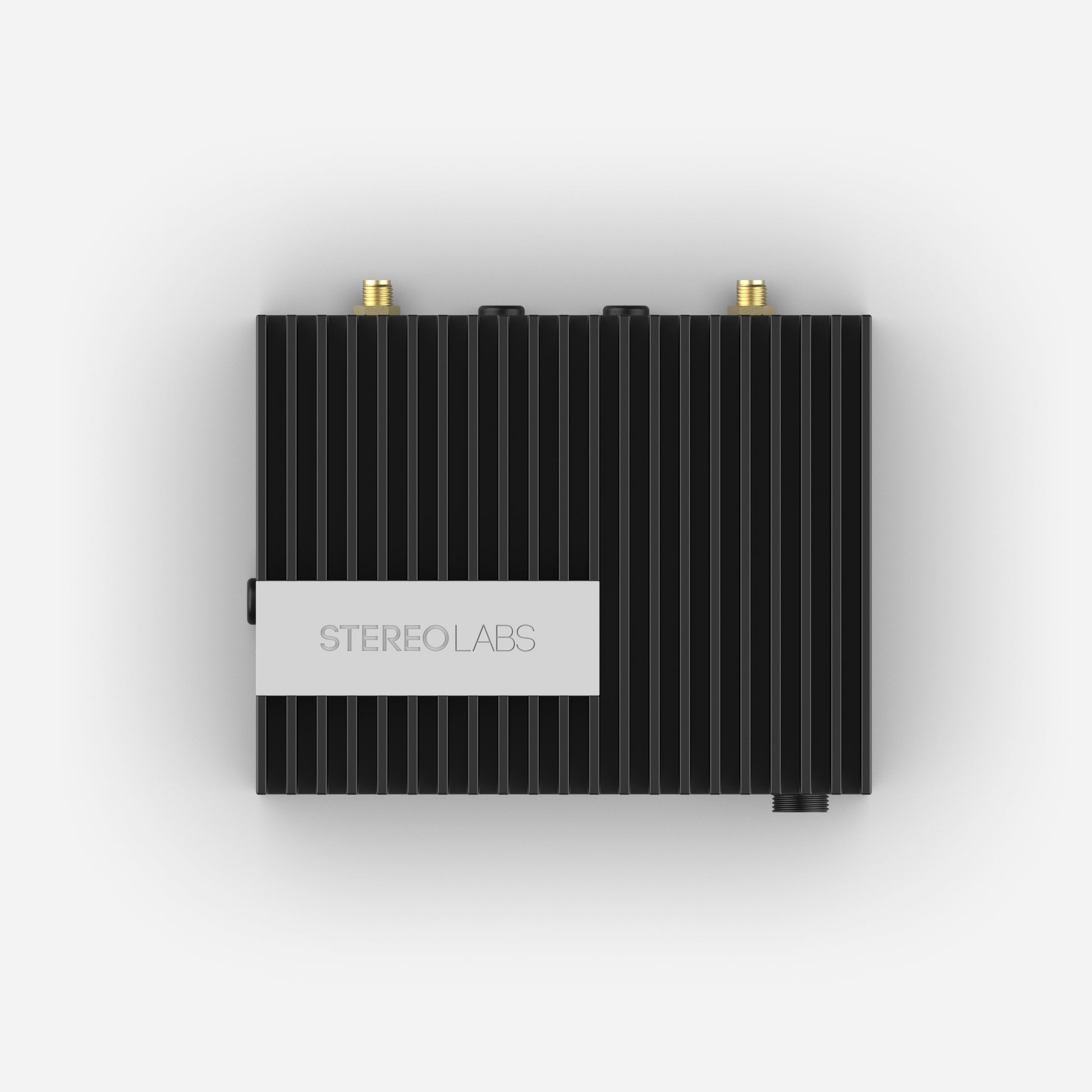

The ZED Box Orin NX 8GB is a compact, industrial-grade AI edge computer built on the NVIDIA® Jetson™ Orin NX 8GB module. Delivering up to 70 TOPS of AI performance in a fanless aluminum case, it provides the computing power needed for real-time 3D perception and machine learning projects. It comes with four GMSL2 camera ports, make it built for advanced computer vision on multi-stereo-camera setups as the middle option in the Zed Box series.
WHAT'S INCLUDED IN THE BOX
- 1x ZED Box with Orin NX 8GB + selected optional parts
- 1x 1-to-4 GMSL2 cable
- 2x 2.4/5GHz WiFi antennas
- 1x Mini-USB to USB cable
- 1x Power supply
- 2x Mounting brackets
ZED BOX ORIN NX 8GB FEATURES
- Designed for Stereo Cameras: With three USB 3.0 Type-A ports and a quad GMSL2 FAKRA port, the ZED Box Orin NX 8GB unleashes the full capabilities of the ZED camera series and beyond. It natively supports all current Stereolabs depth camera models, including up to four ZED X GS / ZED X Mini GS / ZED X One GS / ZED 2i / ZED Mini, and up to two ZED One 4K.
- 70 TOPS of Edge AI Performance: The NVIDIA Jetson Orin NX 8GB module combines an Ampere architecture GPU with Tensor Cores, a 6-core Arm CPU, and a deep learning accelerator to run object detection, tracking, and real-time decision-making directly on your robot or device.
- Proven Multi-Camera Depth Performance: Using ZED X GS cameras with the ZED SDK 5.0 NEURAL LIGHT depth model (1920x1200 resolution), the ZED Box Orin NX 8GB runs a single stereo camera at 30 fps with 28% GPU load, dual stereo cameras at 30 fps with 55% GPU load, and quad stereo cameras at 20 fps with 80% GPU load.*
- Easy to Mount: No drilling required. Simply mount it, plug in the connectors, and power up. With VESA, wall, and DIN-rail mounting options, the ZED Box Orin NX 8GB can be reliably and securely installed in nearly any environment.
- Multiple Power Supply Options: Power the unit via PoE+ (up to 25.5W) or an external DC-IN supply (60W, 12-19V). PoE+ lets a single Ethernet cable carry both data and power, enabling deployment anywhere Ethernet cabling reaches, for long-range and outdoor coverage.
- Optional GPS RTK: Add a u-blox ZED-F9P GNSS receiver (GPS, Galileo, BeiDou, and GLONASS) for centimeter-level positioning in outdoor robotics and mapping applications.
- Ready-to-Use Out of the Box: Comes set up with the NVIDIA JetPack SDK, including CUDA, TensorRT, cuDNN, OpenCV, VisionWorks, and Docker, so you can start developing right away.
- 1-Year InDro Warranty & Support
*Measured with the Jetson™ in a non-MAXN SUPER power mode. Performance may vary by configuration.
ZED BOX ORIN NX 8GB SPECIFICATIONS
| Key Specifications | |
| Processor | NVIDIA® Jetson™ Orin NX 8GB |
| AI Performance | 70 TOPS |
| GPU | 1,024-core NVIDIA® Ampere architecture GPU with 32 Tensor Cores @ 765 MHz |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU @ 2GHz (1.5MB L2 + 4MB L3) |
| DL Accelerator | 1x NVDLA v2 @ 614 MHz |
| Memory | 8 GB 128-bit LPDDR5 102.4 GB/s |
| Storage | 1x 256GB / 1TB / 2TB M.2 NVMe SSD |
| Carrier Board | Custom NVIDIA® Jetson™ Carrier Board |
| Connectivity & Interfaces | |
| Camera & USB I/Os |
4x GMSL2 FAKRA-Z Connectors (for up to 4x ZED X GS / ZED X Mini GS / ZED X One GS cameras) 3x USB 3.0 Type-A 1x Micro USB 2.0 Type-B (for system flashing & OTG) |
| Network | 1x 10/100/1000 Base-T Ethernet RJ45 |
| Wireless (WiFi) | WiFi 6 with 1x Intel AX210 Module (mounted on M.2 Key-E 2230 socket) and 2x 2.4/5GHz WiFi antennas |
| GNSS / GPS (Optional) | 1x GPS RTK U-Blox ZED-F9P (supports Galileo, GPS, BeiDou, and GLONASS) |
| Display Output | 1x HDMI 2.1 |
| Power & Operating Modes | |
| Power Supply | PoE+ (25.5W) or DC-IN (60W, 12-19V) via DC barrel jack with a locking ring |
| Jetson Power Modes | 10W | 15W | 20W |
| Video Processing | |
| Video Encode | 1x 4K60 (H.265) | 3x 4K30 (H.265) | 6x 1080p60 (H.265) | 12x 1080p30 (H.265) |
| Video Decode | 1x 8K30 (H.265) | 2x 4K60 (H.265) | 4x 4K30 (H.265) | 9x 1080p60 (H.265) | 18x 1080p30 (H.265) |
| Mechanical & Environmental | |
| Dimensions | 118 x 92 x 71 mm (4.6 x 3.6 x 2.7 inches) LxWxH |
| Weight | 700 g (1.5 lb) |
| Case | Industrial black aluminum case passively cooled (fanless design) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| Mounting Options | 4x Mounting holes VESA-75 Compatible M4x0.7, Wall brackets provided, DIN-rail mounting possible |
| Certifications | CE |
| Software | |
| Operating System | Jetson Linux (supplied with NVIDIA JetPack) |
ZED BOX ORIN NX 8GB RELEVANT RESOURCES
ZED Box Orin NX Series Datasheet PDF
NVIDIA® Jetson™ Orin NX 8GB Module
