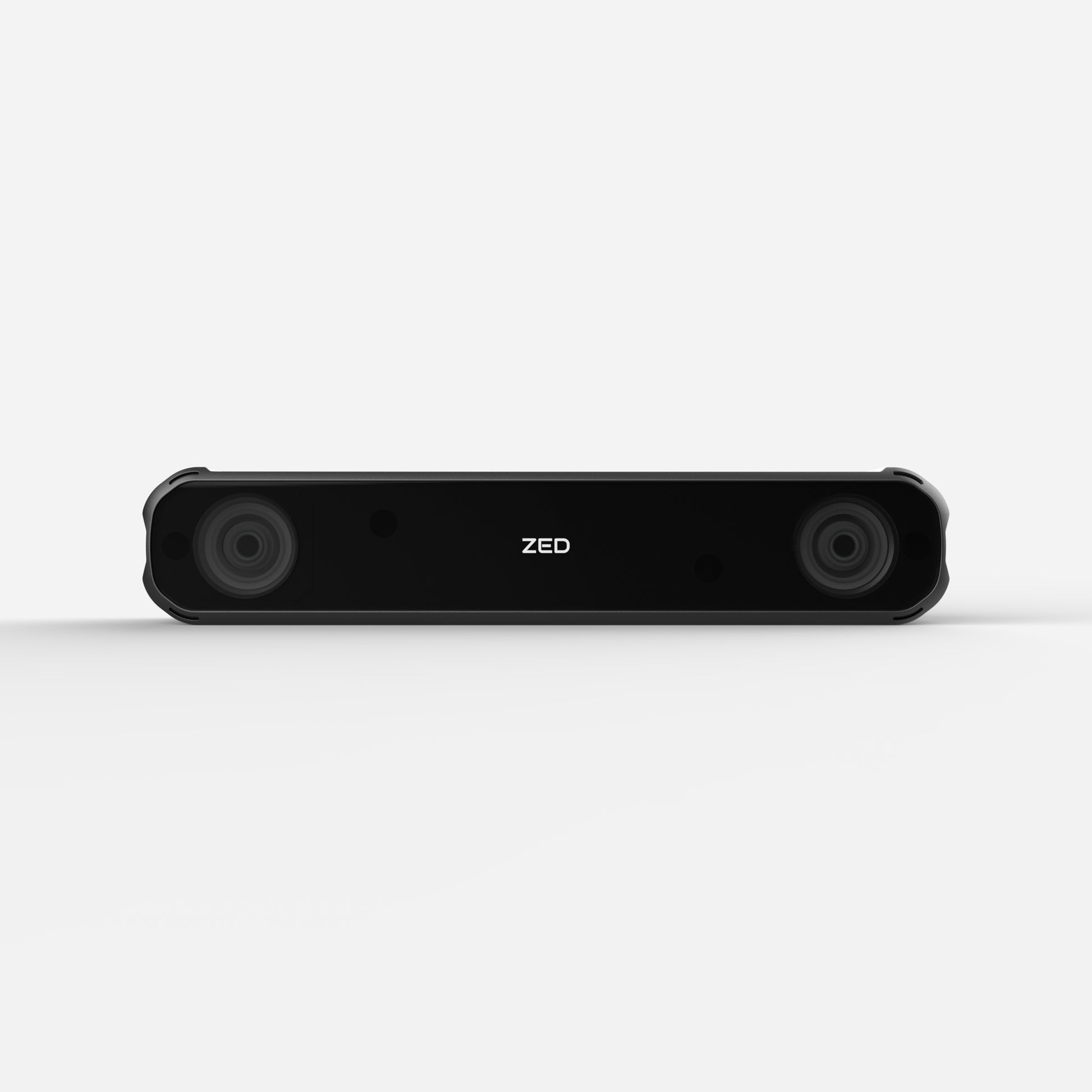

ZED X Camera

$859.00 USD

Sale Sold out

Polarizer No Polarizer With Polarizer

Lens Focal Length 2.2mm 4mm

Quantity

OVERVIEW:

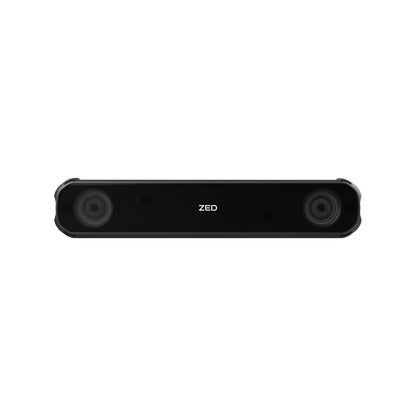

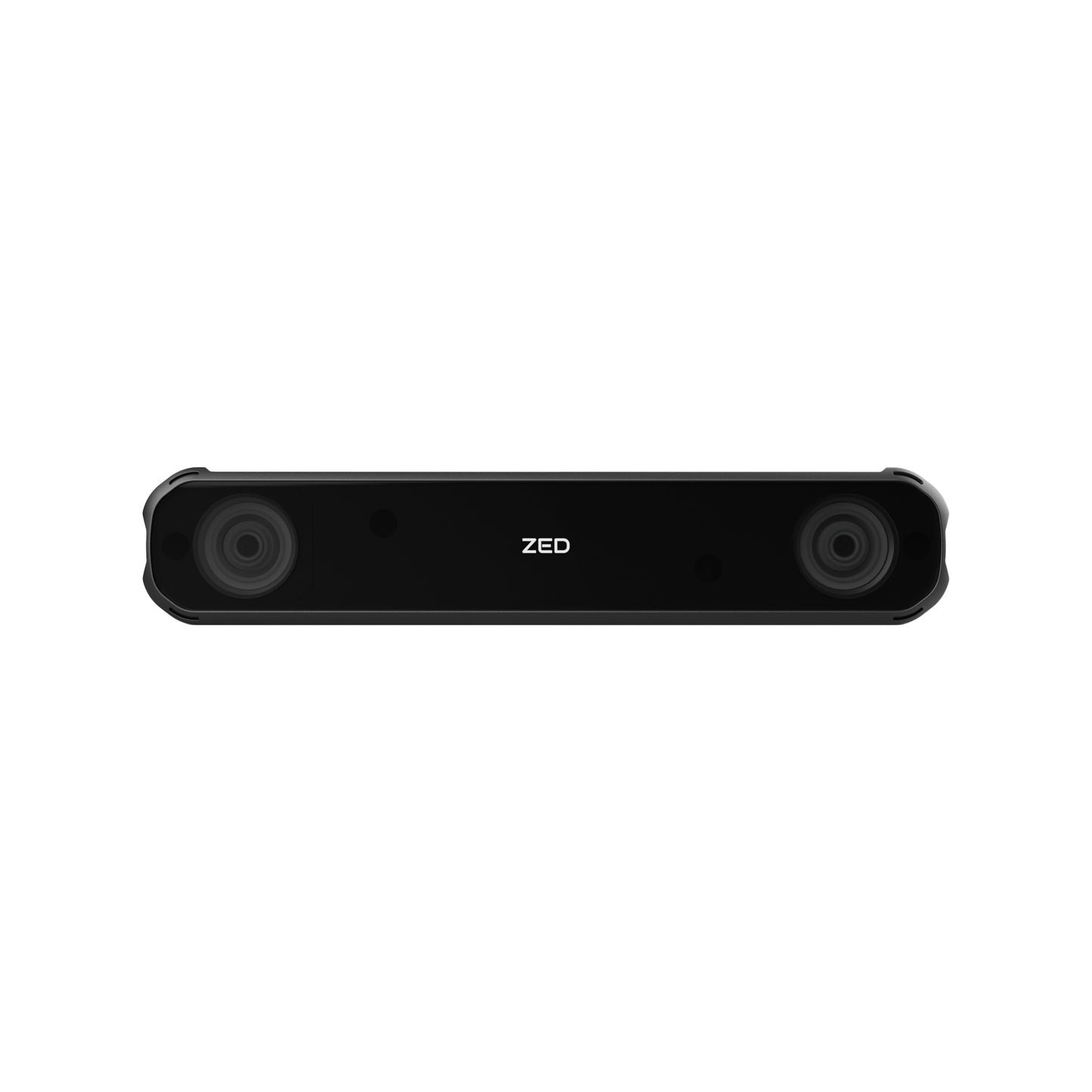

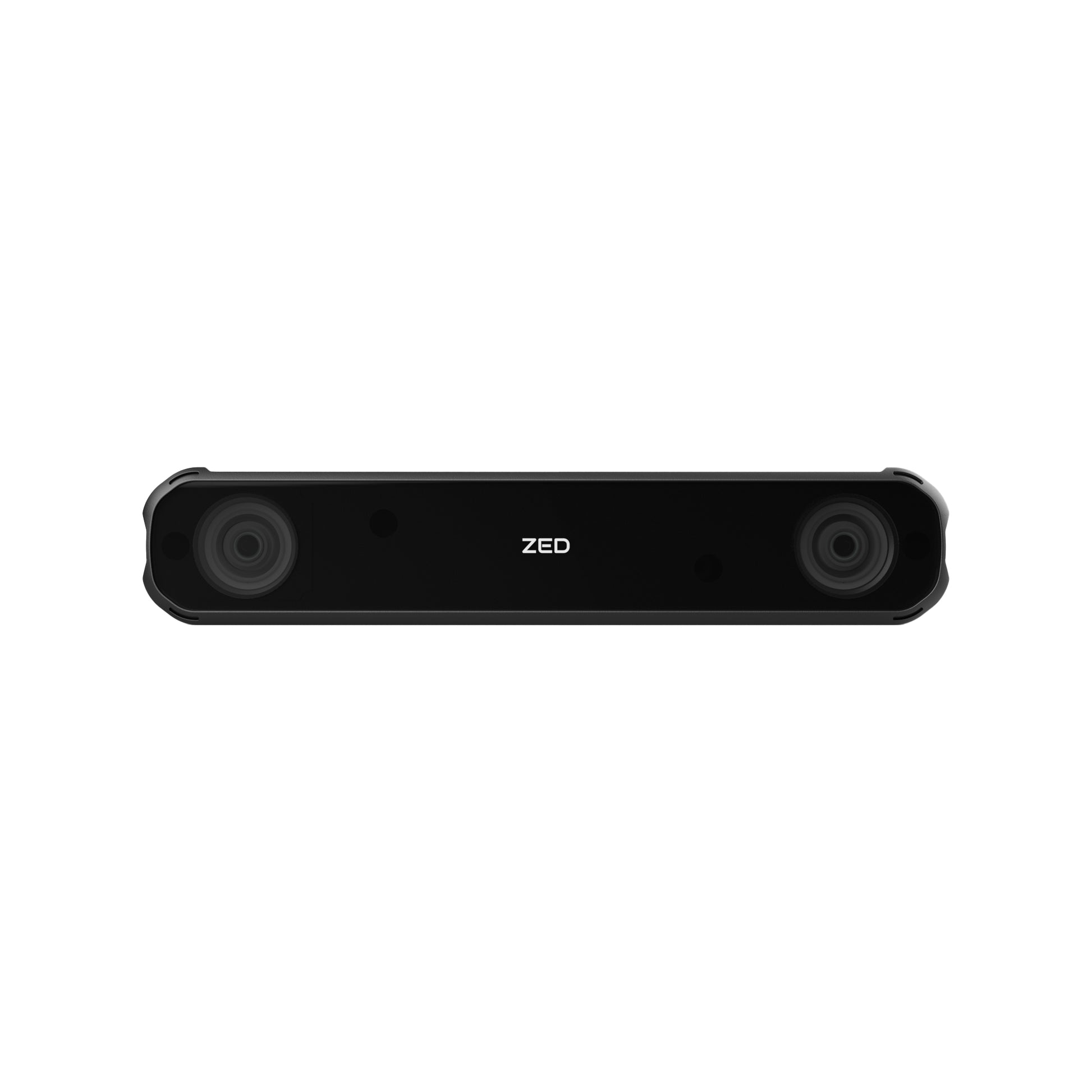

The ZED X stereo camera combines powerful hardware and intelligent software to create an unrivalled solution for obstacle detection, navigation and process automation. Built to function efficiently in harsh environments, the IP67-rated ZED X and ZED X Mini stereo cameras’ robust aluminium body can withstand outdoor conditions, making it ideal for robots deployed in various sectors including agriculture, manufacturing, logistics.

PRODUCT FEATURES:

Wide-Angle 3D AI Camera: Combine long-range depth perception with AI to perceive your environment in 3D with up to a 120° wide-angle field of view.

IP67-rated Enclosure: Resistant to dust, water and humidity, the new ZED X is designed for outdoor applications and challenging medical, industrial, agricultural environments, and more.

Multi-camera Synchronization: Hardware synchronization for multiple connected cameras at frame-level within 100 microseconds. Capture RGB and depth images of the same scene with multiple cameras all triggered at the same time.

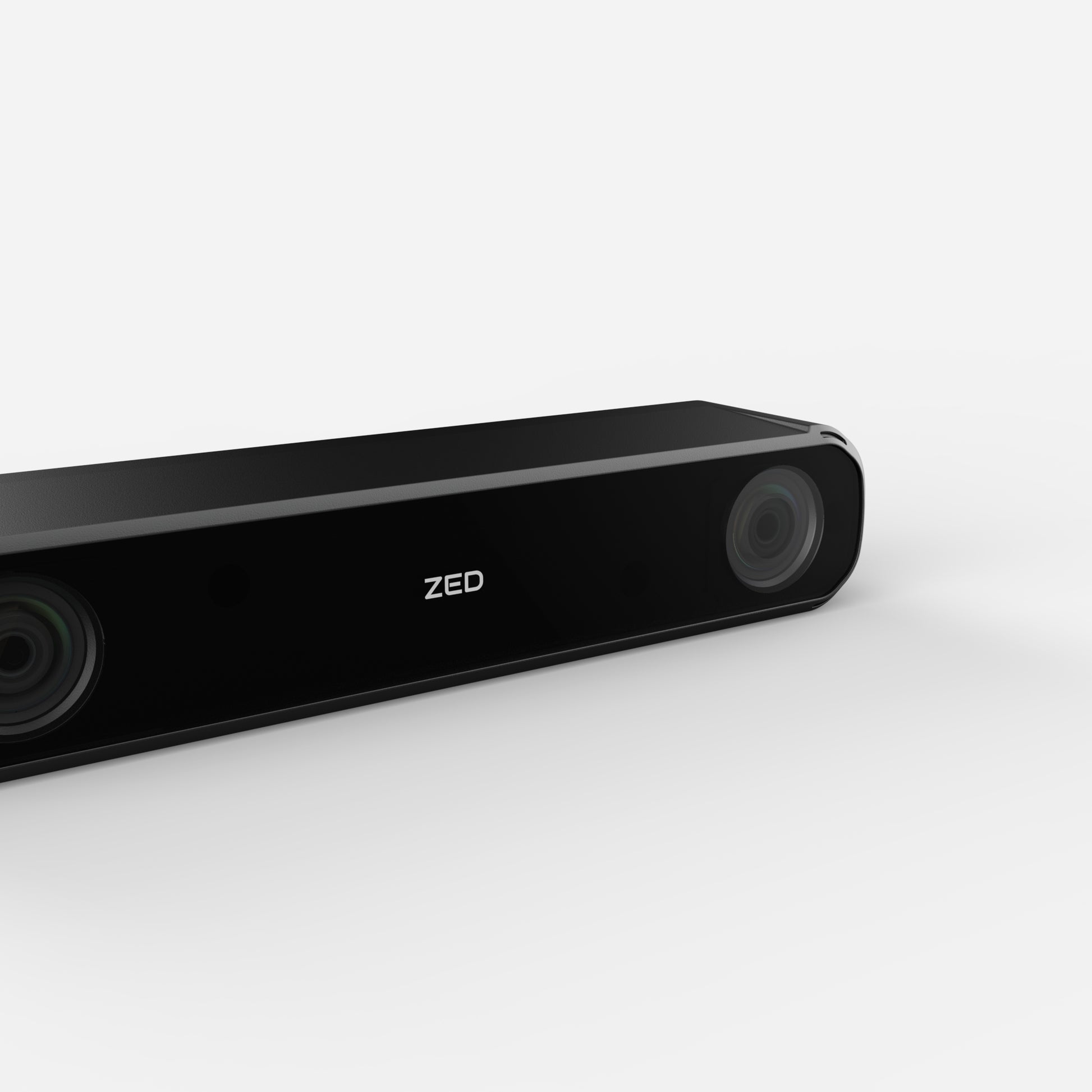

High Quality Lenses: Wide-angle 9-element all-glass dual lens with optically corrected distortion, and optional polarizing filter.

High-performance IMU: The all-new IMU combines a 16-bit triaxial accelerometer and gyroscope with vibration resistance, ultra low noise and bias for exceptional motion tracking

Secure GMSL2 Connection: GMSL2 connectivity is ideal for robotics. Transmit video without EMI and high data rate through a lockable interface to a Jetson Orin over a distance of up to 15M with low latency.

TECHNICAL SPECIFICATIONS:

Output Resolution	Side by Side 1200p: 2x (1920x1200) @60fps 1080p: 2x (1920x1080) @60fps 600p: 2x (960x600) @120fps
Interface	GMSL2
Baseline	12cm (4.72 in)
Image Sensors	Size: 1/2.6” sensors Resolution: Dual 2.3M pixels sensors with 3-micron pixels Format: 16/10 Shutter Sync: Electronic Synchronized Global Shutter
Motion Sensors	400Hz 16-bits Accelerometer (up to 12g) 400Hz 16-bits Gyroscope (up to 1000°/s)
Warranty	2-year hardware warranty

PHYSICAL SPECIFICATIONS:

Dimensions	163.4 x 31.8 x 36.7mm (6.44 x 1.26 x 1.45”)
Weight	239g (0.53lb)

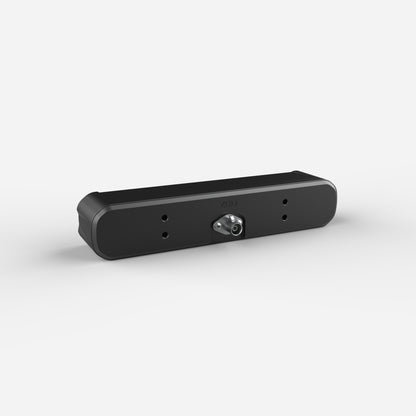

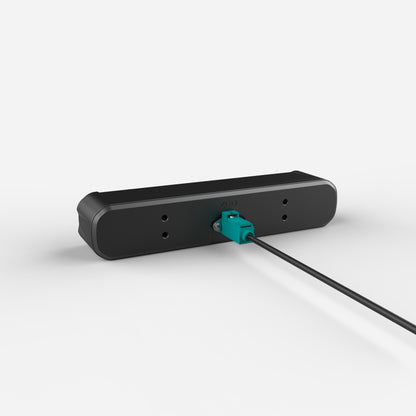

Connector	Serial Coax GMSL2 connector - FAKRA Z type

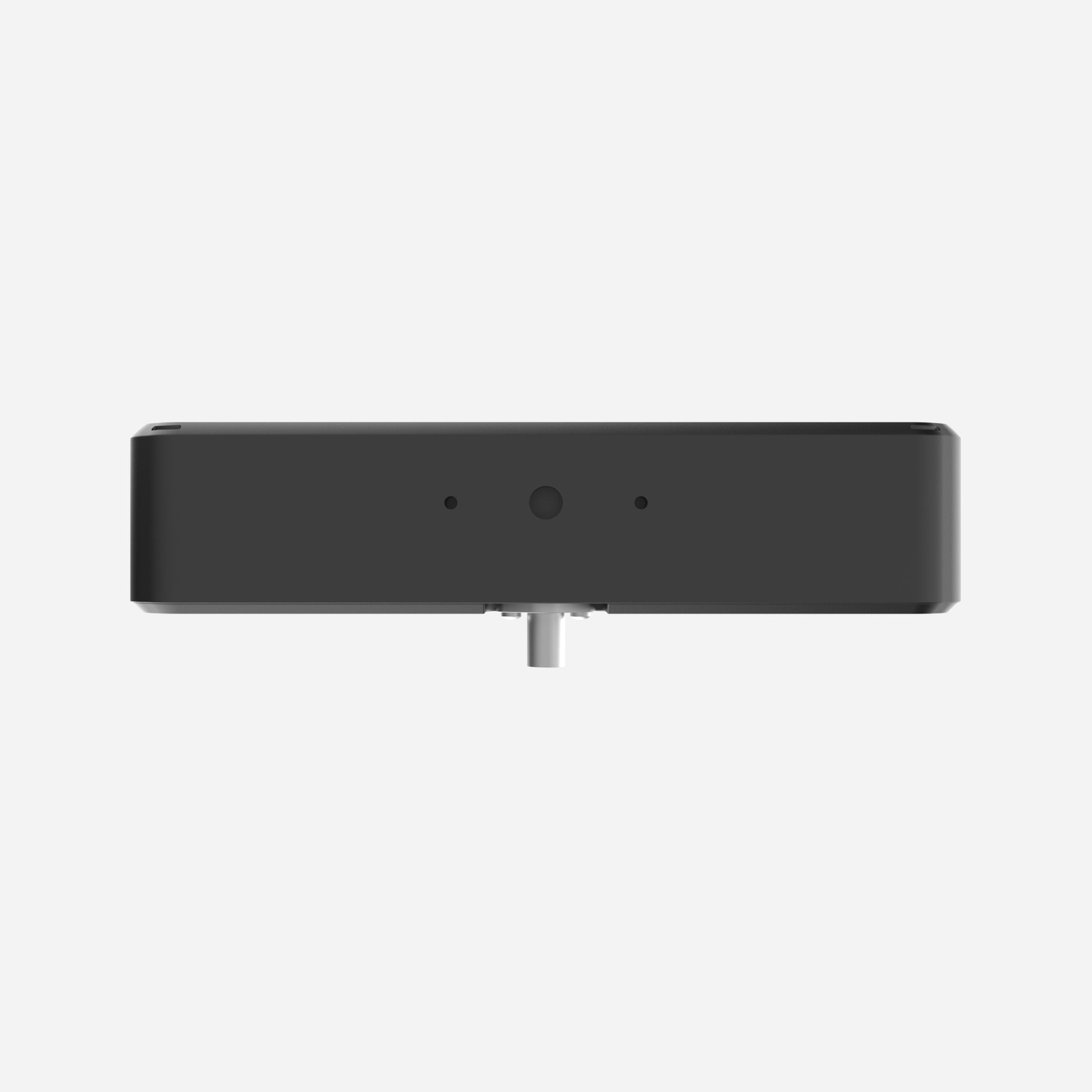

Mounting Options	1/4”-20 UNC thread mount 2x M3 threads (bottom) 4x M4 threads (back)
Operating Temperature	-20°C to +55°C (-4°F to 131°F)
Power	Power via GMSL2 (PoC)
