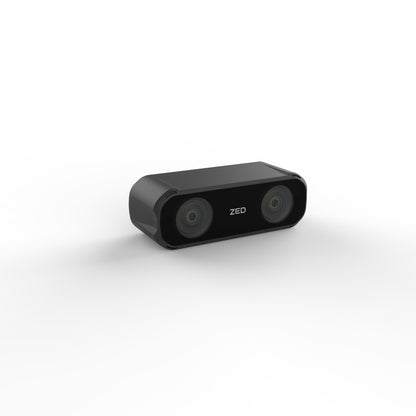

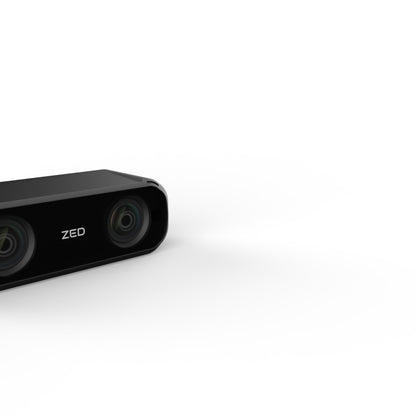

ZED X Mini Camera

$859.00 USD

Sale Sold out

Polarizer No Polarizer With Polarizer

Lens Focal Length 2.2mm 4mm

Quantity

OVERVIEW:

The ZED X Mini is the ideal depth AI camera for AMRs, pick and place and manipulation tasks. Its compact form factor and industrial connectivity allow for seamless integration into any robotics and spatial perception applications.

PRODUCT FEATURES:

Short-range Depth Camera
Color Global Shutter at 1200p 60fps
Neural Depth Gen2
High accuracy depth perception from 0.1 to 8m (2.2mm), 0.15 to 12m (4mm)
High-performance vibration-resistant IMU
Secure GMSL2 connection
View Cable Guide
Industrial-grade IP67 enclosure
External hardware synchronization with multiple ZED X cameras
Compatible with ZED Box and GMSL2 Capture Cards
Compact form factor

TECHNICAL SPECIFICATIONS:

Output Resolution	Side by Side 1200p: 2x (1920x1200) @60fps 1080p: 2x (1920x1080) @60fps 600p: 2x (960x600) @120fps
Interface	GMSL2
Baseline	5cm (1.97 in)
Image Sensors	Size: 1/2.6” sensors Resolution: Dual 2.3M pixels sensors with 3-micron pixels Format: 16/10 Shutter Sync: Electronic Synchronized Global Shutter
Motion Sensors	400Hz 16-bits Accelerometer (up to 12g) 400Hz 16-bits Gyroscope (up to 1000°/s)
Warranty	2-year hardware warranty

PHYSICAL SPECIFICATIONS:

Dimensions	93.6 x 31.8 x 36.7mm (3.69 x 1.26 x 1.45”)
Weight	151g (0.34lb)

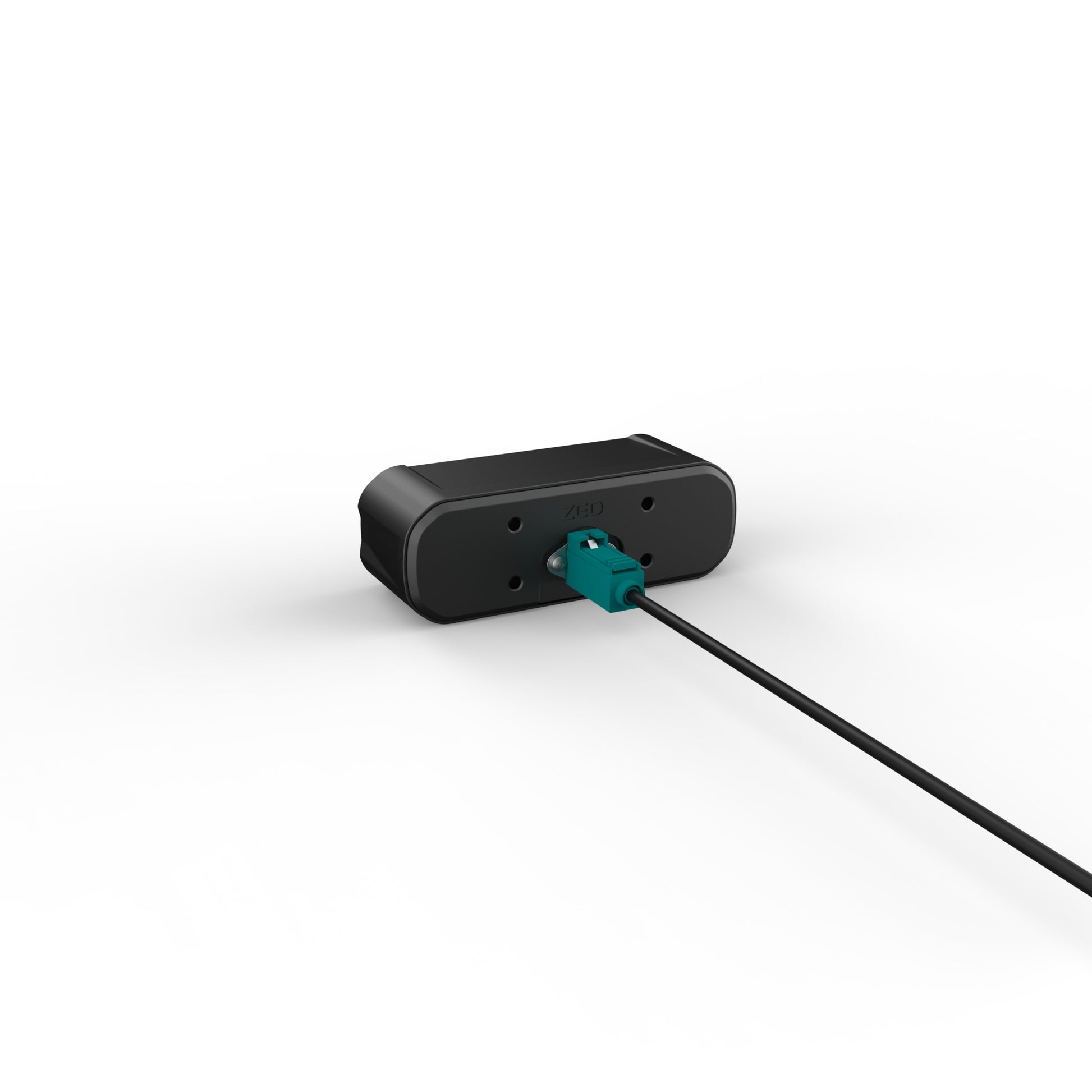

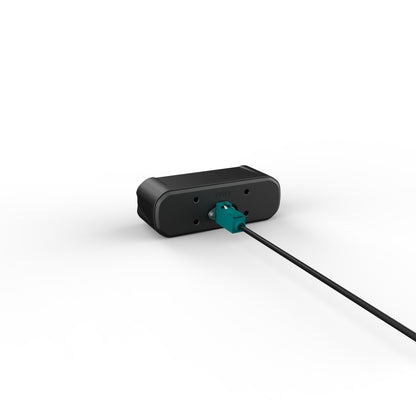

Connector	Serial Coax GMSL2 connector - FAKRA Z type

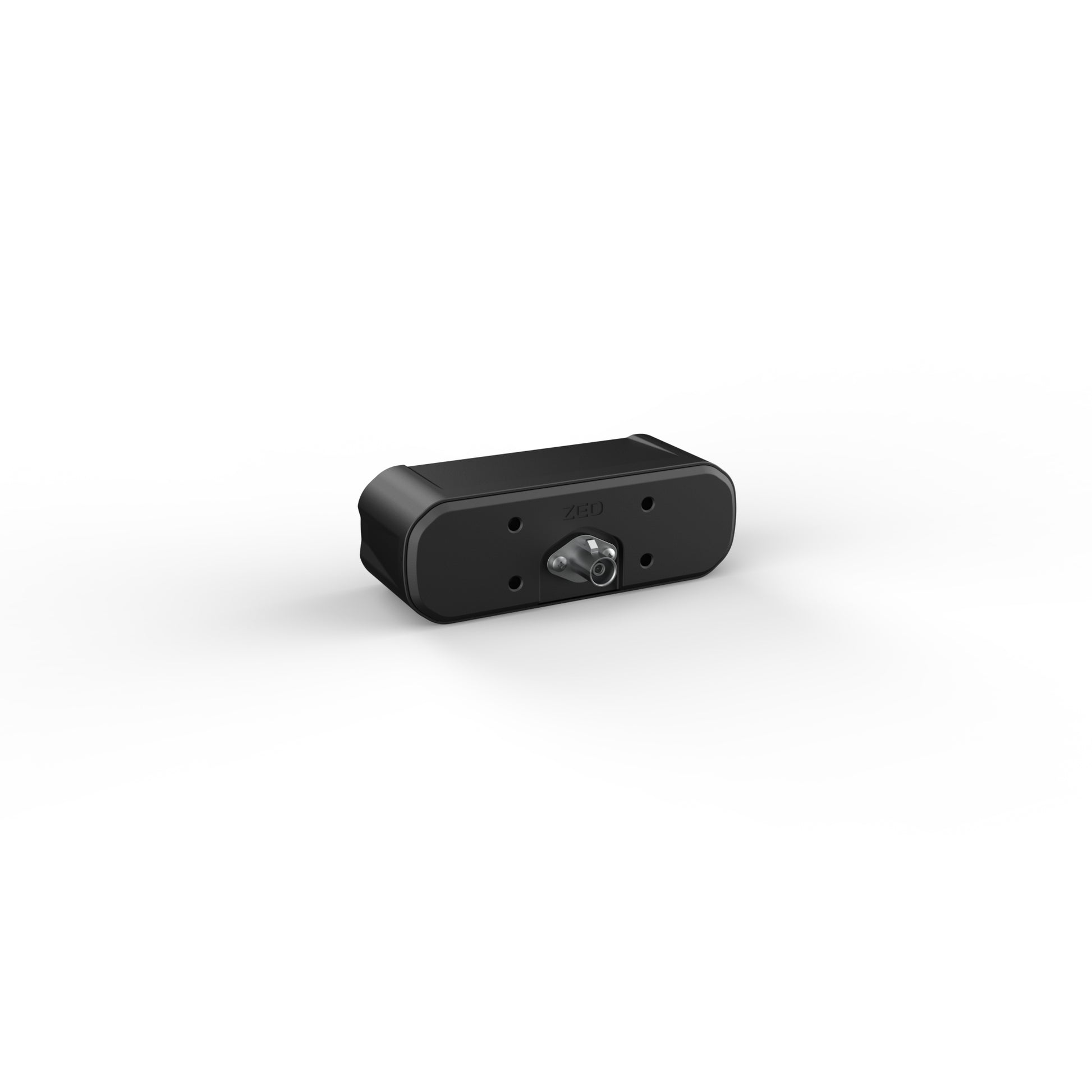

Mounting Options	1/4”-20 UNC thread mount 2x M3 threads (bottom) 4x M4 threads (back)
Operating Temperature	-20°C to +55°C (-4°F to 131°F)
Power	Power via GMSL2 (PoC)
